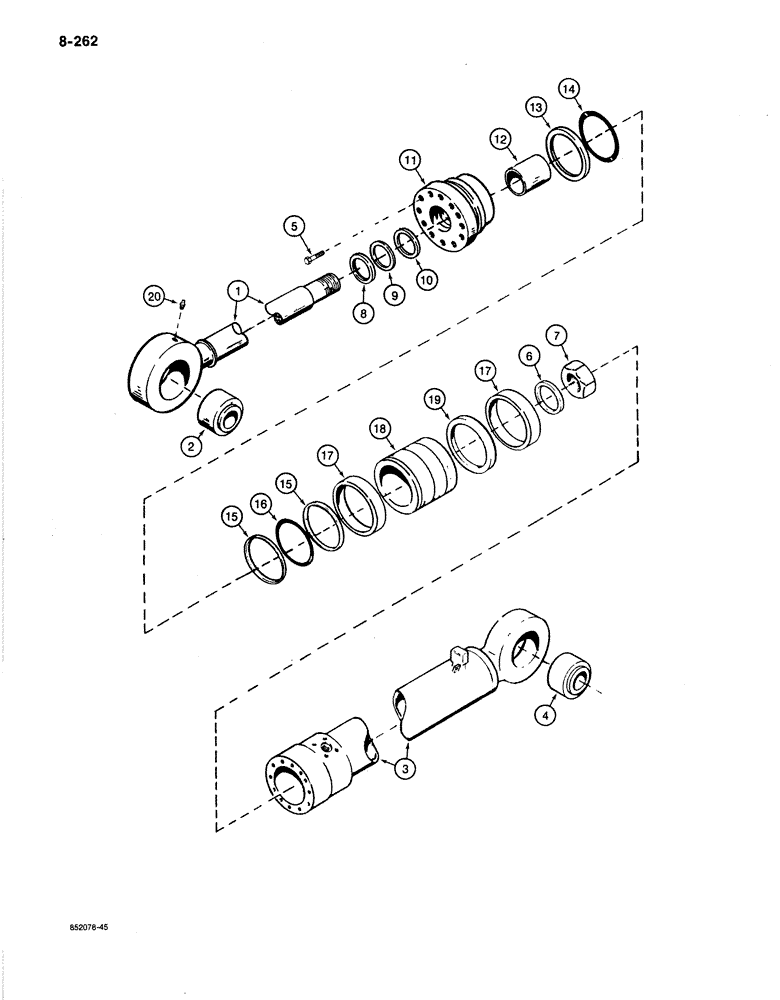

Запчасти Case 1080B (8-262) - ARM CYLINDER (08) - HYDRAULICS

S956692

CYLINDER

ASSEMBLY - 6-1/2" (165 mm) ID x 48-1/2" (1232 mm) stroke, arm, Includes: Refs. 1-20

1шт.

1

S516131

ROD ASSY.

ROD - piston, 4" (102 mm) diameter, Includes: Ref. 2

1шт.

2

S241676

BUSHING

- self-aligning

1шт.

3

S617943

CYLINDER,65.2" L

TUBE - cylinder, Includes: Ref. 4

1шт.

4

S241676

BUSHING

- self-aligning

1шт.

5

28-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 8

- hex, 5/8" -18 NF x 2-1/4", grade 8

12шт.

6

S109535

WASHER

- special

1шт.

7

S232681

NUT

- hex, self-locking, special

1шт.

G107597

GLAND

ASSEMBLY - cylinder, Includes: Refs. 8-14

1шт.

8

G107599

WIPER

- piston rod, outer

1шт.

Part of Seal Kit, P/N G109250

1шт.

9

G109056

SEAL

- U-cup, piston rod, wide

1шт.

Part of Seal Kit, P/N G109250

1шт.

10

G109031

SEAL

SEAL - piston rod, narrow

1шт.

Part of Seal Kit, P/N G109250

1шт.

11

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

12

S234898

NYLON BEARING,101.6mm ID x 111mm OD x 75.95mm L

BUSHING - center

1шт.

Part of Seal Kit, P/N G109250

1шт.

13

G109033

SEAL

RING - backup, gland O-ring

1шт.

Part of Seal Kit, P/N G109250

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Seal Kit, P/N G109250

1шт.

15

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Piston, Inner O-Ring

2шт.

Part of Seal Kit, P/N G109250

1шт.

16

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- piston, inner

1шт.

Part of Seal Kit, P/N G109250

1шт.

17

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

RING, WEAR, Piston

2шт.

Part of Seal Kit, P/N G109250

1шт.

18

S511568

PISTON

- cylinder

1шт.

19

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL - piston

1шт.

Part of Seal Kit, P/N G109250

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G109250

KIT

- seal, includes Refs. 8, 9, 10, 12, 13, 14, 15, 16, 17 and 19

1шт.
