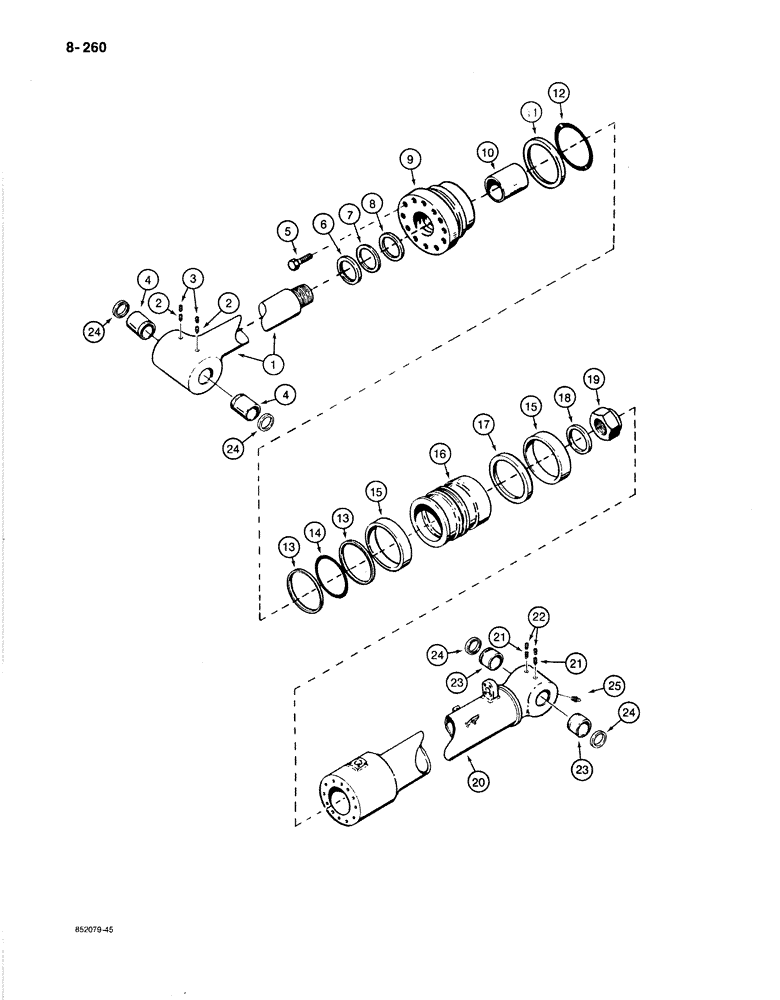

Запчасти Case 1080B (8-260) - BOOM CYLINDER (08) - HYDRAULICS

S956693

CYLINDER

ASSEMBLY - 6-1/2" (165 mm) ID x 53-3/4" (1365 mm) stroke, boom, Includes: Refs. 1-25

1шт.

S516133

ROD ASSY.

ROD ASSEMBLY - piston, 4" (102 mm) diameter, Includes: Refs. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

2

178-56

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - set, hex socket, 3/8" -16 NC x 5/8", cone point, inner

2шт.

3

83-610

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - set, hex socket, 3/8" -16 NC x 5/8", cup point, outer

2шт.

4

S241666

BUSHING

- piston rod

2шт.

5

28-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 8

- hex head, 5/8" -18 NF x 2-1/4", grade 8

12шт.

G107597

GLAND

ASSEMBLY - cylinder, Includes: Refs. 6-12

1шт.

6

G107599

WIPER

- piston rod, outer

1шт.

Part of Seal Kit, P/N G109250

1шт.

7

G109056

SEAL

- U-cup, piston rod, wide

1шт.

Part of Seal Kit, P/N G109250

1шт.

8

G109031

SEAL

SEAL - piston rod, narrow

1шт.

Part of Seal Kit, P/N G109250

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

10

S234898

NYLON BEARING,101.6mm ID x 111mm OD x 75.95mm L

BUSHING - center

1шт.

Part of Seal Kit, P/N G109250

1шт.

11

G109033

SEAL

RING - backup, gland O-ring

1шт.

Part of Seal Kit, P/N G109250

1шт.

12

G105104

O-RING,-364, 70 Duro, 6.725" ID x .210" Thk

- gland

1шт.

Part of Seal Kit, P/N G109250

1шт.

13

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Piston, Inner O-Ring

2шт.

Part of Seal Kit, P/N G109250

1шт.

14

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- piston, inner

1шт.

Part of Seal Kit, P/N G109250

1шт.

15

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

RING, WEAR, Piston

2шт.

Part of Seal Kit, P/N G109250

1шт.

16

S511568

PISTON

- cylinder

1шт.

17

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL - piston

1шт.

Part of Seal Kit, P/N G109250

1шт.

18

S109535

WASHER

- special

1шт.

19

S232681

NUT

- hex, self locking, special

1шт.

20

S617950

CYLINDER,67.95" L

TUBE - cylinder, Includes: Refs. 21-23

1шт.

21

178-56

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - set, hex socket, 3/8" -16 NC x 5/8", cone point, inner

2шт.

22

83-610

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - set, hex socket, 3/8" -16 NC x 5/8", cone point, outer

2шт.

23

S241666

BUSHING

- tube

2шт.

24

S241665

SEAL

- grease

4шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT, replace with Ref. 25A

1шт.

25a

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Not shown 90º, 1/8" NPT x .84" lg

1шт.

G109250

KIT

- seal, includes Ref. 6, 7, 8, 10, 11, 12, 13, 14, 15 and 17

1шт.
