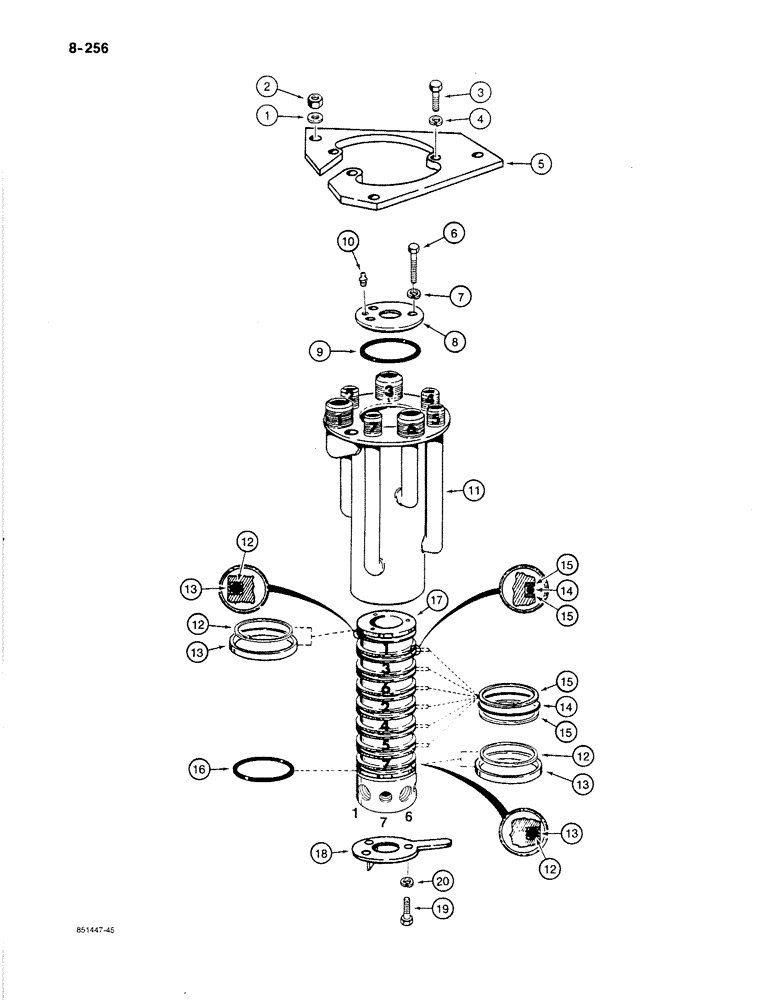

Запчасти Case 1080B (8-256) - SEVEN PORT SWIVEL AND RELATED PARTS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
195-104
WASHER,3/8"
- flat, 7/16", plated
3шт.
2
131-52
NUT,3/8"-16, GC
NUT - hex, self-locking, 3/8" -16 NC, plated
3шт.
3
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3шт.
4
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
5
S204101
PLATE
- mounting, seven port swivel
1шт.
S618820
LINK
SWIVEL ASSEMBLY - hydraulic, seven port, Includes: Refs. 6-17
1шт.
6
113-209
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
3шт.
7
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
8
S242702
CAP
- bearing
1шт.
9
S119791
SHIM
BEARING - cap
1шт.
PArt of Seal Kit, P/N S119402
1шт.
10
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8" NPT
1шт.
11
S618679
HOUSING
- swivel
1шт.
12
NSS
NOT SOLD SEPARAT
SEAL - swivel shaft, square section, now part of Ref. 13
2шт.
PArt of Seal Kit, P/N S119402
1шт.
13
S118683
SEAL
- two-piece, includes Ref. 12
2шт.
PArt of Seal Kit, P/N S119402
1шт.
14
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
- swivel shaft
6шт.
PArt of Seal Kit, P/N S119402
1шт.
15
S76928
WASHER
RING - backup, shaft O-ring
12шт.
PArt of Seal Kit, P/N S119402
1шт.
16
S76240
O-RING
- swivel shaft, bottom
1шт.
PArt of Seal Kit, P/N S119402
1шт.
17
S618821
SHAFT
- swivel
1шт.
18
S242467
PLATE
- mounting, inner swivel
1шт.
19
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
3шт.
20
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
3шт.
21
218-335
CAP,37 Degree, 1 1/16"-12
- hex, 1-1/16" - 12, used on top ports 4 and 5 on models without leveler, not shown
2шт.
22
86512512
PLUG,7/8" - 14 ORB
Used in bottom ports 4 and 5 on models without leveler, Not shown, Incl. Ref. 23 Hex Hd, 7/8"-14 ORB
2шт.
23
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk, Plug
1шт.
S119402
SEAL KIT
- seal, for S618820 swivel, includes Refs. 9, 12, 13, 14, 15 and 16
1шт.
