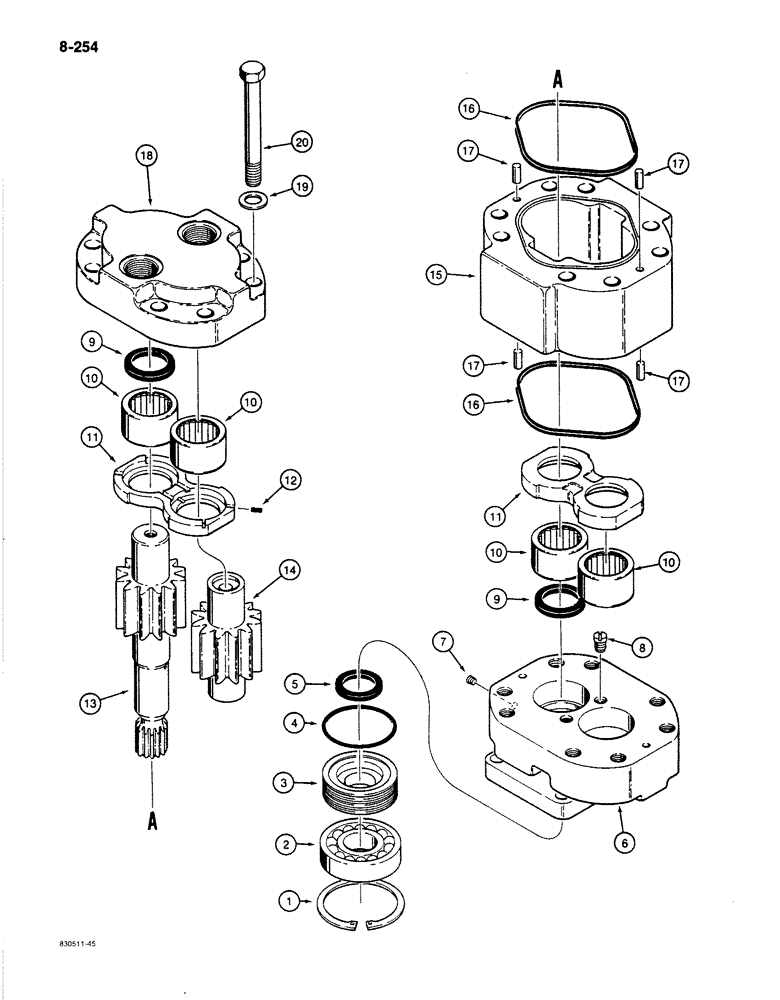

Запчасти Case 1080B (8-254) - SWING HYDRAULIC MOTOR (08) - HYDRAULICS

S515587

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, swing, Includes: Refs. 1-20

1шт.

1

NLS

NO LONGER SERVICED

3.156", Int, #315, ball brg

1шт.

2

S82767

BEARING

- ball, drive shaft

1шт.

3

W14025

RETAINER

- seal

1шт.

4

A57116

O-RING,2.612 mm ID x 2.818 mm OD x -H288 mm

- shaft seal

1шт.

5

S113220

SEAL

- drive shaft

1шт.

6

N8464

COVER

- gear, shaft end

1шт.

7

221-841

PLUG

- hex socket head, 1/4" NPT

1шт.

8

S61749

VALVE

- check, hydraulic motor

2шт.

9

S82765

SEALING RING

- bearing, at shaft end and closed end

2шт.

10

A16793

NEEDLE BEARING

BEARING - roller, at drive shaft and driven shaft

4шт.

11

S82770

PLATE

- thrust, gear

2шт.

12

W14886

PLUG

SEAL - pocket, thrust plate

12шт.

W14539

AXLE PIN

GEAR SET - hydraulic motor, matched set, Includes: Refs. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

SHAFT AND GEAR - drive

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

15

N9056

GEAR

HOUSING - drive and driven gear

1шт.

16

S82795

GASKET

- seal, gear housing to front and rear covers

2шт.

17

S114853

DOWEL

PIN - dowel, gear housing to front and rear covers

4шт.

18

N8465

COVER

- gear, closed end, at hydraulic ports

1шт.

19

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

- special, cover bolt

8шт.

20

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex head, 5/8" - 11 NC x 6"

8шт.
