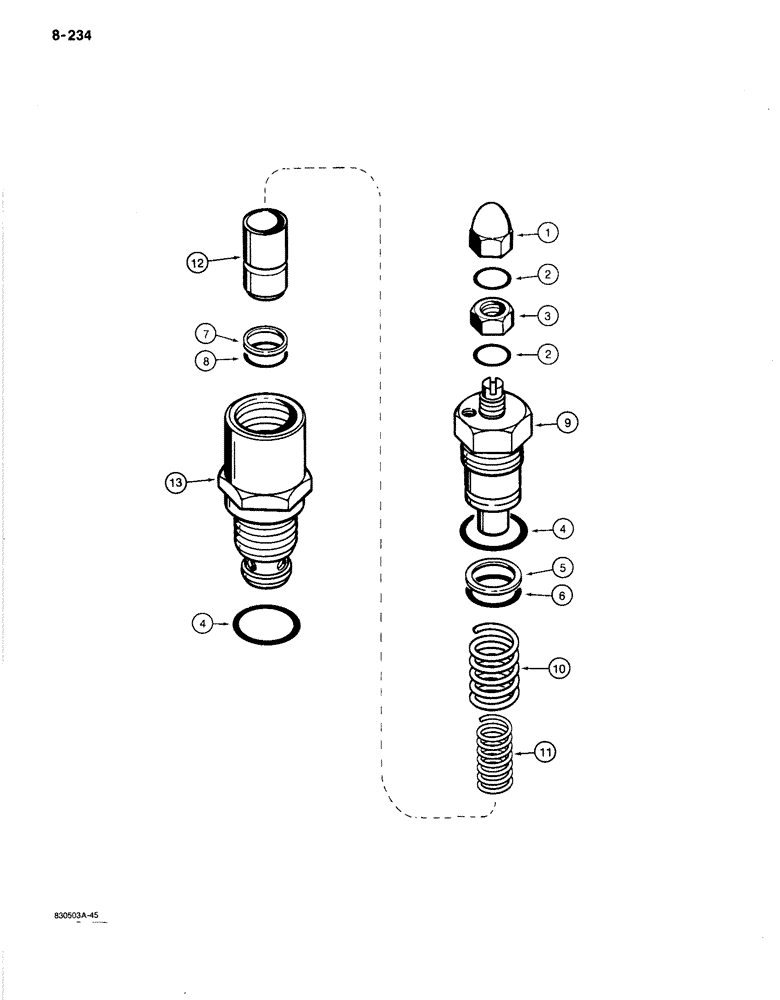

Запчасти Case 1080B (8-234) - MAIN RELIEF VALVES, FOUR SPOOL CONTROL VALVES (08) - HYDRAULICS

S242486

VALVE, PRESSURE RELI

VALVE ASSEMBLY - main relief, cartridge assembly, complete, Includes: KIT and Refs. 1-13

1шт.

S117194

SEAL KIT

- seal, main relief valve, Includes: Refs. 1-8

1шт.

1

S116073

CAP

NUT - dome, adjustable screw

1шт.

2

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- outer

2шт.

3

S116072

JAM NUT

- hex, jam, adjusting screw

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug to cartridge and cartridge to valve body

2шт.

5

S83071

BACK-UP RING

RING - backup, inner plug O-ring

1шт.

6

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- inner plug

1шт.

7

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

- backup, poppet O-ring

1шт.

8

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- poppet

1шт.

9

NSS

NOT SOLD SEPARAT

ADAPTER ASSEMBLY - valve, internal components are not serviced seperately

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - outer

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - inner

1шт.

12

NSS

NOT SOLD SEPARAT

POPPET - valve

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.
