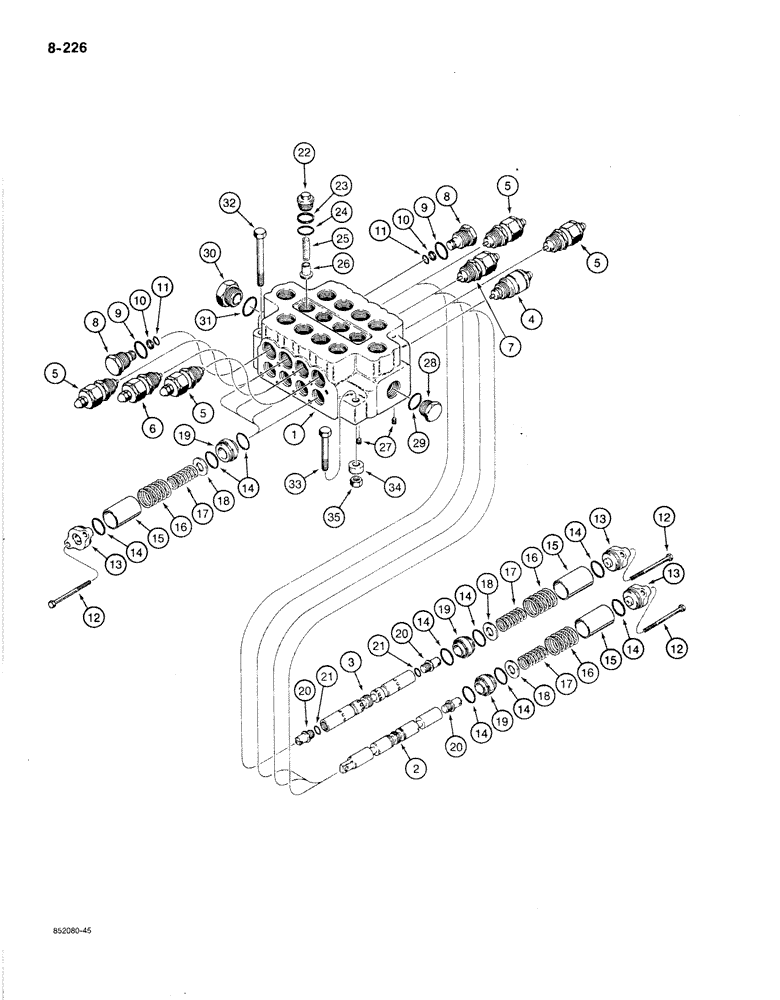

Запчасти Case 1080B (8-226) - FOUR SPOOL CONTROL VALVE - INSIDE (08) - HYDRAULICS

S516814

VALVE

ASSEMBLY - control, four spool, inside, Includes: Refs. 1-31

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - fast hoist, right-hand track, and arm culinder circuits

3шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - swing circuit

1шт.

4

S242486

VALVE, PRESSURE RELI

VALVE ASSEMBLY - main relief, set at 3150 psi, parts list Figure 8-234

1шт.

5

S616868

VALVE

ASSEMBLY - circuit relief, set at 2500 psi, parts list Figure 8-236

4шт.

6

S242484

VALVE, PRESSURE RELI

VALVE ASSEMBLY - circuit relief, set at 3300 psi, parts list Figure 8-236

1шт.

7

S242485

VALVE, PRESSURE RELI

VALVE ASSEMBLY - circuit relief, special R series, set at 3300 psi, parts list Figure 8-236

1шт.

S81690

PLUG

ASSEMBLY - fast hoist relief ports, Includes: Refs. 8-11

2шт.

8

NSS

NOT SOLD SEPARAT

PLUG - fast hoist circuit

1шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug, outer

1шт.

10

S93829

BACK-UP RING,0.609" ID x 0.052" Width

- backup, inner O-ring

1шт.

11

A64436

O-RING,0.549" ID x 0.755" OD

- inner

1шт.

12

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Spool end caps Hex, 3/8"-16 x 4", G5

16шт.

13

N8722

VALVE

CAP - spool ends

8шт.

14

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- cap, tube, and sleeve

24шт.

15

N8724

TUBE,1.628" ID x 1.812" OD x 2.603" L

- spool ends

8шт.

16

N13043

SPRING

- outer

8шт.

17

N13042

SPRING

- inner

8шт.

18

N8727

SPACER

- spring, support

8шт.

19

N8725

CAP

SLEEVE - spool

8шт.

20

N8721

END

SCREW - special, spool end

5шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Screw seal, Swing circuit spool only

2шт.

S105062

PLUG

ASSEMBLY - check valve, Includes: Refs. 22-24

4шт.

22

NSS

NOT SOLD SEPARAT

PLUG - check valve

1шт.

23

S105095

RING

- backup, check valve plug

1шт.

24

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- check valve plug

1шт.

25

S13715

SPRING

- check valve

4шт.

26

S13716

VALVE POPPET

POPPET - check valve

4шт.

27

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket head, 3/8" NPT

2шт.

28

273916

PLUG,Hex, 1-5/16" - 12 ORB

RH end port, Includes Ref. 29 Hex Hd, 1 5/16"-12 ORB

1шт.

29

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

30

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- hex head, left-hand end port, Includes: Ref. 31

1шт.

31

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Plug

1шт.

32

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

2шт.

33

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

34

S113313

SPACER

- valve mounting

3шт.
