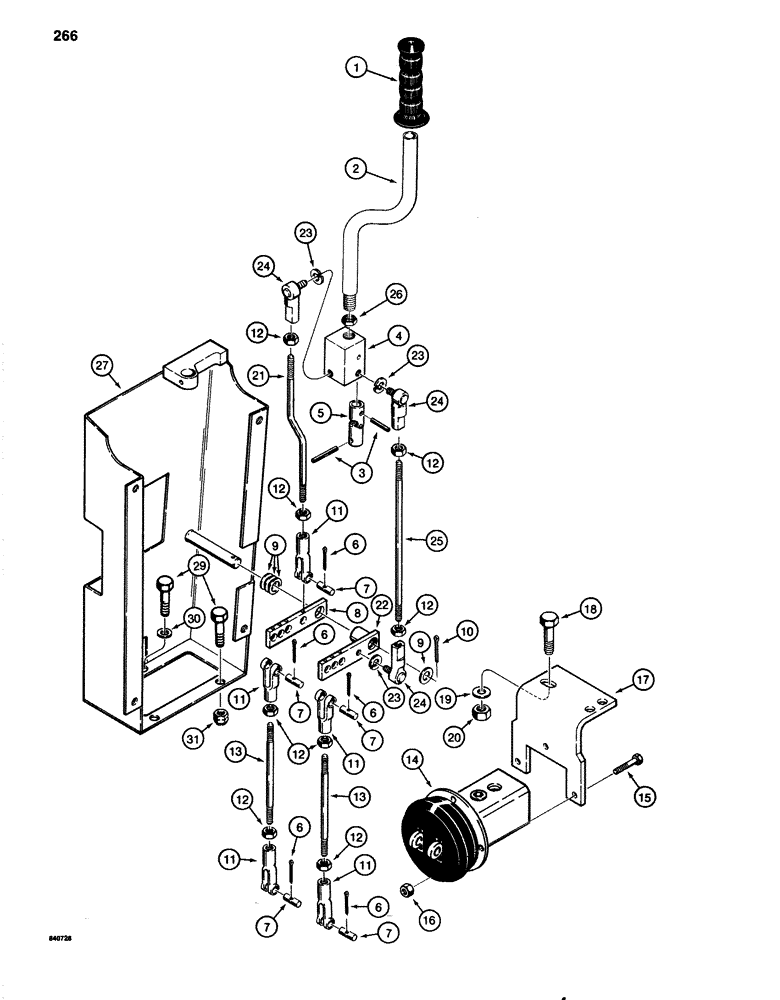

Запчасти Case 1080 (266) - HAND LEVER CONTROLS, MODELS WITH CLEVISES AT ROD ENDS (SEE ITEM 11) (35) - HYDRAULIC SYSTEMS

1

S119987

GRIP

- control lever

2шт.

1a

353-406

PLUG,Dome, .625" hole, Nylon

- nylon, 5/8" hole size, control lever grip, right-hand side only, not shown

1шт.

2

S514719

HANDLE

CONTROL LEVER - right-hand and left-hand, left-hand shown

2шт.

3

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Universal joint 1/4" x 1 1/4", Slotted

4шт.

4

S514718

BLOCK

- pivot, control lever

2шт.

5

S238874

SWIVEL CONNECTION

UNIVERSAL JOINT - control lever

2шт.

6

132-52

COTTER PIN,1/8" x 1 1/2"

PIN, Split (Cotter), 1/8" x 1 1/2"

10шт.

7

S105940

PIN,11.02mm OD x 22.23mm L

-, Serial Range: lever-rods

10шт.

8

S238601

LINKAGE

LINK - outer, without mounting sleeve

2шт.

9

195-33

WASHER,1/2"

- flat, 9/16"

1шт.

10

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), 1/8" x 1"

2шт.

11

S66383

YOKE

CLEVIS - lever adjustment

10шт.

12

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - hex, 3/8" - 24 NF

16шт.

13

S81828

ROD

- control lever, straight, lower

4шт.

14

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - hand lever, Figs. 232 & 233A for correct valve and component parts

2шт.

15

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

16

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

6шт.

17

S514596

BRACKET

- mounting, control valve

2шт.

18

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

19

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened, used at slot only

2шт.

20

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

6шт.

21

S236859

ROD

- control lever, bent, upper, outer

2шт.

22

S241999

LINK ASSY.

LINK - inner, with mounting sleeve

2шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

24

S236680

BALL JOINT

- control lever

6шт.

25

S91953

ROD

- control lever, straight, upper, inner

2шт.

26

425-1410

JAM NUT,Jam, 5/8"-11, G5

JAM NUT - hex, 5/8" - 11 NC

2шт.

27

S615728

SUPPORT

- hand control, left-hand

1шт.

28

S615677

SUPPORT

- hand control, right-hand, not shown

1шт.

29

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

30

195-104

WASHER,3/8"

- flat, , used at slots only 3/8"

3шт.

31

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

6шт.
