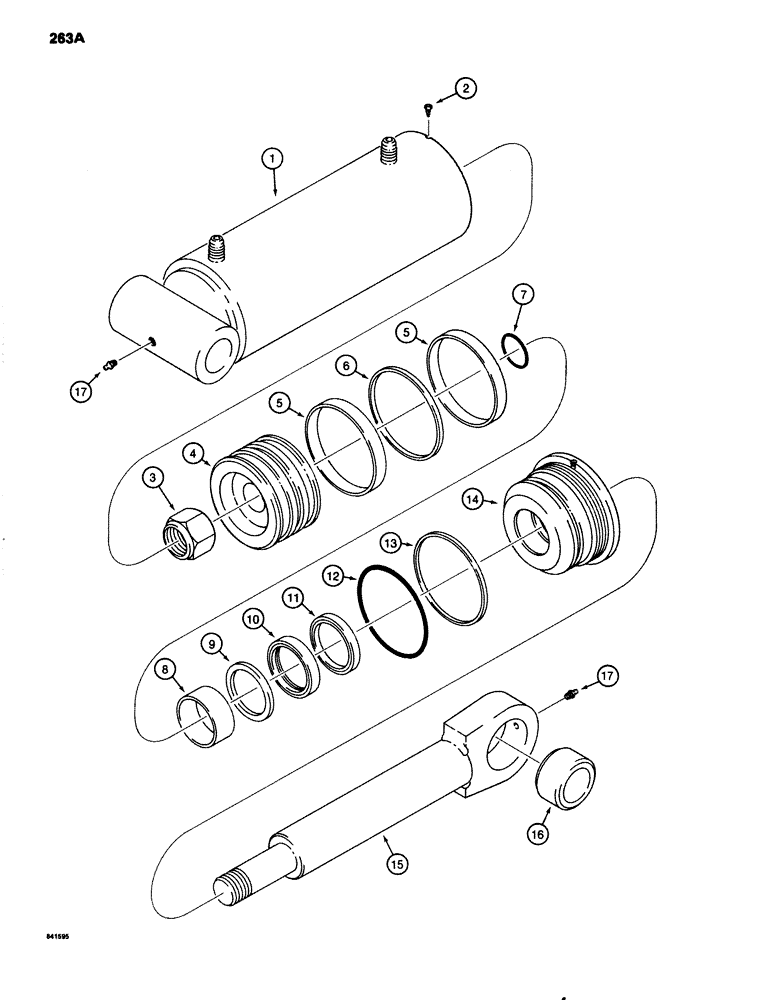

Запчасти Case 1080 (263A) - S618639 WRIST-O-TWIST CYLINDER, *WITH ONE PIECE PISTON (35) - HYDRAULIC SYSTEMS

S618639

CYLINDER

ASSEMBLY - wrist-o-twist, Includes: Ref.#s1 - 17

1шт.

1

S516775

CYLINDER,14.22, 2.465" L

TUBE - cylinder

1шт.

2

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 - 32NC x 3/8"

1шт.

3

131-490

LOCK NUT,1 1/4"-12

NUT - hex, self-locking, 1-1/4" - 12NF, special height

1шт.

4

S516773

PISTON

- cylinder

1шт.

5

S120057

RING

WEAR RING - piston

2шт.

6

S120045

SEAL

- piston

1шт.

7

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- piston to rod seal

1шт.

8

S120058

BEARING LINER

BUSHING - gland (Replaces G120058)

1шт.

9

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

10

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- piston rod, wide

1шт.

11

S40025

WIPER SEAL

WIPER - piston rod, outer

1шт.

12

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

- gland

1шт.

13

A41165

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

BACKUP RING - gland-o-ring

1шт.

14

S516774

GLAND

- cylinder

1шт.

15

S206996

PISTON ROD

ROD ASSEMBLY - piston, Includes: Ref.#16

1шт.

16

S202071

BUSHING

- piston rod

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - staight, 1/8" NPT

2шт.
