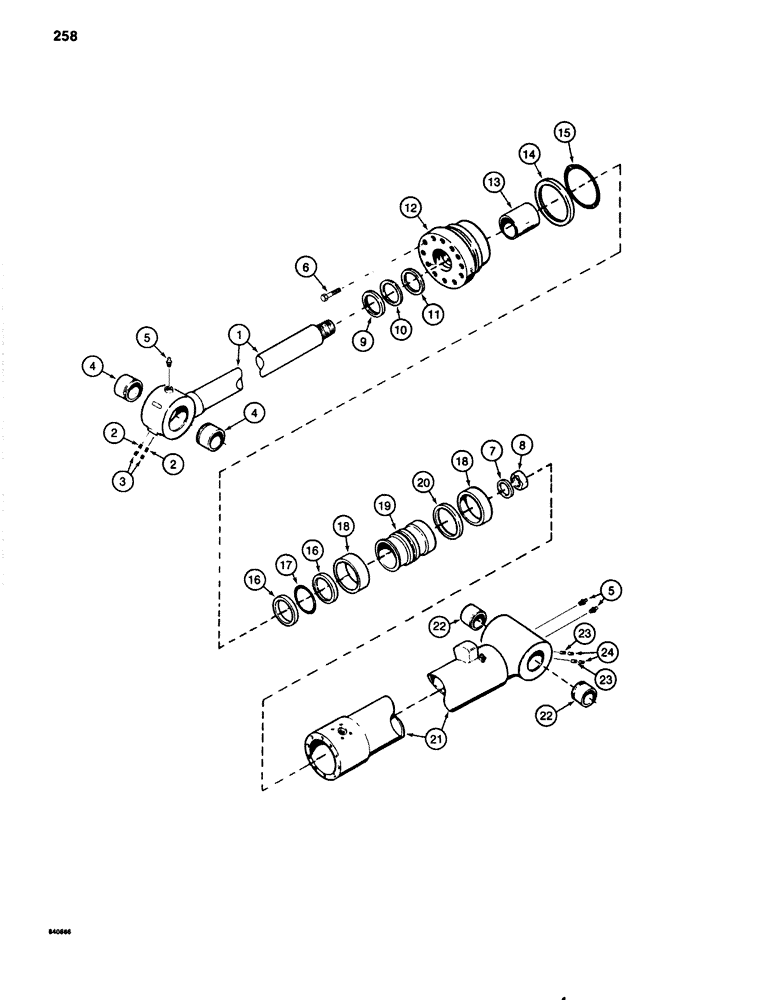

Запчасти Case 1080 (258) - TOOL CYLINDER (35) - HYDRAULIC SYSTEMS

G105176

CYLINDER

ASSEMBLY - tool 5-1/2" (140 mm) ID x 36-5/16" (922 mm) stroke, Includes: Ref.#s1 - 24

1шт.

1

S511753

ROD ASSY.

ROD - piston, 3-1/2" (89 mm) diameter, Includes: Ref.#2 - 4

1шт.

2

178-56

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

- hex socket, 3/8" - 16 NC x 5/8", cone point, inner

2шт.

3

83-610

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

- hex socket, 3/8" -16 NC x 5/8", cup point, outer

2шт.

4

S234901

BUSHING

- piston rod

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - staight, 1/8" NPT

3шт.

6

28-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 8

- hex head, 5/8" - 18 NF x 2-1/4", grade 8

10шт.

7

G32653

WASHER

- special

1шт.

8

131-76

LOCK NUT,2"-12

NUT - hex, self-locking, 2" - 12 NF

1шт.

G105190

GLAND

ASSEMBLY - cylinder, Includes: Ref.#s9 - 15

1шт.

9

S92653

WIPER

- piston rod, outer

1шт.

Part of Seal Kit, P/N G105297

1шт.

10

G109055

SEAL,88.95mm ID x 101.73mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit, P/N G105297

1шт.

11

G109030

SEAL,88.32mm ID x 104.44mm OD x 4.9mm Thk

- piston rod, narrow

1шт.

Part of Seal Kit, P/N G105297

1шт.

12

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

13

S111813

SLEEVE ASSY

BUSHING - center

1шт.

Part of Seal Kit, P/N G105297

1шт.

14

G109034

BACK-UP RING,135.94mm ID x 145.08mm OD x 1.93mm Thk

BACKUP-RING - Gland O-ring

1шт.

Part of Seal Kit, P/N G105297

1шт.

15

G105183

O-RING,0.188" Thk x 5.375" ID, -356, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit, P/N G105297

1шт.

16

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP RING - piston, inner O-ring

2шт.

Part of Seal Kit, P/N G105297

1шт.

17

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- piston, inner

1шт.

Part of Seal Kit, P/N G105297

1шт.

18

S108947

RING

- wear, piston

2шт.

Part of Seal Kit, P/N G105297

1шт.

19

S511750

PISTON

- cylinder (Replaces S511570)

1шт.

20

S228606

SEAL

SEAL - piston

1шт.

Part of Seal Kit, P/N G105297

1шт.

21

S611555

TUBE,5.5" DIA x 51.35" L

- cylinder, Includes: Ref.#s22 - 24

1шт.

22

S234900

BUSHING

- tube

2шт.

23

178-56

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

- hex socket, 3/8" - 16 NC x 5/8", cone point, inner

2шт.

24

83-610

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

- hex socket, 3/8" - 16 NC x 5/8", cup point, outer

2шт.

G105297

KIT

- seal, Includes: Ref. 9 - 11, 13 - 18 & 20

1шт.
