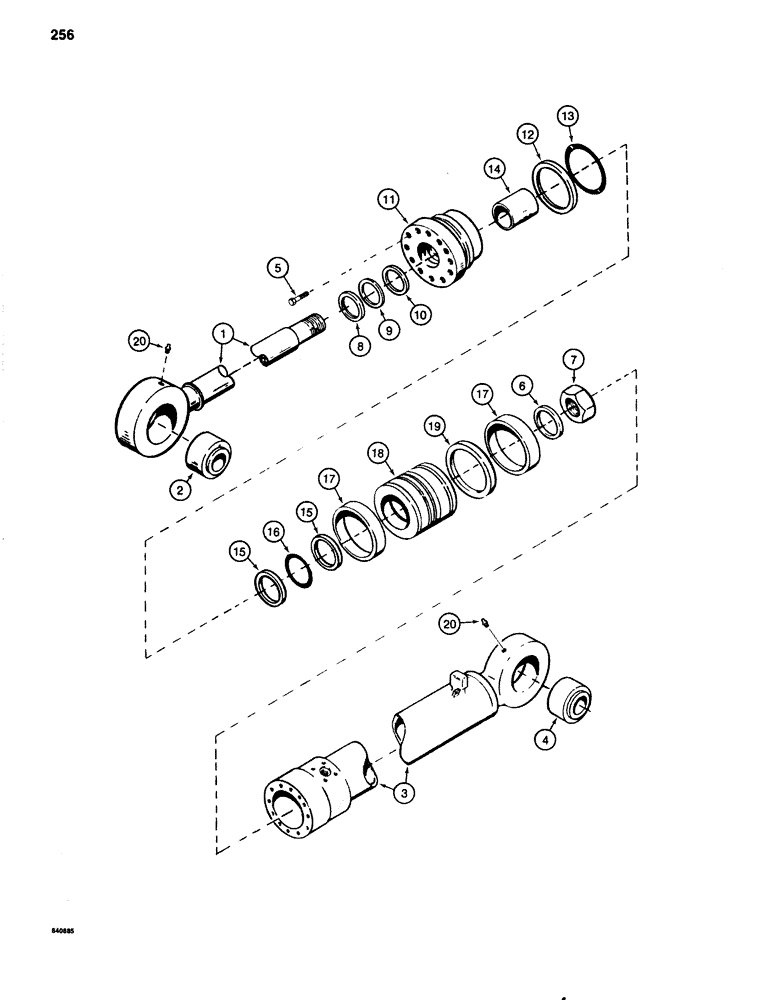

Запчасти Case 1080 (256) - ARM CYLINDER, USED WITH Y BOOM (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
G105663
CYLINDER
ASSEMBLY - arm, used with Y boom, 6-1/2" (165 mm) x 47- 1/2" (1206 mm) stroke, Includes: Ref.#1 - 20
1шт.
1
S513422
ROD
- piston, 3-1/2" (89 mm) diameter, Includes: Ref.#2
1шт.
2
S104419
BUSHING
- self-aligning
1шт.
3
G105664
TUBE
- cylinder, Includes: Ref.#4
1шт.
4
S104419
BUSHING
- self aligning
1шт.
5
28-1036
BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 8
- hex head, 5/8" - 18 NF x 2-1/4", grade 8
12шт.
6
S109535
WASHER
- special
1шт.
7
S232681
NUT
- hex, self-locking, special
1шт.
G105189
GLAND
ASSEMBLY - cylinder, Includes: Ref.#s8 - 14
1шт.
Part of Seal Kit, P/N G105298
1шт.
9
G109055
SEAL,88.95mm ID x 101.73mm OD x 10.69mm Thk
U-CUP SEAL - piston rod, wide
1шт.
Part of Seal Kit, P/N G105298
1шт.
10
G109030
SEAL,88.32mm ID x 104.44mm OD x 4.9mm Thk
- piston rod, narrow
1шт.
Part of Seal Kit, P/N G105298
1шт.
11
NSS
NOT SOLD SEPARAT
GLAND - cylinder
1шт.
12
G109033
SEAL
BACKUP RING - gland O-ring
1шт.
Part of Seal Kit, P/N G105298
1шт.
13
G105104
O-RING,-364, 70 Duro, 6.725" ID x .210" Thk
- gland
1шт.
Part of Seal Kit, P/N G105298
1шт.
14
S111813
SLEEVE ASSY
BUSHING - center
1шт.
Part of Seal Kit, P/N G105298
1шт.
15
G32126
BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk
BACKUP RING - piston, inner O-ring
2шт.
Part of Seal Kit, P/N G105298
1шт.
16
G15457
O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro
- piston, inner
1шт.
Part of Seal Kit, P/N G105298
1шт.
17
S109539
WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk
RING, WEAR, Piston
2шт.
Part of Seal Kit, P/N G105298
1шт.
18
S513950
PISTON
- cylinder
1шт.
19
S228607
SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk
SEAL - piston
1шт.
Part of Seal Kit, P/N G105298
1шт.
20
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" NPT
2шт.
G105298
GASKET KIT
KIT - seal, Includes: Ref. 8 - 10, 12 - 17 & 19
1шт.
Выбрано товаров: 33
