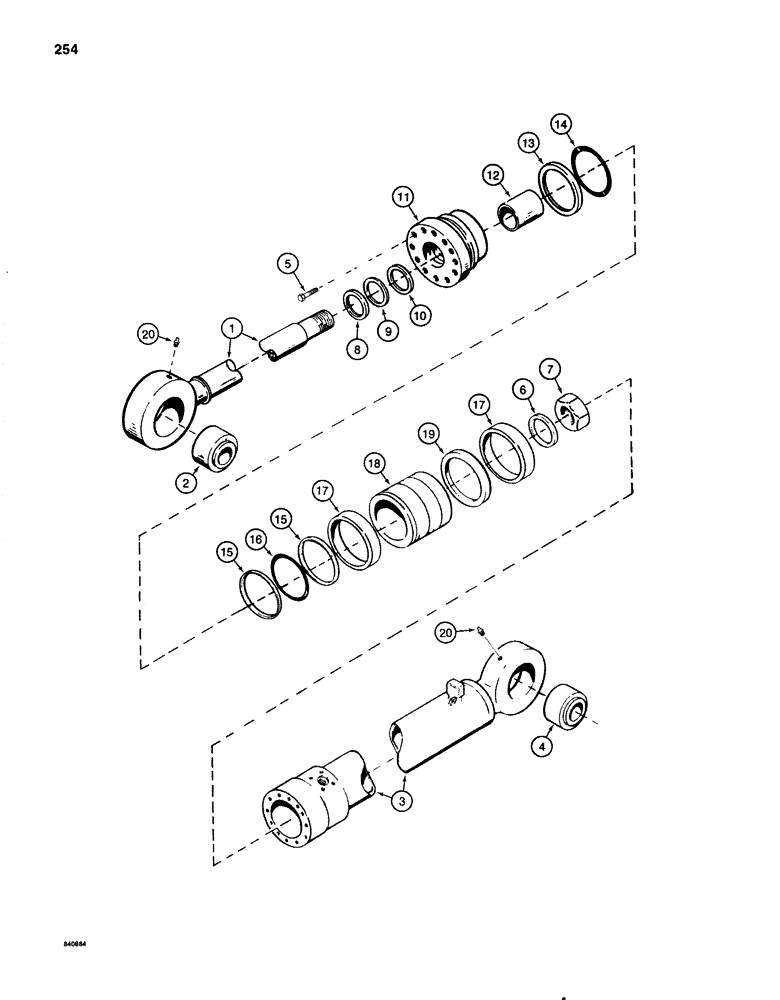

Запчасти Case 1080 (254) - ARM CYLINDER, USED WITH E BOOM (35) - HYDRAULIC SYSTEMS

G105662

CYLINDER

ASSEMBLY - arm, used with E boom, 6-1/2" (165 mm) ID x 47-1/2" (1206 mm) stroke

1шт.

1

S611327

ROD

- piston, 4" (102 mm) diameter

1шт.

2

S104419

BUSHING

- self-aligning

1шт.

3

G105664

TUBE

- cylinder

1шт.

4

S104419

BUSHING

- self-aligning

1шт.

5

28-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 8

- hex, 5/8" - 18 NF x 2-1/4", grade 8

12шт.

6

S109535

WASHER

- special

1шт.

7

S232681

NUT

- hex, self-locking, special

1шт.

G105188

GLAND

ASSEMBLY - cylinder, Includes: Ref.#8 - 14

1шт.

8

S108245

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G105296

1шт.

9

G109056

SEAL

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit, P/N G105296

1шт.

10

G109031

SEAL

SEAL - piston rod, narrow

1шт.

Part of Seal Kit, P/N G105296

1шт.

11

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

12

S234898

NYLON BEARING,101.6mm ID x 111mm OD x 75.95mm L

BUSHING - center

1шт.

Part of Seal Kit, P/N G105296

1шт.

13

G109033

SEAL

BACKUP RING - gland O-ring

2шт.

Part of Seal Kit, P/N G105296

1шт.

14

G105104

O-RING,-364, 70 Duro, 6.725" ID x .210" Thk

- gland

1шт.

Part of Seal Kit, P/N G105296

1шт.

15

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Piston, Inner O-Ring

2шт.

Part of Seal Kit, P/N G105296

1шт.

16

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- piston, inner

1шт.

Part of Seal Kit, P/N G105296

1шт.

17

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

RING, WEAR, Piston

2шт.

Part of Seal Kit, P/N G105296

1шт.

18

S511568

PISTON

- cylinder

1шт.

19

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL - piston

1шт.

Part of Seal Kit, P/N G105296

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G105296

SEAL PACKAGE

KIT - seal, Includes: Ref. 8 - 10, 12 - 17 & 19

1шт.
