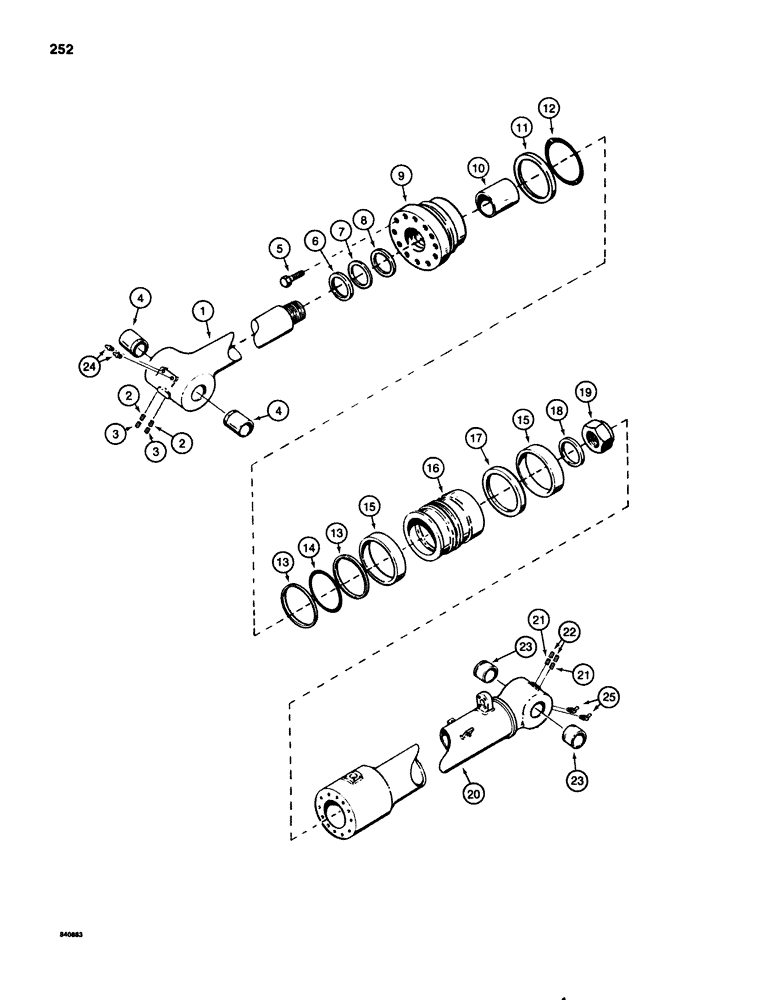

Запчасти Case 1080 (252) - BOOM CYLINDER (35) - HYDRAULIC SYSTEMS

G105657

CYLINDER

ASSEMBLY - boom, 6-1/2" (165 mm) ID x 54-1/2" (1384 mm) stroke, Includes: Ref.#1 - 23

1шт.

1

S511566

ROD

- piston, 4" (102 mm) diameter, Includes: Ref.#s2 - 4

1шт.

2

178-56

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

- hex socket, 3/8" - 16 NC x 5/8", cone point, inner

2шт.

3

83-610

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

- hex socket, 3/8" - 16 NC x 5/8", cup point, outer

2шт.

4

S234899

BUSHING

- piston rod

2шт.

5

28-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 8

- hex head, 5/8" - 18 NF x 2-1/4", grade

12шт.

G105188

GLAND

ASSEMBLY - cylinder, Includes: Ref.#6 - 12

1шт.

6

S108245

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G105296

1шт.

7

G109056

SEAL

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit, P/N G105296

1шт.

8

G109031

SEAL

SEAL - piston rod, narrow

1шт.

Part of Seal Kit, P/N G105296

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

10

S234898

NYLON BEARING,101.6mm ID x 111mm OD x 75.95mm L

BUSHING - center

1шт.

Part of Seal Kit, P/N G105296

1шт.

11

G109033

SEAL

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N G105296

1шт.

12

G105104

O-RING,-364, 70 Duro, 6.725" ID x .210" Thk

- gland

1шт.

Part of Seal Kit, P/N G105296

1шт.

13

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Piston, Inner O-Ring

2шт.

Part of Seal Kit, P/N G105296

1шт.

14

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- piston, inner

1шт.

Part of Seal Kit, P/N G105296

1шт.

15

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

RING, WEAR, Piston

2шт.

Part of Seal Kit, P/N G105296

1шт.

16

S511568

PISTON

- cylinder

1шт.

17

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL - piston

1шт.

Part of Seal Kit, P/N G105296

1шт.

18

S109535

WASHER

- special

1шт.

19

S232681

NUT

- hex, self-locking, special

1шт.

20

G105658

TUBE,6.50" DIA x 68.70" L

- cylinder, Includes: Ref.#21 - 23

1шт.

21

178-56

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

- hex socket, 3/8" - 16 NC x 5/8", cone point, inner

2шт.

22

83-610

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

- hex socket, 3/8" - 16 NC x 5/8", cup point, outer

2шт.

23

S234899

BUSHING

- tube

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, piston rod eye

2шт.

25

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Tube eye 90º, 1/8" NPT x .84" lg

2шт.

G105296

SEAL PACKAGE

KIT - seal, Includes: Ref. 6 - 8, 10 - 15 & 17

1шт.
