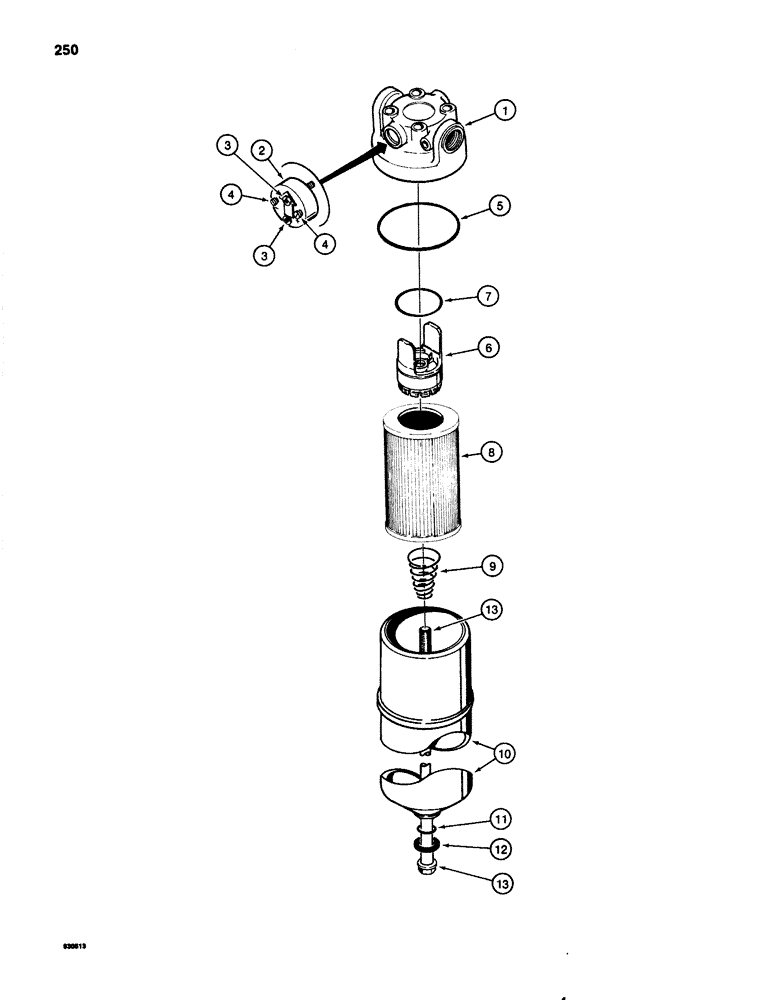

Запчасти Case 1080 (250) - HYDRAULIC OIL FILTER (35) - HYDRAULIC SYSTEMS

S616066

FILTER

ASSEMBLY - hydraulic oil, Includes: Ref.#1 - 13

2шт.

S239990

HEAD ASSY.

HEAD ASSEMBLY - filter, Includes: Ref.# 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - housing

1шт.

S104920

BRACKET

RESTRICTION INDICATOR ASSEMBLY - electric, Includes: Ref.#2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RESTRICTION INDICATOR - without screws

1шт.

3

187-1110

SCREW,Cross Pan Hd, #8 x 5/8"

- self-tapping, Phillips head, No. 8 - 32 NC x 5/16"

2шт.

4

182-507

SCREW,Sl Pan Hd, #8 - 32 x 5/16", Brass

- terminal, slotted head, No. 8 - 32 NC x 5/16"

2шт.

5

S107789

O-RING

- head seal

1шт.

S107803

VALVE

ASSEMBLY - bypass, Includes: Ref.#s6 & 7

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

7

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- bypass valve

1шт.

8

S111605

ELEMENT

- filter

1шт.

8a

S111118

ELEMENT

- special flushing, do not use for regular service, use to flush hydraulic system only, not shown

1шт.

9

S104930

SPRING

- filter housing

1шт.

10

S113853

HOUSING

- filter

1шт.

S107793

SEALING WASHER

WASHER AND ASSEMBLY - filter, Includes: Ref.#11 & 12

1шт.

11

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- bolt seal

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

13

S111607

BOLT

- special, filter tie

1шт.
