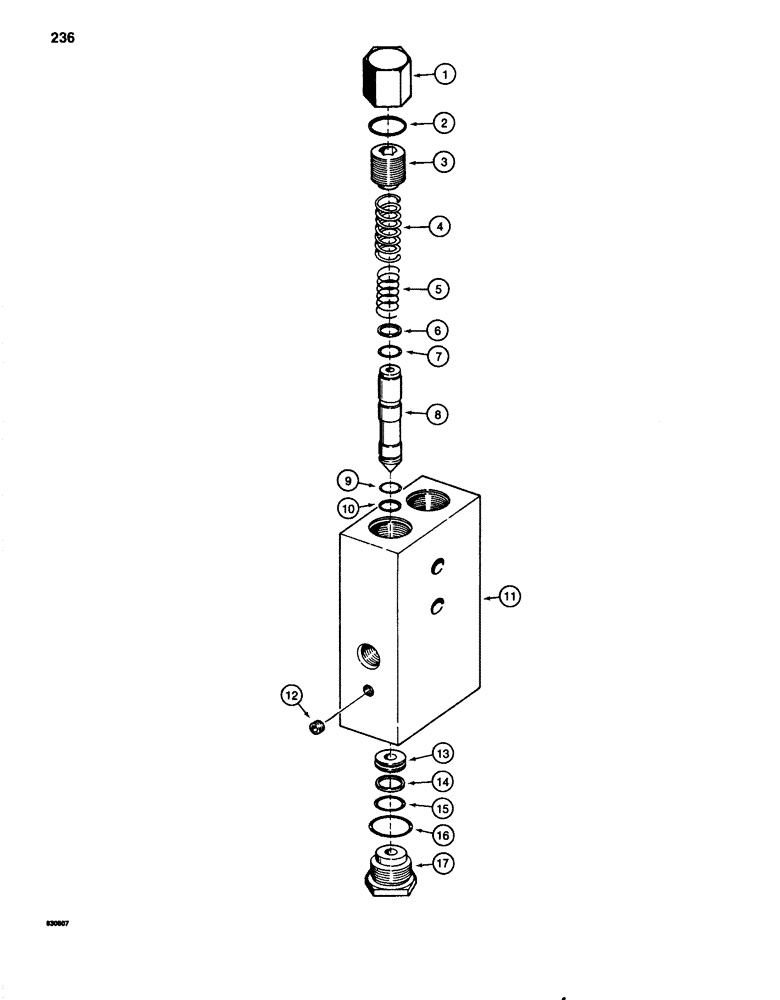

Запчасти Case 1080 (236) - POWER SENSING RELIEF VALVE (35) - HYDRAULIC SYSTEMS

S509073

VALVE

RELIEF VALVE ASSEMBLY - power sensing, Includes: Ref.#s1 - 17

1шт.

1

S99874

CAP

- relief valve

2шт.

2

S99870

WASHER

- seal

2шт.

Part of Relief Valve Seal Kit, P/N S107816

1шт.

3

S99875

SCREW

- adjusting

2шт.

4

S99872

SPRING

- large, outer

2шт.

5

S107871

SPRING

- small, inner

2шт.

6

L30012

RING

BACKUP RING - upper O-ring

2шт.

Part of Relief Valve Seal Kit, P/N S107816

1шт.

7

S6144

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- plunger, upper

2шт.

Part of Relief Valve Seal Kit, P/N S107816

1шт.

8

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve

2шт.

9

W13170

O-RING,0.395" ID x 0.04" Width

- plunger, lower

2шт.

Part of Relief Valve Seal Kit, P/N S107816

1шт.

10

S99879

RING

BACKUP RING - lower O-ring

2шт.

Part of Relief Valve Seal Kit, P/N S107816

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

12

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

13

S99946

SEAT

- relief valve plunger

2шт.

14

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

BACKUP RING - seat O-ring

2шт.

Part of Relief Valve Seal Kit, P/N S107816

1шт.

15

D25265

YOKE

O-RING - seat

2шт.

Part of Relief Valve Seal Kit, P/N S107816

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- bottom plug

2шт.

Part of Relief Valve Seal Kit, P/N S107816

1шт.

17

S99876

CONNECTOR, ELEC

PLUG - bottom

2шт.

S107816

SEAL ASSY.

SEAL KIT - relief valve, Includes: Ref. 2, 6, 7, 9, 10, 14, 15, and 16

1шт.
