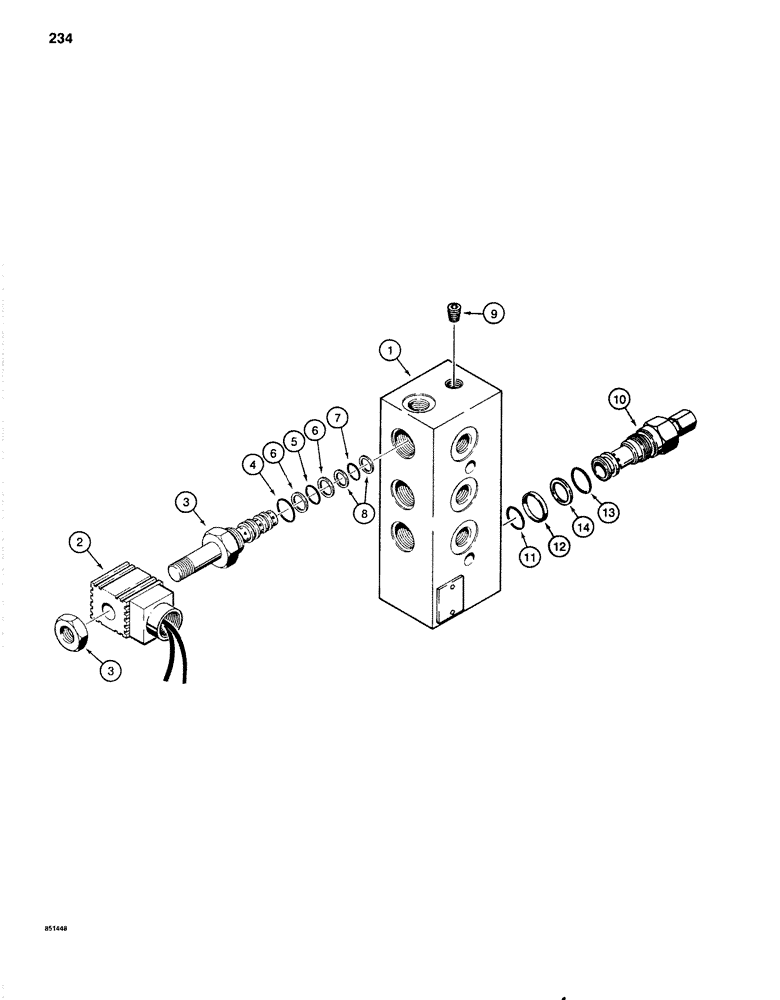

Запчасти Case 1080 (234) - SOLENOID CONTROL VALVE (35) - HYDRAULIC SYSTEMS

S516951

VALVE

CONTROL VALVE ASSEMBLY - solenoid, Includes: Ref.#s1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

N9053

COIL

- solenoid

3шт.

N8549

SOLENOID

ASSEMBLY - control valve, Includes: Ref.#3 - 8

3шт.

3

NSS

NOT SOLD SEPARAT

BODY - solenoid, includes nut

1шт.

5

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- center

1шт.

6

N8553

O-RING

BACKUP RING - inner O-ring

2шт.

7

A8613

O-RING,0.426" ID x 0.566" OD

- inner

1шт.

8

N8554

O-RING

BACKUP RING - inner O-ring

2шт.

9

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex socket head, 1/8" NPT

1шт.

N9894

VALVE, PRESSURE RELI

RELIEF VALVE ASSEMBLY - control valve, Includes: Ref.#s10 - 14

1шт.

See service bulletin EP04-86.

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

11

A65918

O-RING,0.551" ID x 0.691" OD

- relief valve, 9/16" ID

1шт.

12

N9961

BACK-UP RING,0.551" ID x 0.691" OD x 0.07"

- outer, used with 9/16" O-ring, if used

1шт.

Refs. 12 and 12A should not be used in the same relief valve assembly. All new N9894 relief valve assemblies are designed to use Ref. 12 only.

1шт.

12a

L30443

BACK-UP RING,0.547" ID x 0.049" Width

BACKUP RING - used beside the 9/16" ID O-ring, if used, not shown

1шт.

Refs. 12 and 12A should not be used in the same relief valve assembly. All new N9894 relief valve assemblies are designed to use Ref. 12 only.

1шт.

13

D77584

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

- relief valve, 11/16" ID

1шт.

14

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

BACKUP RING - used with 11/16" ID O-ring

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
