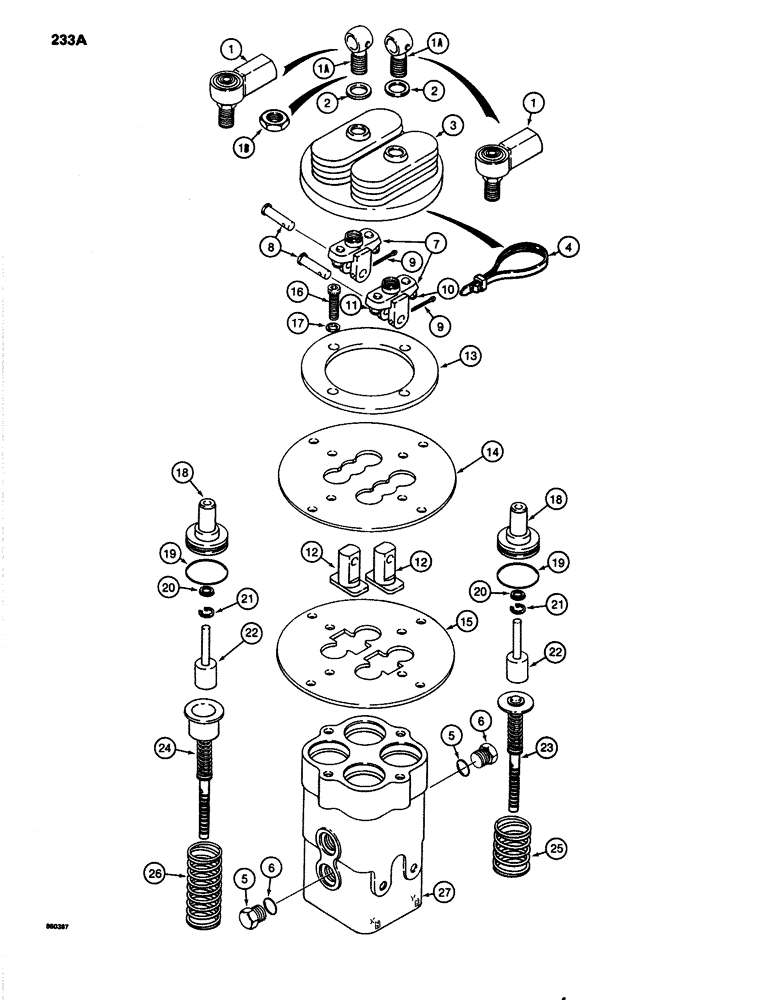

Запчасти Case 1080 (233A) - HAND AND FOOT CONTROL VALVES, GRESEN MANUFACTURED (35) - HYDRAULIC SYSTEMS

S517078

VALVE

CONTOL VALVE ASSEMBLY - foot

2шт.

S517076

VALVE

CONTROL VALVE ASSEMBLY - hand, left hand, Includes: Ref.#s1 - 6

1шт.

S517077

VALVE

CONTROL VALVE ASSEMBLY - hand, right hand, Includes: Ref.#s1 - 6

1шт.

1

N13670

END

ROD END - S517076 and S517077 control valves only

1шт.

N14627

END

ROD

1шт.

1a

N13671

CLEVIS

- S517078 control valve only

2шт.

1b

129-165

JAM NUT,Jam, 1/2"-20, G5

S517078 control valve only Jam, 1/2"-20, G5

2шт.

2

N13669

WASHER

- shim

2шт.

3

N13668

BOOT

- control mechanism

1шт.

4

N13667

STRAP

BAND - boot retaining

1шт.

5

76349

PLUG,9/16" - 18 ORB

Incl. Ref.#6 Hex Hd, 9/16"-18 ORB

2шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, plug

1шт.

N13672

PIVOT

ROCKER ASSEMBLY - control valve, Includes: Ref.#7 - 15

1шт.

7

N13680

PIVOT

ROCKER - control

2шт.

8

N13678

PIN

- rocker

2шт.

9

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

10

N13679

BOLT

BUTTON - rocker

4шт.

11

86637933

JAM NUT,5/16" - 24, Gr 5

4шт.

12

N13681

POST

- rocker pivot

2шт.

13

NSS

NOT SOLD SEPARAT

PLATE - boot

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE - top

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - bottom

1шт.

16

165-163

HEX SOC SCREW,1/4" - 20 x 1"

BOLT - hex socket head, 1/4" - 20 NC x 1", plated

4шт.

17

D53906

WASHER - flat, 1/4", plated

4шт.

18

N13695

GUIDE

- plunger

2шт.

19

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

- guide

2шт.

20

N13693

SEAL

- wiper

2шт.

21

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, , seal 0.50", Int, #50

2шт.

22

N13694

LARGE PIN

PIN - plunger

2шт.

23

N13673

SPOOL

ASSEMBLY - in port XA of S517076 control valve, port YB of S517077 control valve, or all ports of S517078 control valve, components not serviced separately

1-4шт.

Part numbers are stamped on the end of valve body.

1шт.

24

N13676

SPOOL

ASSEMBLY - in three ports of S517076 or S517077 control valves only, see N13673 above for exception port for each valve, components not serviced separately

3шт.

Part numbers are stamped on the end of valve body.

1шт.

25

N13674

SPRING

- outer, used with Ref.# 23 only

1-4шт.

26

N13677

SPRING

- outer, used with Ref.# 24 only, if used

3шт.

27

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.
