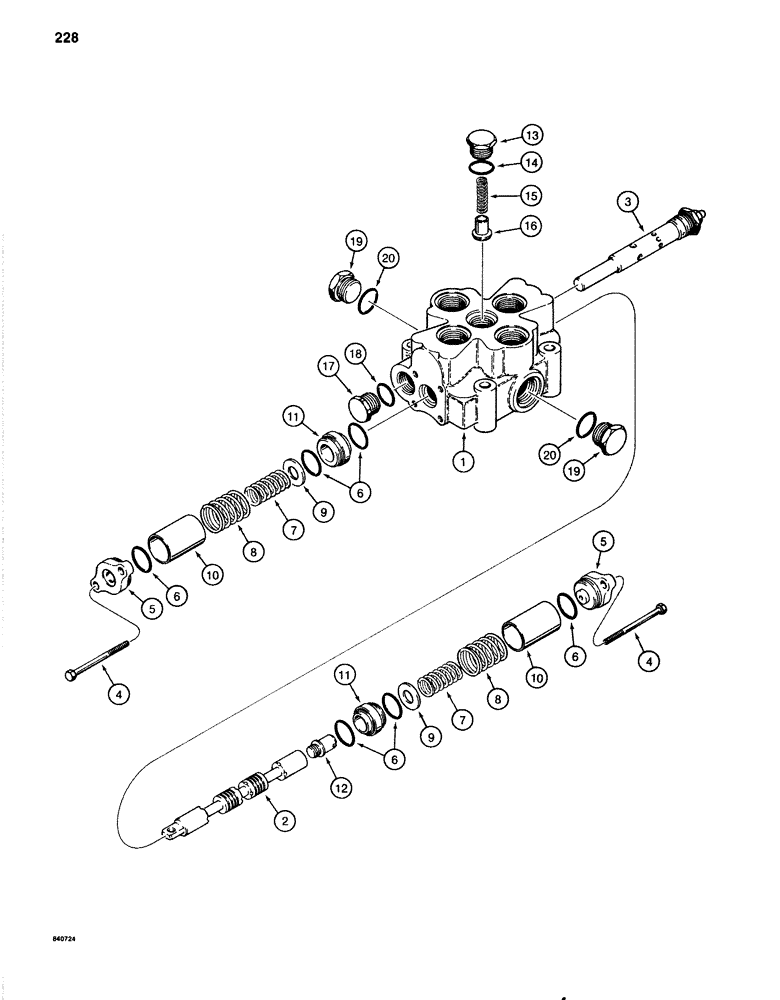

Запчасти Case 1080 (228) - ONE SPOOL CONTROL VALVE (35) - HYDRAULIC SYSTEMS

S516450

VALVE

CONTROL VALVE ASSEMBLY - one spool, leveler circuit on models with both leveler and auxiliary hydraulic circuits, Includes: Ref.#s1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

S215229

PLUNGER

SPOOL - control valve

1шт.

3

S62112

CARTRIDGE

RELIEF VALVE ASSEMBLY - control valve, set at 2500 psi, parts list Fig. 230

1шт.

4

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

5

N8722

VALVE

CAP - end, spool

2шт.

6

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- end cap and retainer

6шт.

7

N13042

SPRING

- spool, inner

2шт.

The inner and outer springs have changed design and must be replaced in pairs, (1) N13042 along with (1) N13043, to work together properly.

1шт.

8

N13043

SPRING

- spool, outer

2шт.

The inner and outer springs have changed design and must be replaced in pairs, (1) N13042 along with (1) N13043, to work together properly.

1шт.

9

N8727

SPACER

- spring

2шт.

10

N8724

TUBE,1.628" ID x 1.812" OD x 2.603" L

HOUSING - spool spring

2шт.

11

N8725

CAP

SLEEVE - spool

1шт.

12

N9091

END

PLUG - spool end

1шт.

13

S13714

PLUG

- load check

1шт.

14

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- check plug

1шт.

15

S13715

SPRING

- load check

1шт.

16

S13716

VALVE POPPET

POPPET - load check

1шт.

17

S13707

PLUG

- relief valve port

1шт.

18

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- relief plug port

1шт.

19

273916

PLUG,Hex, 1-5/16" - 12 ORB

Assy, Side ports, Includes Ref. 20 Hex Hd, 1 5/16"-12 ORB

2шт.

20

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- port plug

1шт.
