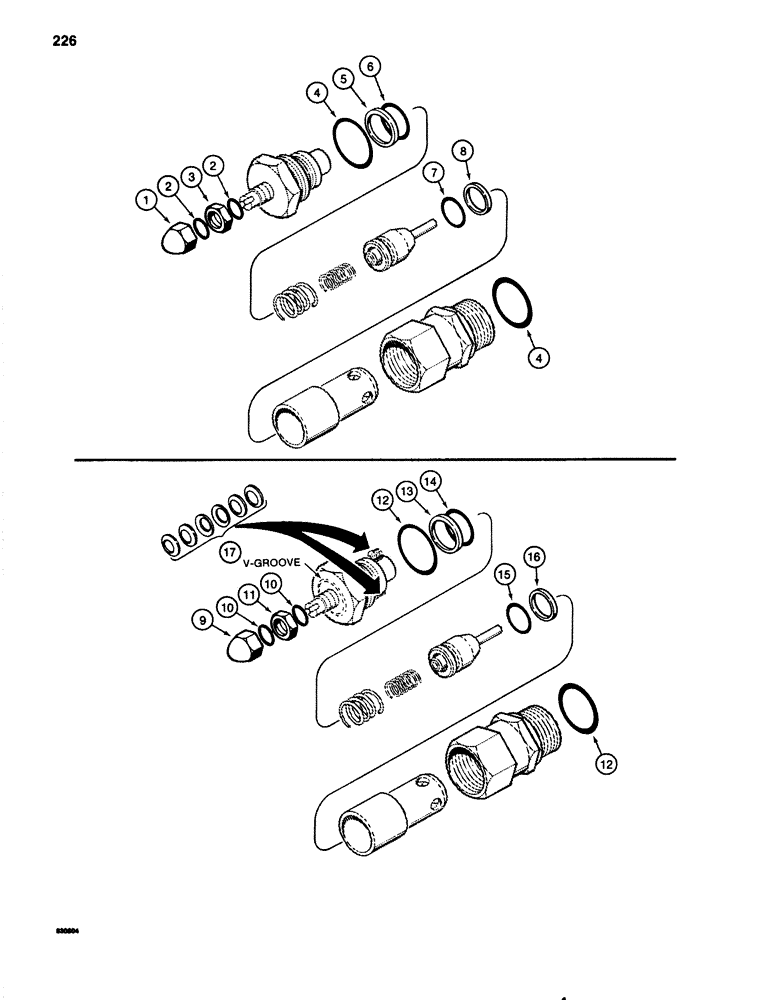

Запчасти Case 1080 (226) - CIRCUIT RELIEF VALVES (35) - HYDRAULIC SYSTEMS

S616866

VALVE

CIRCUIT RELIEF VALVE - cartridge assembly, complete, set at 3200 psi, Includes: Ref.#s1 - 8

1шт.

S616868

VALVE

CIRCUIT RELIEF VALVE - cartridge assembly, complete, set at 2500 psi, Includes: Ref.#s1 - 8

1шт.

1

S116073

CAP

DOME NUT - adjusting screw

1шт.

2

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- outer

2шт.

Part of P/N N117193, Seal Kit - circuit relief valve, includes all seals and backup rings.

1шт.

3

S116072

JAM NUT

JAM NUT - adjusting screw

1шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug to cartridge and cartridge to valve body

2шт.

Part of P/N N117193, Seal Kit - circuit relief valve, includes all seals and backup rings.

1шт.

5

S83071

BACK-UP RING

BACKUP RING - inner plug O-ring

1шт.

Part of P/N N117193, Seal Kit - circuit relief valve, includes all seals and backup rings.

1шт.

6

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- inner plug

1шт.

Part of P/N N117193, Seal Kit - circuit relief valve, includes all seals and backup rings.

1шт.

7

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- poppet

1шт.

Part of P/N N117193, Seal Kit - circuit relief valve, includes all seals and backup rings.

1шт.

8

S84098

BACK-UP RING,1/2" ID x 11/16" OD

BACKUP RING - poppet O-ring

1шт.

Part of P/N N117193, Seal Kit - circuit relief valve, includes all seals and backup rings.

1шт.

S117193

SEAL KIT

SEAL KIT - circuit relief valve, includes all seals, backup rings and all three internal springs (Replaces N9092)

1шт.

Part of P/N N117193, Seal Kit - circuit relief valve, includes all seals and backup rings.

1шт.

S616861

VALVE, PRESSURE RELI

CIRCUIT RELIEF VALVE - cartridge assembly, special R series complete, set at 3200 psi, Includes: Ref.#s9 - 17

1шт.

9

S116073

CAP

DOME NUT - adjusting screw, R series circuit relief valve

1шт.

10

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- outer, R series circuit relief valve

2шт.

Part of P/N N117193, Seal Kit - circuit relief valve, includes all seals and backup rings.

1шт.

11

S116072

JAM NUT

JAM NUT - adjusting screw, R series circuit relief valve

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug to cartridge and cartridge to valve body, R series circuit relief valve

2шт.

Part of P/N N117193, Seal Kit - circuit relief valve, includes all seals and backup rings.

1шт.

13

S83071

BACK-UP RING

BACKUP RING - inner plug O-ring, R series circuit relief valve

1шт.

Part of P/N N117193, Seal Kit - circuit relief valve, includes all seals and backup rings.

1шт.

14

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- inner plug, R series circuit relief valve

1шт.

Part of P/N N117193, Seal Kit - circuit relief valve, includes all seals and backup rings.

1шт.

15

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- poppet, R series circuit relief valve

1шт.

Part of P/N N117193, Seal Kit - circuit relief valve, includes all seals and backup rings.

1шт.

16

S84098

BACK-UP RING,1/2" ID x 11/16" OD

BACKUP RING - poppet O-ring, R series circuit relief valve

1шт.

Part of P/N N117193, Seal Kit - circuit relief valve, includes all seals and backup rings.

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - spring, R series circuit relief valve

12шт.

N117193

SEAL KIT - circuit relief valve, includes all seals and backup rings

1шт.
