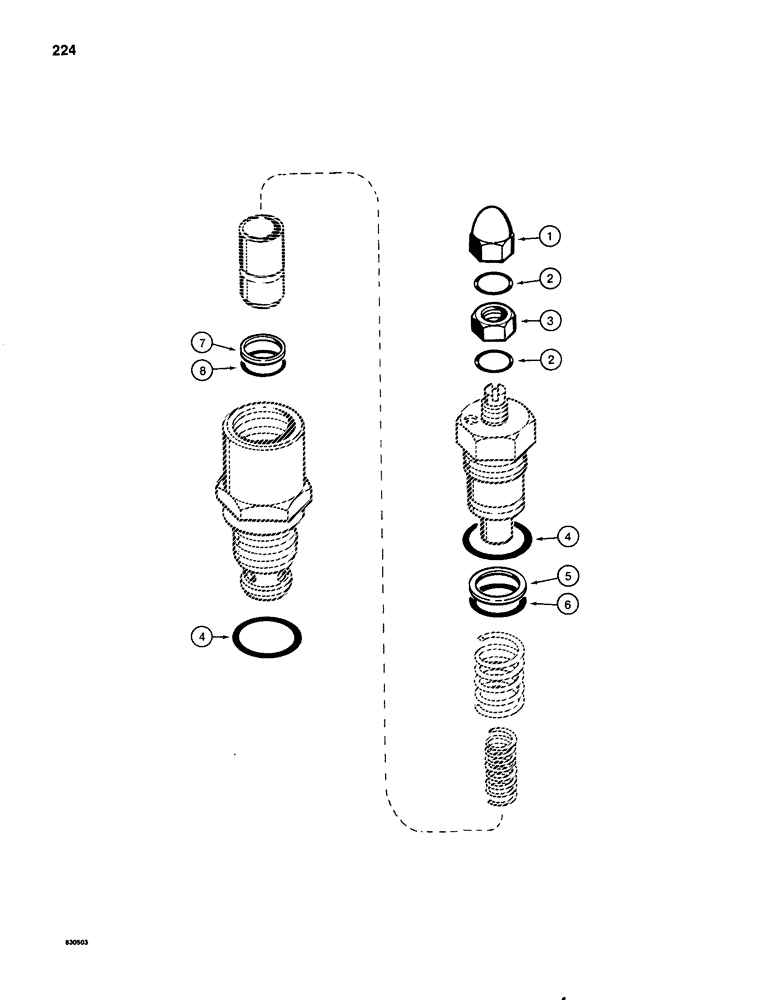

Запчасти Case 1080 (224) - MAIN RELIEF VALVE, FOUR SPOOL CONTROL VALVES (35) - HYDRAULIC SYSTEMS

S237784

VALVE, PRESSURE RELI

MAIN RELIEF VALVE - cartridge assembly, complete, Includes: Ref.#1 - 8

1шт.

S117194

SEAL KIT

SEAL KIT - main relief valve, Includes: Ref.#s1 - 8

1шт.

1

S116073

CAP

DOME NUT - adjusting screw

1шт.

2

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- outer

2шт.

3

S116072

JAM NUT

JAM NUT - adjusting screw

1шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug to cartridge and cartridge to valve body

2шт.

5

S83071

BACK-UP RING

BACKUP RING - inner plug O-ring

1шт.

6

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- inner plug

1шт.

7

C11865

RING

BACKUP RING - poppet O-ring

1шт.

8

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- poppet

1шт.
