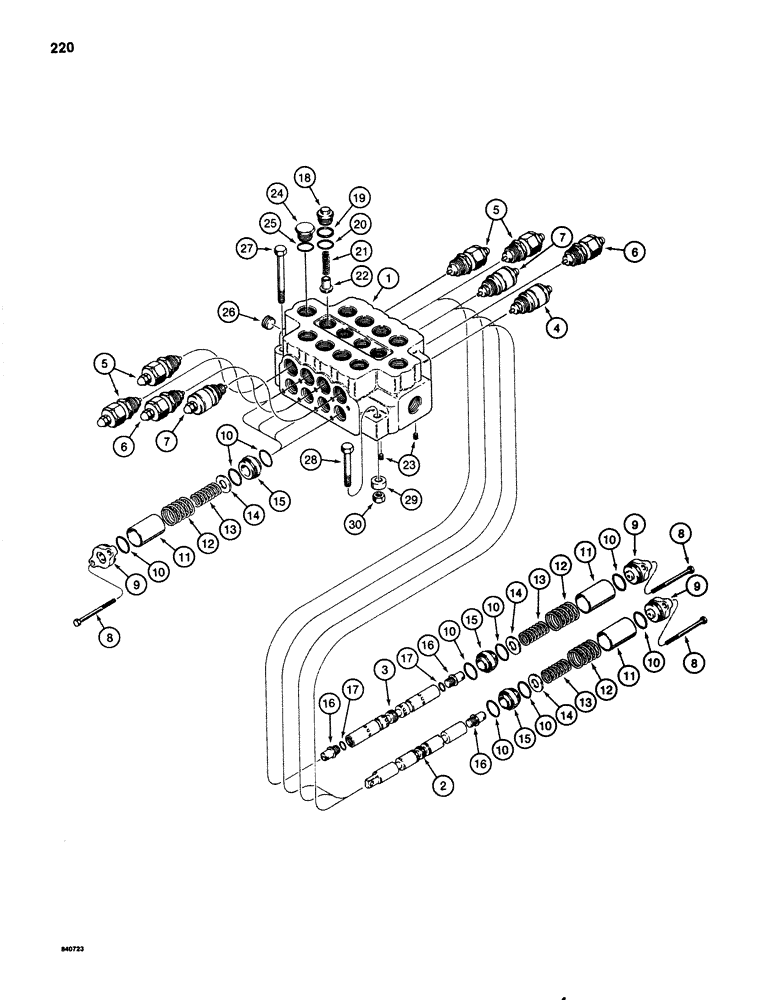

Запчасти Case 1080 (220) - FOUR SPOOL CONTROL VALVE - OUTSIDE (35) - HYDRAULIC SYSTEMS

S516309

VALVE

CONTROL VALVE ASSEMBLY - outside, all models except those with both leveler and auxiliary hydraulic circuits, Includes: Ref.#s1 - 26

1шт.

S516310

VALVE

CONTROL VALVE ASSEMBLY - outside, models with both leveler and auxiliary hydraulic circuits, Includes: Ref.#s1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - auxiliary or leveler, left-hand track and tool cylinder circuits

3шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - boom cylinder circuit

1шт.

4

S237784

VALVE, PRESSURE RELI

MAIN RELIEF VALVE - set at 3000 psi, parts list Fig. 224

1шт.

5

S616868

VALVE

CIRCUIT RELIEF VALVE - set at 2500 psi, parts list Fig. 226

4шт.

6

S616866

VALVE

CIRCUIT RELIEF VALVE - set at 3200 psi, parts list Fig. 226

2шт.

7

S616861

VALVE, PRESSURE RELI

CIRCUIT RELIEF VALVE - special R series, set at 3200 psi, parts list Fig. 226

2шт.

8

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Spool end caps Hex, 3/8"-16 x 4", G5

16шт.

9

N8722

VALVE

CAP - spool ends

8шт.

10

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- cap, tube, and sleeve

24шт.

11

N8724

TUBE,1.628" ID x 1.812" OD x 2.603" L

- spool ends

8шт.

12

N13043

SPRING

- outer

8шт.

The inner and outer springs have changed design and must be replaced in pairs, (1) N13042 along with (1) N13043, to work together properly.

1шт.

13

N13042

SPRING

- inner

8шт.

The inner and outer springs have changed design and must be replaced in pairs, (1) N13042 along with (1) N13043, to work together properly.

1шт.

14

N8727

SPACER

- spring support

8шт.

15

N8725

CAP

SLEEVE - spool

8шт.

16

N8721

END

SCREW - special, spool end

5шт.

S105062

PLUG

ASSEMBLY - check valve, Includes: Ref.#18 - 20

4шт.

18

NSS

NOT SOLD SEPARAT

PLUG - check valve

1шт.

19

S105095

RING

BACKUP RING - check valve plug

1шт.

20

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- check valve plug

1шт.

21

S13715

SPRING

- check valve

4шт.

22

S13716

VALVE POPPET

POPPET - check valve

4шт.

23

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket head, 3/8" NPT

2шт.

24

273916

PLUG,Hex, 1-5/16" - 12 ORB

Used in top RH end port on S516309 valve or in left-hand end port on S516310 valve, Includes: Refs. 18 - 20 Hex Hd, 1 5/16"-12 ORB

1шт.

25

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

26

221-846

PLUG,Hex Soc, 1"-11 1/2

- hex socket head, 1" NPT internal, left-hand end port, S516310 valve only

1шт.

27

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

2шт.

28

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

29

S113313

SPACER

- valve mounting

3шт.

30

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

3шт.

S618086

VALVE

basic

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, screw seal, swing circuit spool only

2шт.
