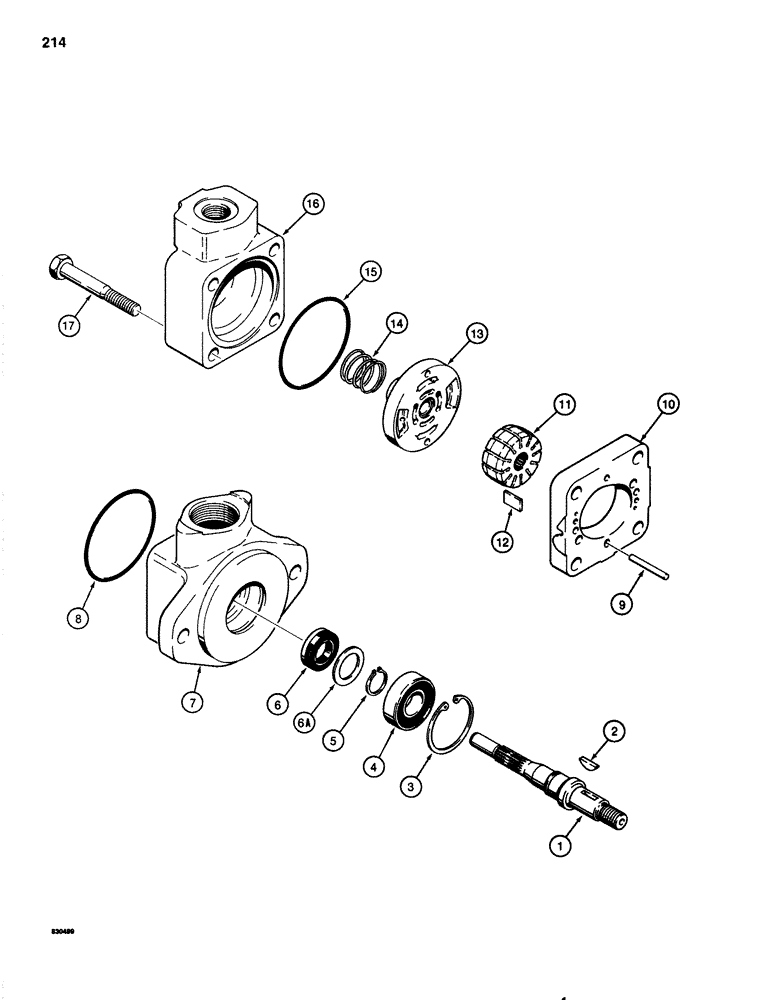

Запчасти Case 1080 (214) - S516451 HYDRAULIC PUMP/CONTROL CIRCUIT (35) - HYDRAULIC SYSTEMS

S516451

PUMP

ASSEMBLY - control circuit, Includes: Ref.#s1 - 17

1шт.

1

N60318

SHAFT

INPUT SHAFT - pump

1шт.

2

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Shaft #6, 5/32" x 5/8"

1шт.

3

T28736

SNAP RING,1.562", Int, #156

Ring, Snap, , brg, outer 1.562", Int, #156

1шт.

4

F37843

BEARING

- input shaft

1шт.

5

A56279

RING, SNAP

SNAP RING - bearing retaining, inner

1шт.

6

N8557

SEAL

- input shaft

1шт.

6a

N8558

SPACER

- seal

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

8

A38490

O-RING,2.487" ID x 2.693" OD x 0.103"

- shaft end cover

1шт.

9

S98105

PIN

DOWEL PIN - pump

2шт.

10

N60316

HOUSING

RING - cam

1шт.

11

S98096

ROTOR

- pump

1шт.

12

S98090

KIT

VANE KIT - includes 12 vanes

1шт.

13

F37848

PLATE

PRESSURE PLATE - pump

1шт.

14

F37849

SPRING

- pressure plate

1шт.

15

D24053

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

- closed end cover

1шт.

16

N60315

SPRING

COVER - closed end

1шт.

17

26-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

- hex head, 3/8" - 16 NC x 2-3/4", grade 8

4шт.
