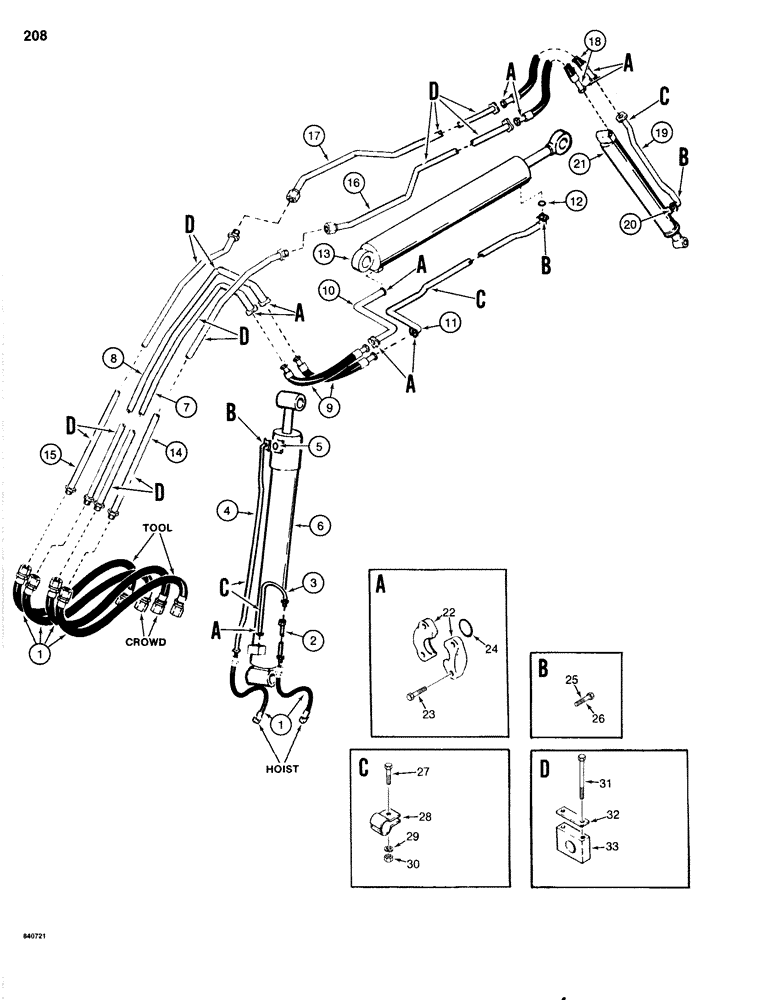

Запчасти Case 1080 (208) - BOOM, ARM, AND TOOL CYLINDER HYDRAULIC CIRCUITS, Y BOOM (35) - HYDRAULIC SYSTEMS

1

S8628

HOSE

- to tube lines, 36" (914 mm) long

6шт.

2

S238586

TUBE ASSY.,1.25" OD

TUBE - boom cylinder, rear port, short

1шт.

3

S514345

TUBE ASSY.,1.25" OD x 16.3, 4.84" L

TUBE - boom cylinder, rear port, long

1шт.

4

S615045

TUBE ASSY.,1.25" OD

TUBE - boom cylinder, front port

1шт.

5

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- tube to cylinder

1шт.

6

G105657

CYLINDER

- boom, parts list Fig. 252

1шт.

7

S513753

TUBE,1.25" OD

- arm cylinder circuit, right-hand

1шт.

8

S513752

TUBE,1.25" OD

- arm cylinder circuit, left-hand

1шт.

9

S229986

HOSE ASSY.

HOSE - to arm cylinder, 38' (965 mm) long

2шт.

10

S236162

TUBE ASSY.,1.25" OD x 8.8, 8.05" L

TUBE - to arm cylinder, rear port

1шт.

11

S515231

TUBE ASSY.,1.25" OD x 7.75, 58.9" L

TUBE - to arm cylinder, front port

1шт.

12

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- tube to cylinder

1шт.

13

G105663

CYLINDER

- arm, parts list Fig. 256

1шт.

14

S613288

TUBE ASSY.,1.25" OD

TUBE - tool cylinder circuit, right-hand

1шт.

15

S613287

TUBE ASSY.,1.25" OD

TUBE - tool cylinder circuit, left-hand

1шт.

16

S616474

TUBE ASSY.,1.25" OD

TUBE - tool cylinder circuit, right-hand

1шт.

17

S616473

TUBE ASSY.,1.25" OD

TUBE - tool cylinder circuit, left-hand

1шт.

18

S229987

HOSE ASSY.

HOSE - to tool cylinder, 60" (1524 mm) long

2шт.

19

S235038

TUBE ASSY.,1.25" OD x 42.55, 0.92" L

TUBE - to tool cylinder, front port

1шт.

20

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- tube to cylinder

1шт.

21

G105176

CYLINDER

- tool, parts list Fig. 258

1шт.

22

A12301

CLAMP,Half

SPLIT FLANGE - tube

20шт.

23

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

40шт.

24

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- tube

10шт.

25

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

6шт.

26

113-319

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

6шт.

27

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

28

S106606

CLAMP

- tube

8шт.

29

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

30

129-104

NUT,7/16"-14, G5

4шт.

31

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

28шт.

32

S112618

PLATE

- clamp

14шт.

33

S112617

CLAMP

- tube

14шт.
