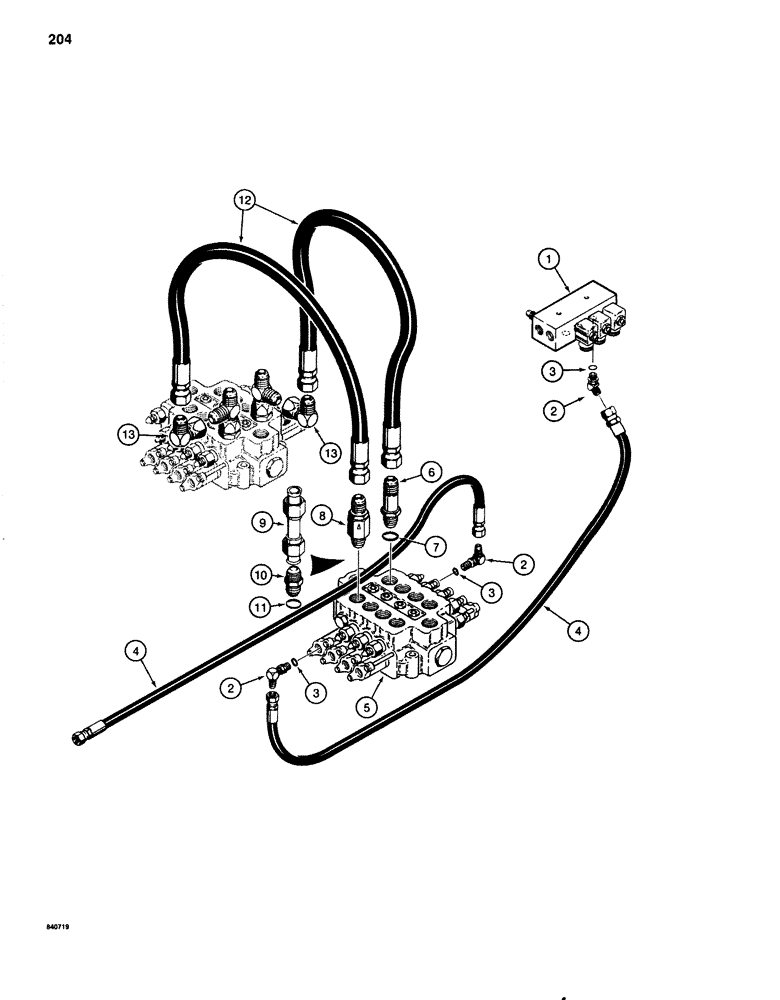

Запчасти Case 1080 (204) - FAST HOIST LINES (35) - HYDRAULIC SYSTEMS

1

S516951

VALVE

SOLENOID CONTROL VALVE - parts list Fig. 234, mounting parts Fig. 180

1шт.

2

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, Includes: Ref.#3

3шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

4

S241219

HOSE ASSY.

HOSE - valve control circuit, 50" (1270 mm) long

2шт.

5

REF

INSTRUCTION

CONTROL VALVE - inside, Fig. 217 & 219 for correct valve and component parts

1шт.

6

218-5034

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, long, front valve port, Includes: Ref.#7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

8

S93154

VALVE

CHECK VALVE - lower control valve port

1шт.

9

S207938

TUBE ASSY.,1" OD x 6.6" L

TUBE - check valve to control valve

1шт.

10

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, rear valve port, Incl. Ref.#11

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

12

S8628

HOSE

- inside control valve to tees in boom cylinder circuit, 36" (914 mm) long, see Fig. 202

2шт.

13

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, hose to tee

2шт.
