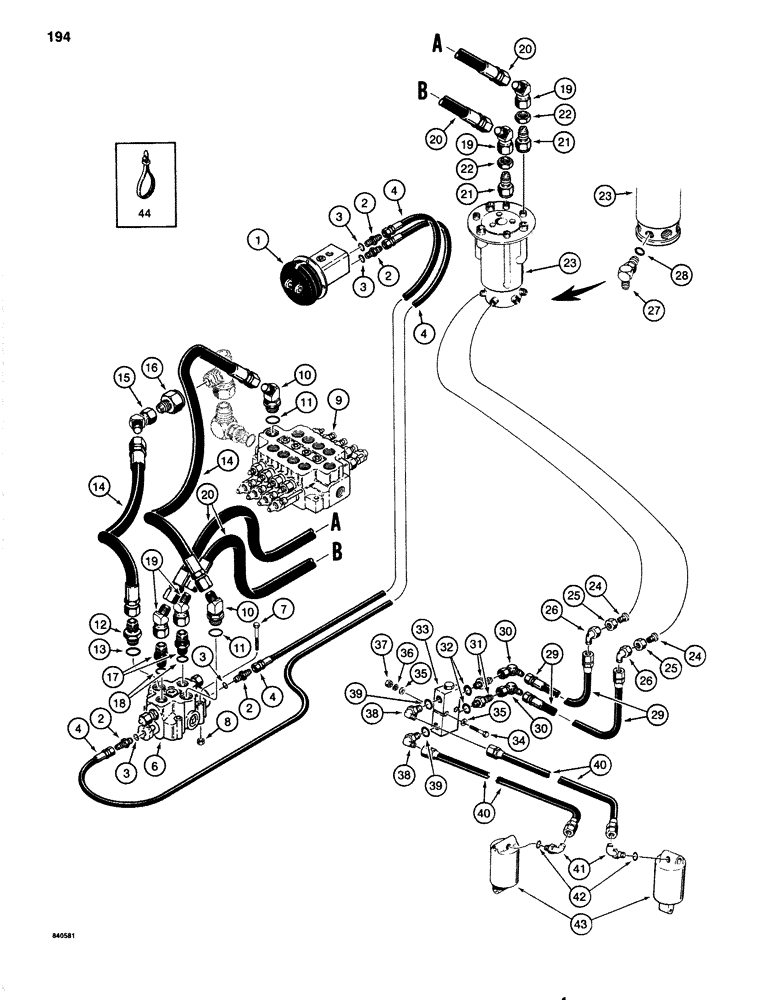

Запчасти Case 1080 (194) - HYDRAULIC LEVELER LINES, MODELS WITH AUXILIARY HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - right-hand lever, Figs. 232 & 233A for correct valve and component parts

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, control valve ports, Incl. Ref.#3

4шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

4

S241223

HOSE ASSY.

HOSE - to one spool control valve, 125" (3175 mm) long

2шт.

6

S516450

VALVE

CONTROL VALVE - one spool, parts list Fig. 228

1шт.

7

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

3шт.

8

131-70

NUT,1/2"-13, GB

NUT - hex, 1/2" - 13 NC

3шт.

9

REF

INSTRUCTION

CONTROL VALVE - outside, Fig. 220 for correct valve and component parts

1шт.

10

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, Includes: Ref.#11

2шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

12

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, Incl. Ref.#13

1шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

14

S8628

HOSE

- one spool valve inlet and outlet, 36" (914 mm) long

2шт.

15

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree

1шт.

16

218-787

REDUCER,37 Degree, 1 7/8"-12, Fem x 1 5/16"-12 Male

- elbow to tee in hydraulic filter line

1шт.

17

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - one spool valve, working ports, Includes: Ref.#18

2шт.

18

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

19

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree

4шт.

20

S11231

HOSE ASSY.

HOSE - one spool valve to swivel, 68" (1727 mm) long

2шт.

21

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - hose to swivel

2шт.

22

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - adapter

2шт.

23

REF

INSTRUCTION

SWIVEL ASSEMBLY - parts list Fig. 246

1шт.

24

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - swivel to elbow, used on swivels with male ports

2шт.

25

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - adapter, used on swivels with male ports

2шт.

26

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, used on swivels with male ports, Includes: Ref.#28

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

ELBOW - 90 degree, used on swivels with female ports, Includes: Ref.#28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

29

S11226

HOSE

- to check valve, 20" (508 mm) long

2шт.

30

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree

2шт.

31

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, Incl. Ref#32

2шт.

33

S516156

CHECK VALVE

- leveler, parts list Fig. 240

1шт.

34

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex head, 1/4" - 20 NC x 2-1/4"

2шт.

35

195-102

WASHER,1/4"

- flat, 1/4"

4шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

37

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

38

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Check valve ports, Includes: Ref.#39 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

40

S11226

HOSE

- to leveler cylinder, 20" (508 mm) long

2шт.

41

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

At leveler cylinders, Includes: Ref.#42 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

43

S56810

CYLINDER

- leveler, parts list Fig. 260

2шт.

44

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

39

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

42

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
