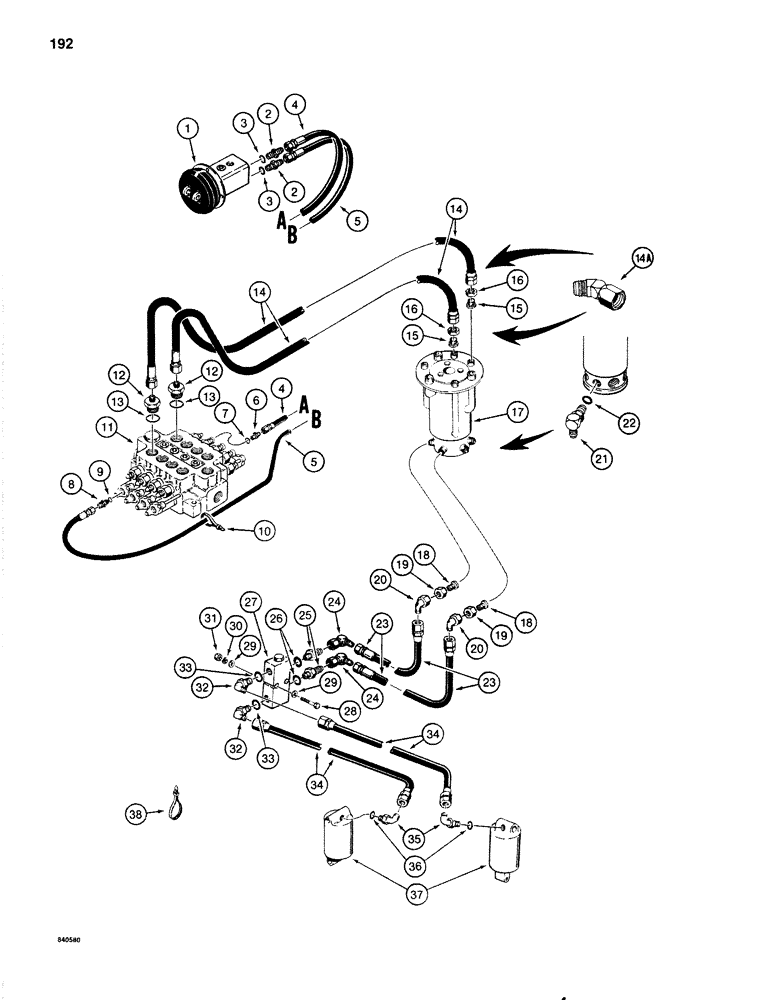

Запчасти Case 1080 (192) - HYDRAULIC LEVELER LINES, MODELS WITHOUT AUXILIARY HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - right-hand lever, Fig. 232 & 233A for correct valve and component parts

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, control valve ports, Incl. Ref.#3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

4

S241220

HOSE ASSY.

HOSE - to control valve, 70" (1778 mm) long

1шт.

5

S241222

HOSE ASSY.

HOSE - to control valve, 100" (2540 mm) long

1шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, at control valve, Incl. Ref.#7

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

8

218-5029

HYD CONNECTOR,9/16" - 18 Male JIC x 9/16" - 18 Male ORB

CONNECTOR, HYD, , Adapter, long, at control valve, Includes: Ref.#9 9/16"-18, 37º x 9/16"-18, Pipe

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

11

REF

INSTRUCTION

CONTROL VALVE - outside, Fig. 220 for correct valve and components parts

1шт.

12

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Includes: Ref.#13

2шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

14

S11231

HOSE ASSY.

HOSE - to swivel assembly, 68" (1727 mm) long

1шт.

14a

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, to hose, if used

2шт.

15

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - tube to hose

2шт.

16

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - adapter

2шт.

17

REF

INSTRUCTION

SWIVEL ASSEMBLY - parts list Fig. 246

1шт.

18

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - swivel to elbow, used on swivels with male ports

2шт.

19

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - adapter, used on swivels with male ports

3шт.

20

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, used on swivels with male ports

2шт.

21

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, used on swivels with female ports, Includes: Ref.#22

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

23

S11226

HOSE

- to check valve, 20" (508 mm) long

2шт.

24

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree

2шт.

25

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - striaght, Incl. Ref#24

2шт.

27

S516156

CHECK VALVE

- leveler, parts list Fig. 240

1шт.

28

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex head, 1/4" - 20 NC x 2-1/4"

2шт.

29

195-102

WASHER,1/4"

- flat, 1/4"

4шт.

30

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

31

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

32

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Check valve ports, Includes: Ref.#33 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

34

S11226

HOSE

- to leveler cylinders, 20" (508 mm) long

2шт.

35

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

At leveler cylinders, Includes: Ref.#36 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

37

S56810

CYLINDER

- leveler, parts list Fig. 260

2шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

33

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
