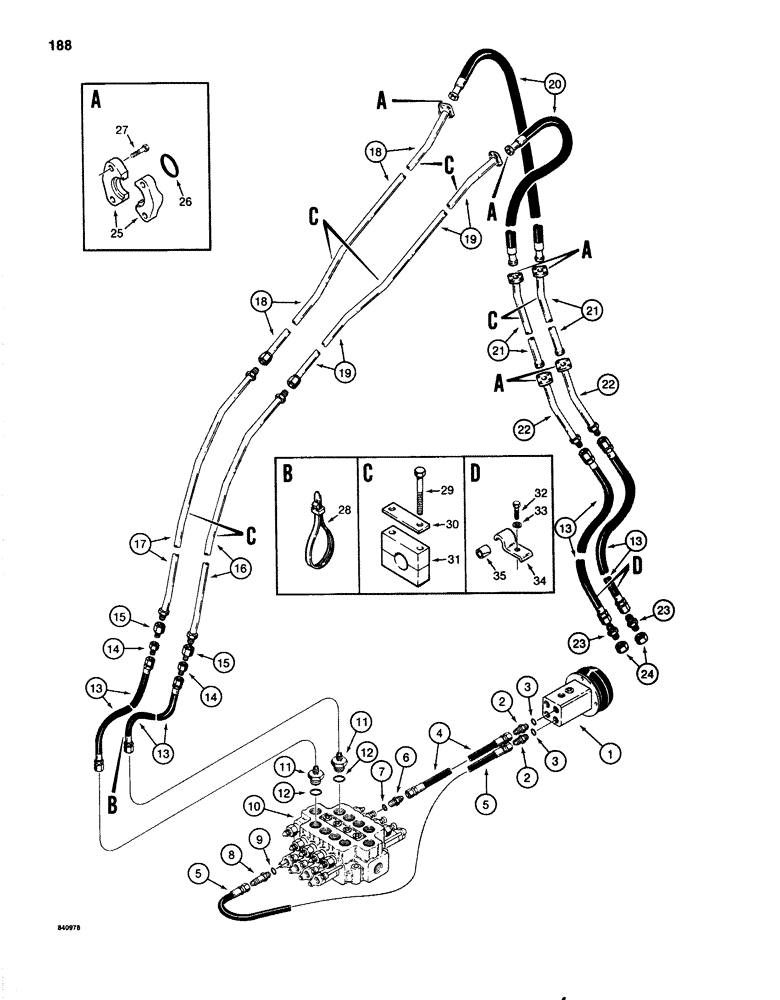

Запчасти Case 1080 (188) - AUXILIARY HYDRAULIC LINES, Y BOOM (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - left-hand lever, Figs. 232 & 233A for correct valve and component parts

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, control valve ports, Incl. Ref.#3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

4

S241222

HOSE ASSY.

HOSE - to outside valve, 70" (1778 mm) long

1шт.

5

S241220

HOSE ASSY.

HOSE - to outside valve, 100" (5240 mm) long

1шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, short, front valve cap, Incl. Ref.#7

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

8

218-5029

HYD CONNECTOR,9/16" - 18 Male JIC x 9/16" - 18 Male ORB

CONNECTOR, HYD, , Adapter, ong, rear valve cap, Includes: Ref.#9 9/16"-18, 37º x 9/16"-18, Pipe

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

10

REF

INSTRUCTION

CONTROL VALVE - outside, Fig. 220 for correct valve and component parts

1шт.

11

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Includes: Ref.#12

2шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

13

S11241

HOSE

- auxiliary equipment lines, 106" (2692 mm) long

4шт.

14

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

- 7/8" - 14 NF x 3/4" - 16 NC

2шт.

15

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

- 1-1/16" - 12 NF x 7/8" - 14 NF

2шт.

16

S613291

TUBE,1" OD

- hydraulic, right-hand

1шт.

17

S613292

LINE,1" OD

TUBE - hydraulic, left-hand

1шт.

18

S616471

TUBE ASSY.,1" OD

TUBE - hydraulic, left-hand

1шт.

19

S616472

TUBE ASSY.,1" OD x 101.99, 0.8" L

TUBE - hydraulic, right-hand

1шт.

20

S235670

HOSE

- tube to tube, 38" (965 mm) long

2шт.

21

S235673

TUBE,1" OD

- auxiliary equipment lines

2шт.

22

S235669

TUBE,0.5" OD

- auxiliary equipment lines

2шт.

23

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, tube ends

2шт.

24

218-755

CAP,37 Degree, 3/4"-16

Hose end 37º, 3/4"-16

2шт.

25

A12306

FLANGE

SPLIT FLANGE - tube

12шт.

26

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- tube

6шт.

27

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

24шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

29

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

24шт.

30

S112618

PLATE

- clamp

12шт.

31

S112616

CLAMP

- two piece

12шт.

32

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

33

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

34

S116280

CLAMP

- hose

4шт.

35

S75792

RING

- compression, hose clamp

4шт.
