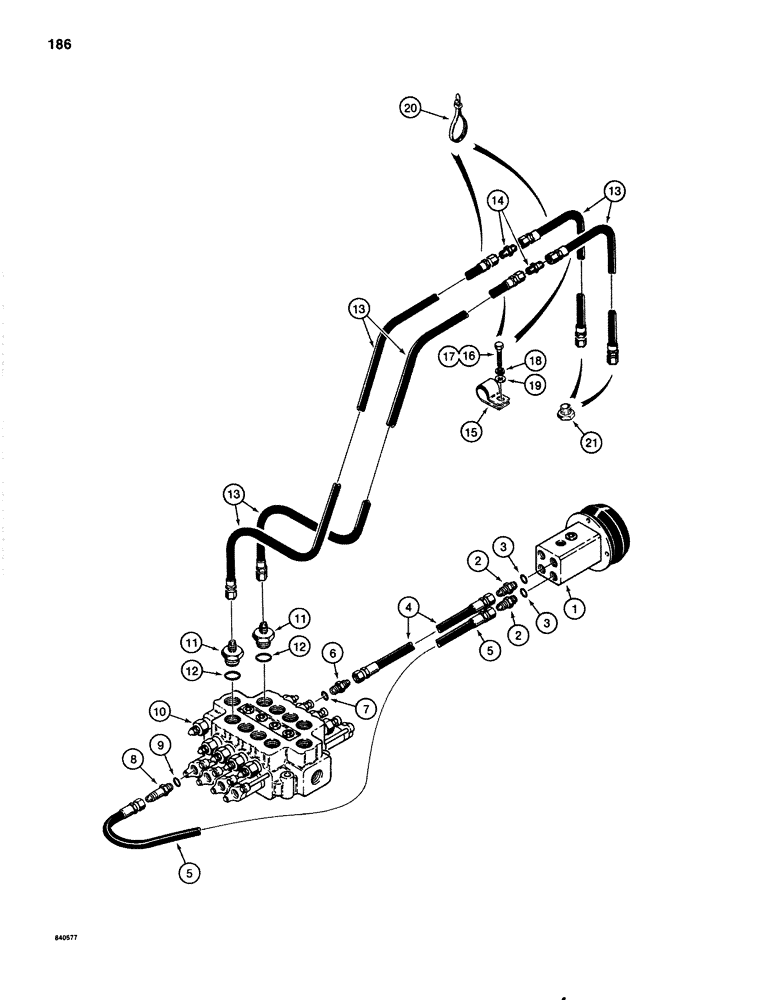

Запчасти Case 1080 (186) - AUXILIARY HYDRAULIC LINES, E BOOM (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - left-hand lever, Figs. 232 & 233A for correct valve and component parts

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, control valve ports, Incl. Ref.#3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

4

S241222

HOSE ASSY.

HOSE - to outside valve, 70" (1778 mm) long

1шт.

5

S241220

HOSE ASSY.

HOSE - to outside valve, 100" (5240 mm) long

1шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, short, front valve cap, Incl. Ref.#7

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

8

218-5029

HYD CONNECTOR,9/16" - 18 Male JIC x 9/16" - 18 Male ORB

CONNECTOR, HYD, , Adapter, long, rear valve cap, Includes: Ref.#9 9/16"-18, 37º x 9/16"-18, Pipe

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

10

REF

INSTRUCTION

CONTROL VALVE - outside, Fig. 220 for correct valve and component parts

1шт.

11

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Includes: Ref.#12

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

13

S75758

HOSE

- to auxiliary equipment, 246" (6248 mm) long

4шт.

14

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, hose to hose

2шт.

15

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- hose

16шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Used on dipper

6шт.

17

26-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

- hex head, 5/16" - 18 NC x 3-3/4", used on boom

10шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

16шт.

19

195-102

WASHER,1/4"

- flat, 5/16"

16шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

218-775

PLUG,3/4"-16, 37 Degree

Hose end 3/4"-16, 37º

2шт.
