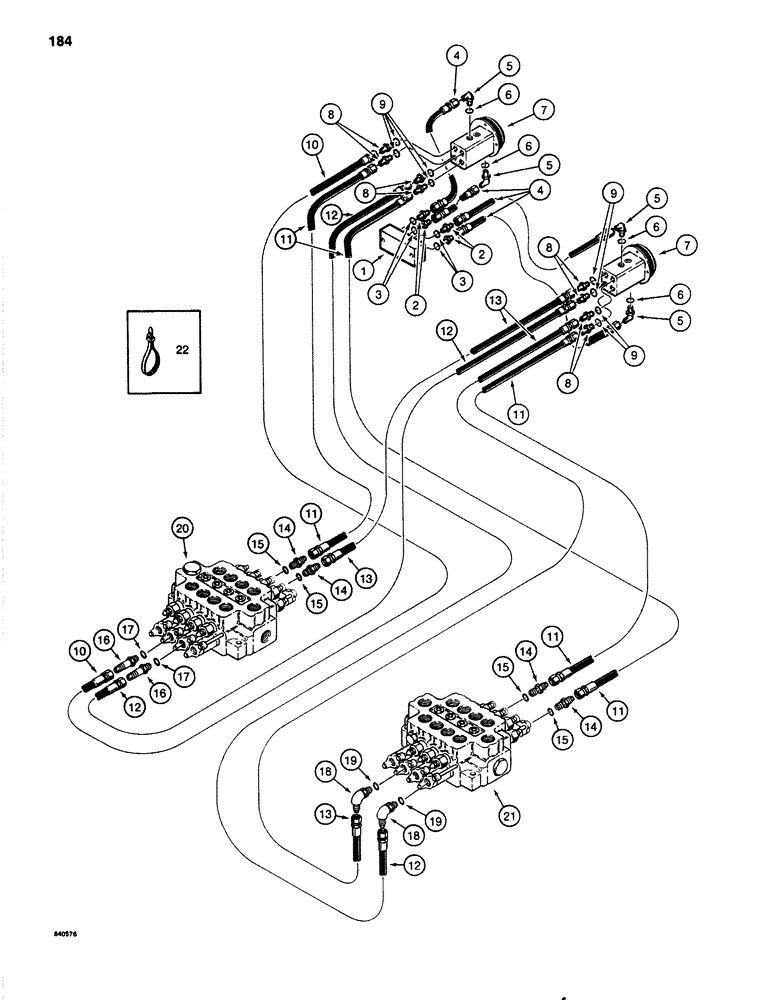

Запчасти Case 1080 (184) - HYDRAULIC CIRCUIT FOR CONTROLS, FOOT CONTROL VALVE LINES (35) - HYDRAULIC SYSTEMS

1

S236862

BLOCK

MANIFOLD - control circuits, Fig. 182 for manifold lines and attaching hardware

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, manifold ports, Incl. Ref.#3

4шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

4

S241217

HOSE ASSY.

HOSE - to foot control valves, 21" (533 mm) long

4шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, at foot control valves, Includes: Ref.#6

4шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

7

REF

INSTRUCTION

CONTROL VALVE - foot pedal, Figs. 232 & 233A for correct valve and component parts

2шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, control valve ports, Incl. Ref.#9

8шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

10

S241219

HOSE ASSY.

HOSE - to main control valves, 50" (1270 mm) long

1шт.

11

S241221

HOSE ASSY.

HOSE - to main control valves, 80" (2032 mm) long

3шт.

12

S241222

HOSE ASSY.

HOSE - to main control valves, 100" (2540 mm) long

2шт.

13

S241220

HOSE ASSY.

HOSE - to main control valves, 70" (1778 mm) long

2шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, main control valves, long, Incl. Ref.#15

4шт.

15

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

16

218-5029

HYD CONNECTOR,9/16" - 18 Male JIC x 9/16" - 18 Male ORB

CONNECTOR, HYD, , Adapter, main control valves, long, Includes: Ref.#17 9/16"-18, 37º x 9/16"-18, Pipe

2шт.

17

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

18

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, main control valves, Includes: Ref.#19

2шт.

19

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

20

REF

INSTRUCTION

CONTROL VALVE - outside, Fig. 220 for correct valve and components parts

1шт.

21

REF

INSTRUCTION

CONTROL VALVE - inside, Figs. 216 & 218 for correct valve and component parts

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
