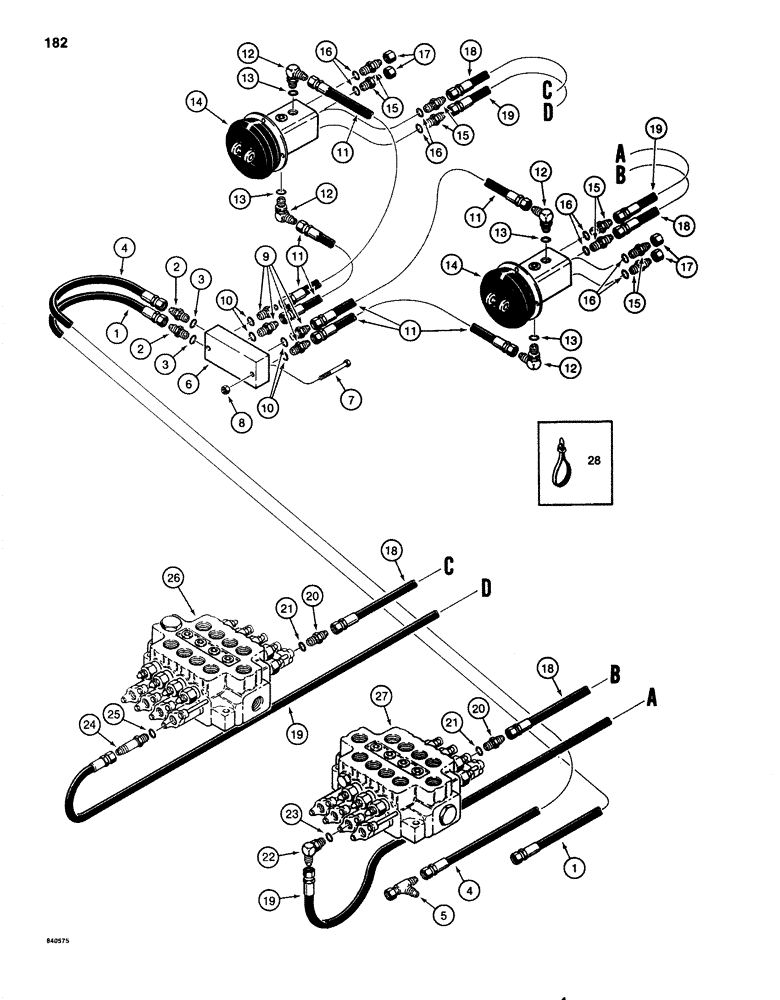

Запчасти Case 1080 (182) - HYDRAULIC CIRCUIT FOR CONTROLS, MANIFOLD AND HAND CONTROL VALVE LINES (35) - HYDRAULIC SYSTEMS

1

S241220

HOSE ASSY.

HOSE - from tee in solenoid valve line to manifold, 70" (1778 mm) long

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, manifold inlet and outlet, Incl. Ref.#3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

4

S241222

HOSE ASSY.

HOSE - manifold return, 100" (2540 mm) long

1шт.

5

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

at reservoir drain tube 37º, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

6

S236862

BLOCK

MANIFOLD - control circuits

1шт.

7

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

8

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, manifold ports, Incl. Ref.#10

4шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

11

S241217

HOSE ASSY.

HOSE - to hand control valves, 21" (533 mm) long

4шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, at hand control valves, Includes: Ref.#13

4шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

14

REF

INSTRUCTION

CONTROL VALVE - hand lever, Figs. 232 & 233A for correct valve and component parts

2шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, control valve ports, Incl. Ref.#16

8шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

17

218-754

CAP,37 Degree, 9/16"-18

Adapter, if used 37º, 9/16"-18

2-4шт.

18

S241220

HOSE ASSY.

HOSE - to main control valves, 70" (1778 mm) long

2шт.

19

S241222

HOSE ASSY.

HOSE - to main control valves, 100" (2540 mm) long

2шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, main control valves, Incl. Ref.#21

2шт.

21

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

22

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, inside control valve, Includes: Ref.# 23

1шт.

23

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

24

218-5029

HYD CONNECTOR,9/16" - 18 Male JIC x 9/16" - 18 Male ORB

CONNECTOR, HYD, , Adapter, outside control valve, long, Includes: Ref.#24 9/16"-18, 37º x 9/16"-18, Pipe

1шт.

25

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

26

REF

INSTRUCTION

CONTROL VALVE - outside, Fig. 220 for correct valve and components parts

1шт.

27

REF

INSTRUCTION

CONTROL VALVE - inside, Figs. 216 & 218 for correct valve and components parts

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
