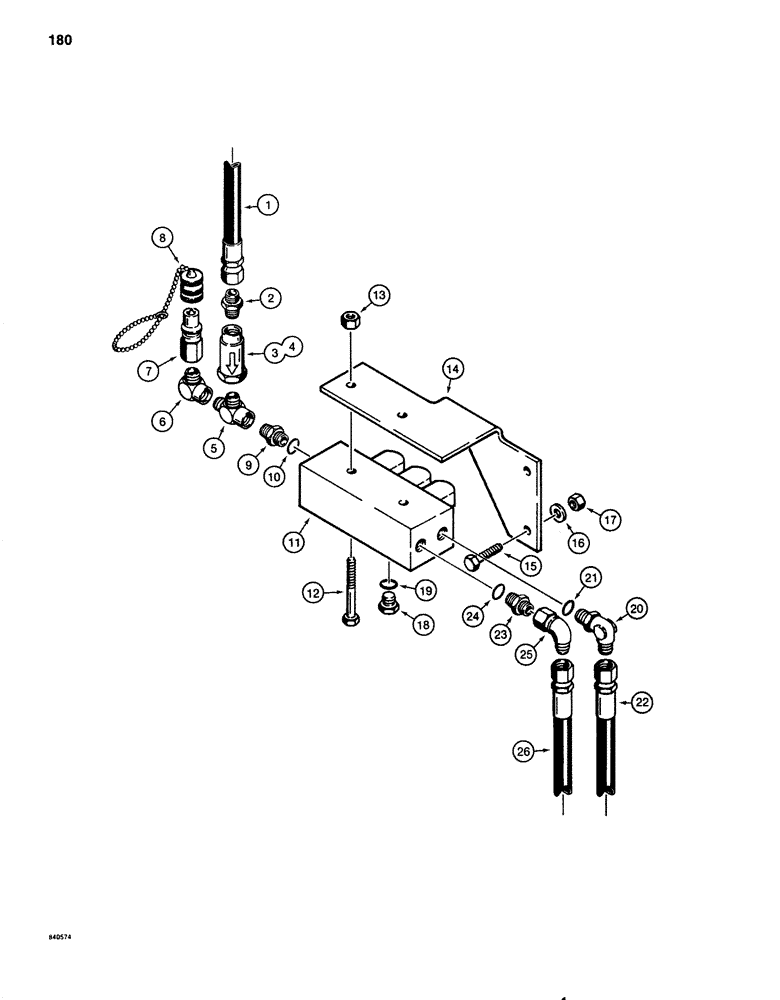

Запчасти Case 1080 (180) - HYDRAULIC CIRCUIT FOR CONTROLS, SOLENOID CONTROL VALVE CONNECTING LINES (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

HOSE - from pump, see Figs. 176 & 178 for hydraulic pump and lines

1шт.

2

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, hose to screen

1шт.

3

S242548

FILTER ASSY

FILTER - solenoid control valve, includes replaceable element, o-ring, and gasket, Includes: Ref.#4 - 4B

1шт.

4

N9426

ELEMENT

- filter screen, 25 micron, not shown

1шт.

4a

S6486

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

- filter, not shown

1шт.

4b

N13683

GASKET

- filter, not shown

1шт.

5

217-1175

TEE,1/8"-27 Male x 1/8"-27 Female Run

- filter outlet

1шт.

6

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

1шт.

7

S206607

DISC

QUICK DISCONNECT - test

1шт.

8

S206608

CAP

- dust, with chain

1шт.

9

218-5443

FITTING

ADAPTER - straight, inlet port, Includes: Ref.#10

1шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

11

S516951

VALVE

SOLENOID CONTROL VALVE - parts list Fig. 234

1шт.

12

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex head, 5/16' - 18 NC x 3", if used

2шт.

12

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

If used Hex, 3/8"-16 x 3", G5

2шт.

13

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, if used

2шт.

13

131-217

LOCK NUT

NUT - hex, self-locking, 3/8" - 16 NC, if used

2шт.

14

S516661

BRACKET

- valve mounting

1шт.

15

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

If used Hex, 5/16"-18 x 1 3/4", G5

2шт.

15

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

If used Hex, 3/8"-16 x 1 3/4", G5

2шт.

16

195521

WASHER - flat, 5/16", if used

2шт.

16

195525

WASHER

- flat, 3/8", if used

2шт.

17

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, if used

2шт.

17

131-217

LOCK NUT

NUT - hex, self-locking, 3/8" - 16 NC, if used

2шт.

18

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, plug - bottom port, single speed models only, includes ref.#19

1шт.

19

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, plug

1шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, manifold hose

1шт.

21

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

22

REF

INSTRUCTION

HOSE - to manifold, see Fig. 182

1шт.

23

218-5360

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - stright, return port, Includes: Ref.#24

1шт.

24

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

25

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Return hose 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

1шт.

26

S8581

HOSE ASSY.

HOSE - to return tube at reservoir, 48" (1219 mm) long

1шт.
