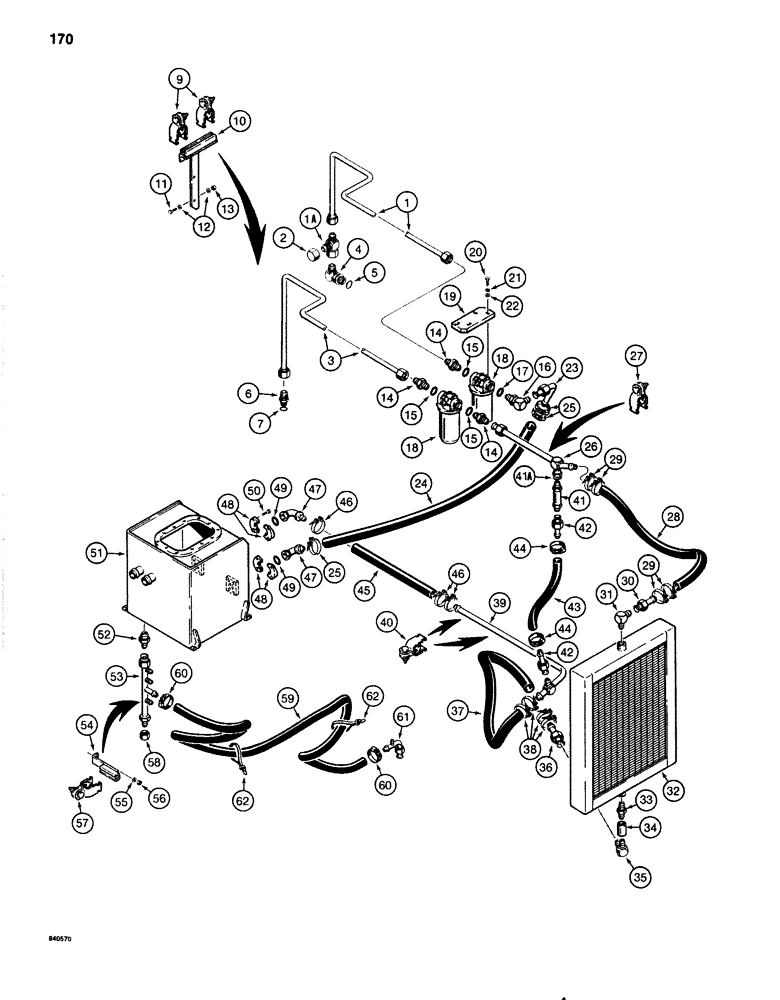

Запчасти Case 1080 (170) - HYDRAULIC OIL FILTER AND COOLER LINES (35) - HYDRAULIC SYSTEMS

1

S618419

TUBE ASSY.

TUBE - outside control valve to front filter

1шт.

1a

218-5481

TEE,37 Degree, 1 7/8"-12 x 1 7/8"-12, Fem Sw Run

- filter line

1шт.

2

218-758

CAP,37 Degree, 1 5/16"-12

- tee, if used

1шт.

3

S516598

TUBE ASSY.,1.5" OD

TUBE - inside valve to rear filter

1шт.

4

218-5276

ELBOW,90 Degree, 1 7/8"-12, 37 Degree x 1 5/8"-12, O-Ring

- 90 degree, at outside valve, Includes: Ref.#5

1шт.

5

2185011

O-RING - elbow

1шт.

6

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, at inside valve, Includes: Ref.#7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

9

S98324

CLAMP

- tube

2шт.

10

S234786

BRACKET

- filter support

1шт.

11

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

12

S95569

WASHER

- flat, 1/2", hardened

4шт.

13

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

14

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER - straight, tubes to filter, Includes: Ref.#17

3шт.

15

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- adapter

1шт.

16

218-5113

ELBOW,90 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

- 90 degree, front filter outlet

1шт.

17

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- elbow

1шт.

18

S616066

FILTER

- hydraulic oil, parts list Fig. 250

2шт.

19

S241848

BAR

PLATE - filter mounting

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

195-103

WASHER,5/16"

- flat, 3/8"

4шт.

23

S235862

TUBE,1.5" OD x 6.5, 6.5" L

- front filter outlet

1шт.

24

REF

INSTRUCTION

HOSE - to hydraulic reservoir, 16-1/2" (419 mm) long, cut from S118407 or S120500

1шт.

Hose - bulk roll, 1 1/2" (38mm) ID x 2 1/4" (57mm) OD x 60" (1524mm) long P/N S118407 or Hose - bulk roll, 1 1/2 (38mm) ID x 2" (51mm) OD x 60" (1524mm) long P/N S120500

1шт.

25

S85429

CLAMP

- hose, used with thick wall hose 2-1/4" (57 mm) OD only

3шт.

25

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

- hose, used with thin wall hose 2" (51 mm) OD only

3шт.

26

S516406

TUBE ASSY.,27.4, 1.5" L

TUBE - rear filter outlet

1шт.

27

S98324

CLAMP

- tube, see Ref.#14, Fig.150 or Ref.#14 Fig. 152 for clamp support

1шт.

28

REF

INSTRUCTION

HOSE - to oil cooler, 30" (762 mm) long, cut from S118407, or S120500

1шт.

Hose - bulk roll, 1 1/2" (38mm) ID x 2 1/4" (57mm) OD x 60" (1524mm) long P/N S118407 or Hose - bulk roll, 1 1/2 (38mm) ID x 2" (51mm) OD x 60" (1524mm) long P/N S120500

1шт.

29

S85429

CLAMP

- hose, used with thick wall hose 2-1/4" (57 mm) OD only

4шт.

29

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

- hose, used with thin wall hose 2" (51 mm) OD only

4шт.

30

S231593

TUBE ASSY.,1.5" OD x 5.5" L

TUBE - to oil cooler

1шт.

31

218-1069

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1"-11 1/2, NPTF

- 90 degree, oil cooler inlet

1шт.

32

S613672

COOLER, OIL

OIL COOLER - hydraulic oil

1шт.

S118407

HOSE,1.50" ID x 60.00"

- Bulk roll 1.50" ID x 60.00"

1шт.

S120500

HOSE,1.50" ID x 60.00"

- Bulk roll 1.50" ID x 60.00"

1шт.

33

217-1074

HYD CONNECTOR,1" - 11-1/2 NPTF

NIPPLE - 1" NPT

1шт.

34

217-1105

COUPLING

- 1" NPT

1шт.

35

S119263

ELBOW

- 90 degree, oil cooler inlet

1шт.

36

S231593

TUBE ASSY.,1.5" OD x 5.5" L

TUBE - oil cooler outlet

1шт.

37

REF

INSTRUCTION

HOSE - from oil cooler, 38" (965 mm) long, cut from S118407 or S120500

1шт.

Hose - bulk roll, 1 1/2" (38mm) ID x 2 1/4" (57mm) OD x 60" (1524mm) long P/N S118407 or Hose - bulk roll, 1 1/2 (38mm) ID x 2" (51mm) OD x 60" (1524mm) long P/N S120500

1шт.

38

S85429

CLAMP

- hose, used with thick wall hose 2-1/4" (57 mm) OD only

4шт.

38

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

- hose, used with thin wall hose 2" (51 mm) OD only

4шт.

39

S516756

TUBE ASSY.,41, 11.14" L

TUBE - to hydraulic reservoir

1шт.

40

S98324

CLAMP

- tube

2шт.

41

S105386

VALVE

CHECK VALVE - return line, Includes: Ref.#41A

1шт.

41a

A13084

O-RING,12.37" ID x 1.443" OD x 0.103"

- valve body to valve fitting

1шт.

42

S215412

TUBE,1.25" OD x 3" L

- return

2шт.

43

REF

INSTRUCTION

HOSE - return, 8-1/2" (216 mm) long, cut from S118465

1шт.

Hose - bulk roll, 1 1/4" (32mm,) ID x 180' (4572mm) long

1шт.

44

214-371

CLAMP,1.56"-1.81", T-Bolt

- hose

2шт.

45

REF

INSTRUCTION

HOSE - to hydraulic reservoir, 16" (406 mm) long, cut from S118407 or S120500

1шт.

Hose - bulk roll, 1 1/2" (38mm) ID x 2 1/4" (57mm) OD x 60" (1524mm) long P/N S118407 or Hose - bulk roll, 1 1/2 (38mm) ID x 2" (51mm) OD x 60" (1524mm) long P/N S120500

1шт.

46

S85429

CLAMP

- hose, used with thick wall hose 2-1/4" (57 mm) OD only

3шт.

46

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

- hose, used with thin wall hose 2" (51 mm) OD only

3шт.

47

S236134

- 90 degree, reservoir inlet

2шт.

48

A14157

FLANGE

SPLIT FLANGE - elbow

4шт.

49

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- elbow

2шт.

50

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- hex head, 1/2" - 13 NC x 1-1/4"

8шт.

51

REF

INSTRUCTION

RESERVOIR - hydraulic oil, see Fig. 168

1шт.

52

218-450

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-1/2" - 11-1/2 Male NPTF

ADAPTER - straight, reservoir bottom

1шт.

53

S516452

TUBE,20, 3" L

- reservoir drain

1шт.

54

S241343

BRACKET

- tube clamp

1шт.

55

S95569

WASHER

- flat, 1/2", hardened

1шт.

56

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

57

S98324

CLAMP

- tube

1шт.

58

218-760

CAP,37 Degree, 1 7/8"-12

- reservoir drain

1шт.

59

REF

INSTRUCTION

HOSE - return, 63" (1524 mm) long, cut from S118383

1шт.

Hose - bulk roll, 1" (25.4mm) ID x 192" (4877mm) long

1шт.

60

214-378

CLAMP,1.40"-1.56", T-Bolt

- hose

2шт.

61

S229693

TUBE,1" OD x 3, 3.75" L

- return, from swivel, port No. 1

1шт.

62

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

- Bulk roll 1.25" ID x 180.00", SAE 100R3

1шт.

S118407

HOSE,1.50" ID x 60.00"

- Bulk roll 1.50" ID x 60.00"

1шт.

S120500

HOSE,1.50" ID x 60.00"

- Bulk roll 1.50" ID x 60.00"

1шт.

S118383

HOSE,1.00" ID x 192.00", SAE 100R3

1.00" ID x 192.00" Bulk, SAE 100R3

1шт.
