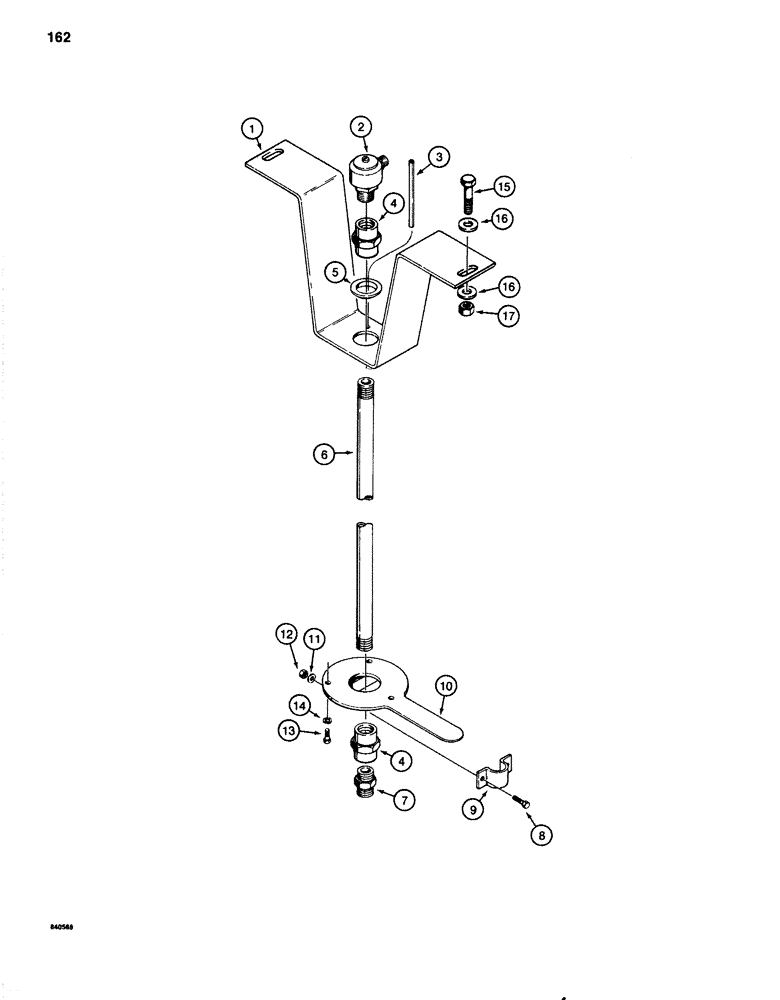

Запчасти Case 1080 (162) - INNER SWIVEL ASSEMBLY, SINGLE SPEED (35) - HYDRAULIC SYSTEMS

1

S229692

PLATE

BRACKET - swivel mounting

1шт.

2

S209351

FITTING

SWIVEL ASSEMBLY - upper, parts list Fig. 164

1шт.

3

138-169

LOCK PIN,5/16" x 4", Slotted

ROLL PIN - 5/16" x 4", Slotted

2шт.

4

S115683

COUPLING

- 1/4" NPT, special

2шт.

5

S71802

NYLON BEARING,0.756" ID x 1.187" OD x 0.375"

BEARING - swivel, nylon

1шт.

6

221-719

PIPE,Nipple, 1/4" NPT x 24 1/2"

NIPPLE - 1/4" NPT x 24-1/2" long

1шт.

7

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, lower

1шт.

8

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

9

A55980

CLAMP

- swivel tube

1шт.

10

S237399

LARGE PLATE

PLATE - inner swivel mounting

2шт.

11

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

13

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

16

195-104

WASHER,3/8"

- flat, ,plated 3/8"

4шт.

17

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.
