Запчасти Case 1080 (158) - BRAKE HYDRAULIC LINES, SINGLE SPEED (35) - HYDRAULIC SYSTEMS

1

S516559

VALVE

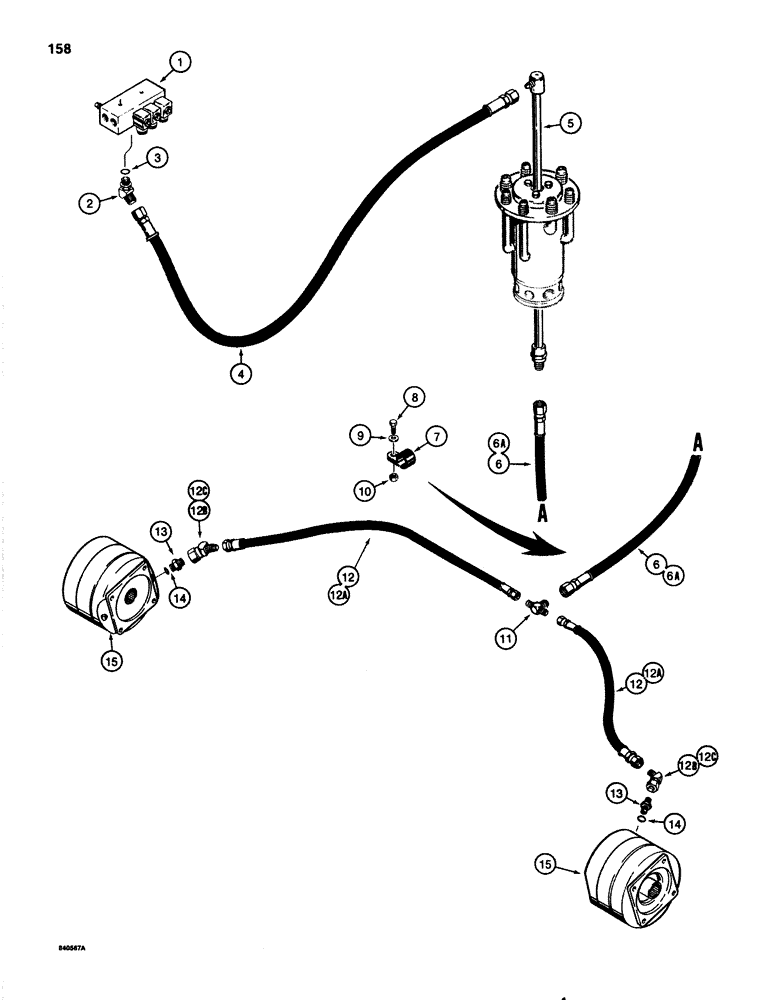

SOLENOID CONTROL VALVE - parts list Fig. 234

1шт.

2

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, at solenoid control valve, Includes: Ref.#3

1шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

4

S241219

HOSE ASSY.

HOSE - to inner swivel, 50" (1270 mm) long

1шт.

5

REF

INSTRUCTION

SWIVEL ASSEMBLY - inner, see Fig. 162 for inner swivel and related parts

1шт.

6

S241219

HOSE ASSY.

HOSE - inner swivel to tee, 50" (1270 mm) long, Serial Range: -6271525

1шт.

6a

S214218

HOSE - inner swivel to tee, 36" (914 mm) long, Start Serial: 6271525

1шт.

7

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

9

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

10

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

11

218-593

TEE,9/16"-18, 37 Degree

- brake hoses

1шт.

12

S99421

HOSE ASSY.

HOSE - to brakes, 23" (584 mm) long, Serial Range: -6271525

2шт.

12a

S242341

HOSE ASSY.

HOSE - to brakes, 27.5" (698 mm) long, Start Serial: 6271525

2шт.

12b

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 degree, Serial Range: -6271525

2шт.

12c

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, not shown, Start Serial: 6271525

2шт.

13

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, Includes: Ref.#14

2шт.

14

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- elbow

1шт.

15

REF

INSTRUCTION

BRAKE - track drive, see Fig. 166 for correct brake and component

2шт.
