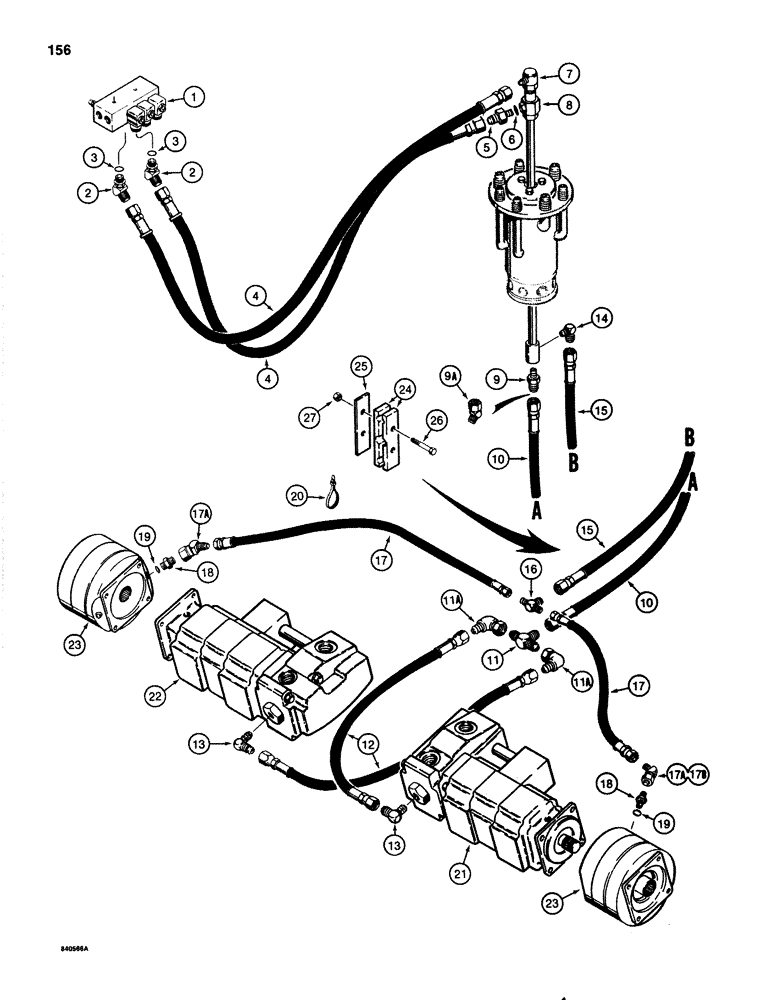

Запчасти Case 1080 (156) - DRIVE RANGE AND BRAKE HYDRAULIC LINES, TWO SPEED (35) - HYDRAULIC SYSTEMS

1

S516559

VALVE

SOLENOID CONTROL VALVE - parts list Fig. 234

1шт.

2

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, at solenoid control valve, Includes: Ref.#3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

4

S241219

HOSE ASSY.

HOSE - to inner swivel, 50" (1270 mm) long

2шт.

5

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, at inner swivel, lower port, Includes: Ref.#6

1шт.

6

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- adapter

1шт.

7

REF

INSTRUCTION

SWIVEL ASSEMBLY - inner, upper, see Fig. 164 for correct assembly and component parts

1шт.

8

REF

INSTRUCTION

SWIVEL ASSEMBLY - inner, lower, parts list Fig. 160

1шт.

9

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, Serial Range: -6271525

1шт.

9

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, Start Serial: 6271525

1шт.

9a

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, Serial Range: -6271525

1шт.

10

S11227

HOSE

- 36 (9914 mm) long, Serial Range: -6271525

1шт.

10

S241218

HOSE ASSY.

HOSE - 36" (914 mm) long, Start Serial: 6271525

1шт.

11

218-594

TEE,3/4"-16, 37 Degree

- drive range hoses, Serial Range: -6271525

1шт.

11

218-593

TEE,9/16"-18, 37 Degree

- drive range hoses, Start Serial: 6271525

1шт.

11a

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, Serial Range: -6271525

2шт.

11a

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, Start Serial: 6271525

2шт.

12

S11226

HOSE

- 20" (508 mm) long, Serial Range: -6271525

2шт.

12

S241217

HOSE ASSY.

HOSE - 21" (533 mm) long, Start Serial: 6271525

2шт.

13

218-1055

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, NPTF

- 90 degree, Serial Range: -6271525

2шт.

13

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, Start Serial: 6271525

2шт.

14

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, inner swivel, side port

1шт.

15

S241219

HOSE ASSY.

HOSE - 50" (1270 mm) long, Serial Range: -6271525

1шт.

15

S241218

HOSE ASSY.

HOSE - 36" (914 mm) long, Start Serial: 6271525

1шт.

16

218-593

TEE,9/16"-18, 37 Degree

- brake hoses

1шт.

17

S99421

HOSE ASSY.

HOSE - 23" (584 mm) long, Serial Range: -6271525

2шт.

17

S242341

HOSE ASSY.

HOSE - 27.5" (700 mm) long, Start Serial: 6271525

2шт.

17a

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 degree, Serial Range: -6271525

2шт.

17b

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, not shown, Start Serial: 6271525

2шт.

18

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, at brakes, Includes: Ref.#19

2шт.

19

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- elbow

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

S617342

MOTOR

- hydraulic, track drive, right-hand, parts list Fig. 146

1шт.

22

S617341

MOTOR

- hydraulic, track drive, left-hand, parts list Fig. 146

1шт.

23

REF

INSTRUCTION

BRAKE - track drive, see Fig. 166 for correct brake and component

2шт.

24

S235195

CLAMP - hose, wood, two-piece, Serial Range: -6271525

1шт.

24

S242661

CLAMP

- hose, wood, two-piece, Start Serial: 6271525

1шт.

25

S235194

BAR

PLATE - clamp

1шт.

26

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

27

131-70

NUT,1/2"-13, GB

NUT - hex, self-lockling, 1/2" - 13 NC

2шт.
