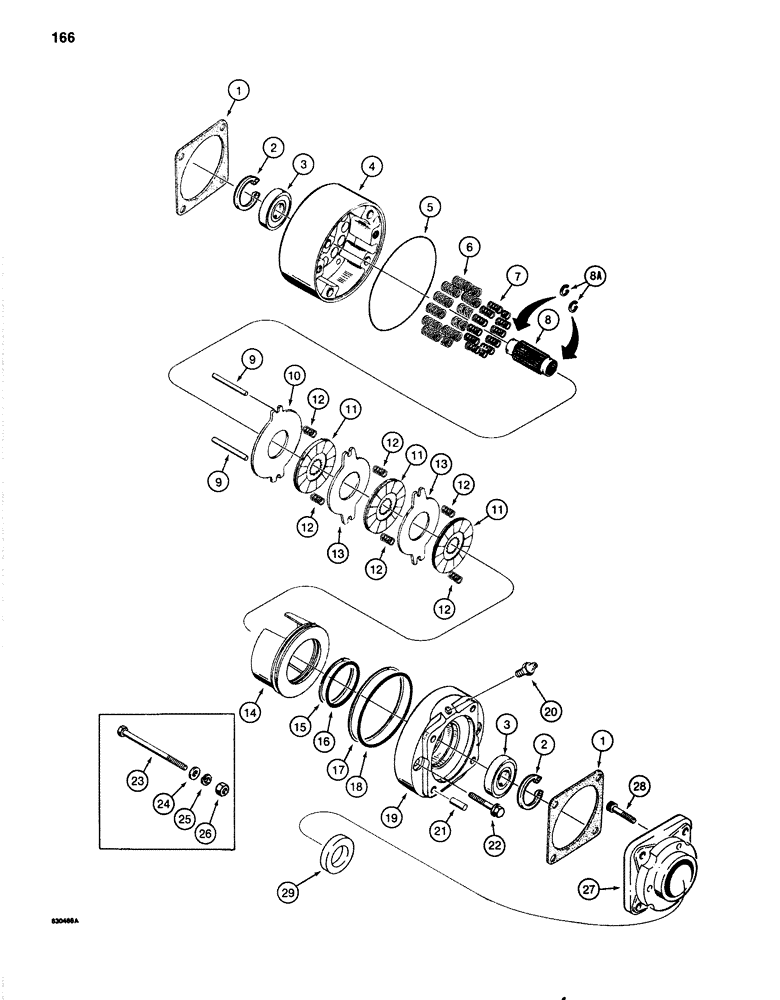

Запчасти Case 1080 (166) - TRACK DRIVE BRAKE (33) - BRAKES & CONTROLS

S512396

BRAKE

ASSEMBLY - track drive, with shaft bearings, if used, Includes: Ref.#s1 - 22

2шт.

S617727

BRAKE ASSY.

BRAKE ASSEMBLY - track drive, without shaft bearings, if used, Includes: Ref.#s1 - 22

2шт.

1

S107753

GASKET

- brake assembly, if used

2шт.

2

D66413

SNAP RING,2.688", Int, #268

Ring, Snap, , S512396 brake assembly only 2.688", Int, #268

2шт.

3

S107752

BALL BEARING,1.5748" ID x 2.6772" OD x 0.5906"

- S512396 brake assembly only

2шт.

4

S107751

HOUSING

- S512396 brake assembly only

1шт.

4

N8685

HOUSING

- S617727 brake assembly only

1шт.

5

S107759

PACKING

O-RING - housing seal

1шт.

6

S107755

SPRING

- compression, outer

12шт.

7

S107754

SPRING

- compression, inner

12шт.

8

S111908

SHAFT

- splined, S512396 brake assembly only

1шт.

8

N8686

SHAFT

- splined, S617727 brake assembly only

1шт.

8a

R16289

SNAP RING,1.06", Int, #106

Ring, Snap, , S617727 brake assembly only 1.06", Int, #106

2шт.

9

S107760

PIN

- torque

2шт.

10

S107756

DISC

- primary, fixed

1шт.

11

S109455

DISC

- rotating

3шт.

12

S107758

SPRING

- compression

6шт.

13

S109456

DISC

- fixed

2шт.

14

S107764

PISTON

- track brake

1шт.

15

S107767

BACK-UP RING

BACKUP RING - piston O-ring, small

1шт.

(3.75 I.D. x 4.12 O.D. x .07 THK) Teflon

1шт.

16

A26993

O-RING,0.21" Thk x 3.725" ID, -343, Cl 5, 75 Duro

- piston, small

1шт.

17

S107765

BACK-UP RING

BACKUP RING - piston O-ring, large

1шт.

(5.12 I.D. x 5.5 O.D. x .07 THK) Teflon

1шт.

18

S107763

O-RING

- piston, large

1шт.

19

S107769

PLATE

- power, S512396 brake assembly only

1шт.

19

N8687

PLATE

- power, S617727 brake assembly only

1шт.

20

S107762

SCREW

- air removal

1шт.

21

N60355

PLUG

- vinyl

1шт.

22

S114839

FLANGE BOLT

BOLT - hex flange head, special

2шт.

23

113-437

BOLT,Hex, 1/2" - 13 x 6", Gr 5

Mounts brake assembly to track drive motor (Replaces 113-4437) Hex, 1/2"-13 x 6", G5

8шт.

24

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- flat, 1/2" hardened

8шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

26

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

27

S510345

ADAPTER

- brake assembly to final drive transmission

2шт.

28

61-820

HEX SOC SCREW,1/2"-13 x 1 1/4"

BOLT - hex socket head, 1/2" - 13 NC x 1-1/2", grade 8, adapter to final drive transmission

6шт.

29

S96159

SEAL

OIL SEAL - transmission input shaft, use loctite sealant when installing in Ref.#27

2шт.

Loctite - 271 red, 50cc bottle

1шт.

B17423

LOCTITE

- 271 red, 50cc bottle

1шт.
