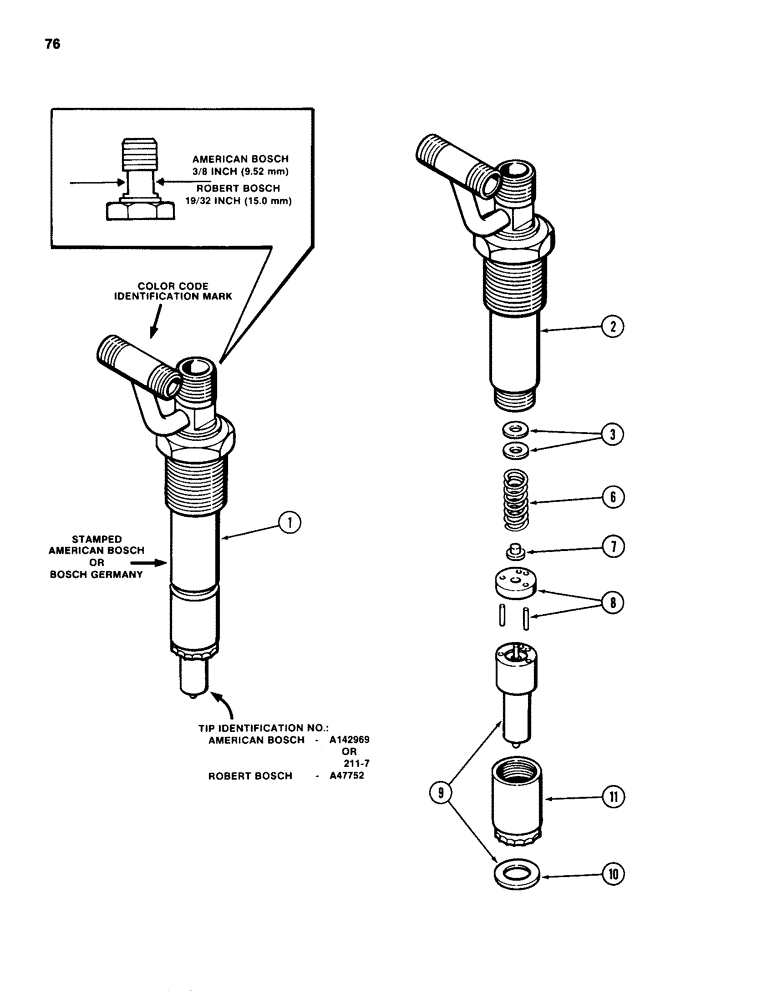

Запчасти Case 1080 (076) - FUEL INJECTOR NOZZLE, 504BDT DIESEL ENGINE, RED COLOR CODE (10) - ENGINE
№
Артикул
Название
Примечание
Количество
A156327
NOZZLE CAP
NOZZLE ASSEMBLY - fuel injection, Includes: Ref.#1 - 27
6шт.
A156327R
REMAN-INJECT NOZZLE
1080
6шт.
A156327C
CORE-NOZZLE, INJECT
Return Number
1шт.
1
NSS
NOT SOLD SEPARAT
NOZZLE ASSEMBLY - fuel injection, American Bosch, Includes: Ref.#s2 - 3
1шт.
Internal parts between the American Bosch and Robert Bosch injectors are not interchangeable. See Illustration for identification
1шт.
2
NSS
NOT SOLD SEPARAT
BODY - nozzle (Order A156327)
1шт.
A44860
SHIM
KIT - shim, nozzle opening pressure (One kit will repair six nozzles), Includes: Ref.#3
1шт.
3
NSS
NOT SOLD SEPARAT
SHIM - 0.062 inch (1.57 mm) 6 in kit
1шт.
3
NSS
NOT SOLD SEPARAT
SHIM - 0.002 inch (0.05 mm) 80 in kit
1шт.
3
NSS
NOT SOLD SEPARAT
SHIM - 0.007 inch (0.18 mm) 50 in kit
1шт.
3
NSS
NOT SOLD SEPARAT
SHIM - 0.010 inch (0.25 mm) 50 in kit
1шт.
3
NSS
NOT SOLD SEPARAT
SHIM - 0.025 inch (0.64 mm) 20 in kit
1шт.
6
A44864
SPRING
- nozzle pressure
1шт.
7
A44863
SEAT
- nozzle pressure spring
1шт.
8
A44862
VALVE
STOP - nozzle with pin (Includes dowel pins)
1шт.
9
A142969
NOZZLE CAP
TIP ASSEMBLY - nozzle injector, Includes: Ref.#10
1шт.
10
1342829C1
GASKET
- nozzle Replaces A76640
1шт.
When nozzle is removed from head, A76640 A gasket must be replaced before nozzle is installed b ack in head.
1шт.
11
A44861
NUT
NUT - nozzle end
1шт.
15
NSS
NOT SOLD SEPARAT
NOZZLE ASSEMBLY - fuel injection, Robert Bosch, Includes: Ref.#s16 & 17
1шт.
Internal parts between the American Bosch and Robert Bosch injectors are not interchangeable. See Illustration for identification
1шт.
16
NSS
NOT SOLD SEPARAT
BODY - nozzle (Order A156327)
1шт.
A48186
KIT
- shim, nozzle opening pressure (One kit will repair six nozzles), Includes: Ref.#17
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.00 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.04 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.08 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.10 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.14 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.18 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.20 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.24 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.28 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.30 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.34 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.38 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.40 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.44 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.48 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.50 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.54 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.58 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.60 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.64 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.68 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.70 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.74 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.78 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.80 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.84 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.88 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.90 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.94 mm (5 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - nozzle, 1.98 mm (5 in kit)
1шт.
18
A48198
SPRING
- nozzle pressure
1шт.
19
A48203
SEAT
- nozzle pressure spring
1шт.
20
A48199
VALVE
STOP - nozzle
1шт.
21
A48200
PIN
- valve stop
2шт.
22
A47752
NOZZLE INJECTION
TIP ASSEMBLY - nozzle injector, Includes: Ref.#23
1шт.
23
A76640
GASKET
- nozzle
1шт.
When nozzle is removed from head, A76640 A gasket must be replaced before nozzle is installed b ack in head.
1шт.
24
A48201
NUT
CAP NUT - nozzle end
1шт.
25
A48197
NUT
- nozzle
1шт.
26
A48202
RING
- retaining
1шт.
27
A48196
RING
- retaining
1шт.
