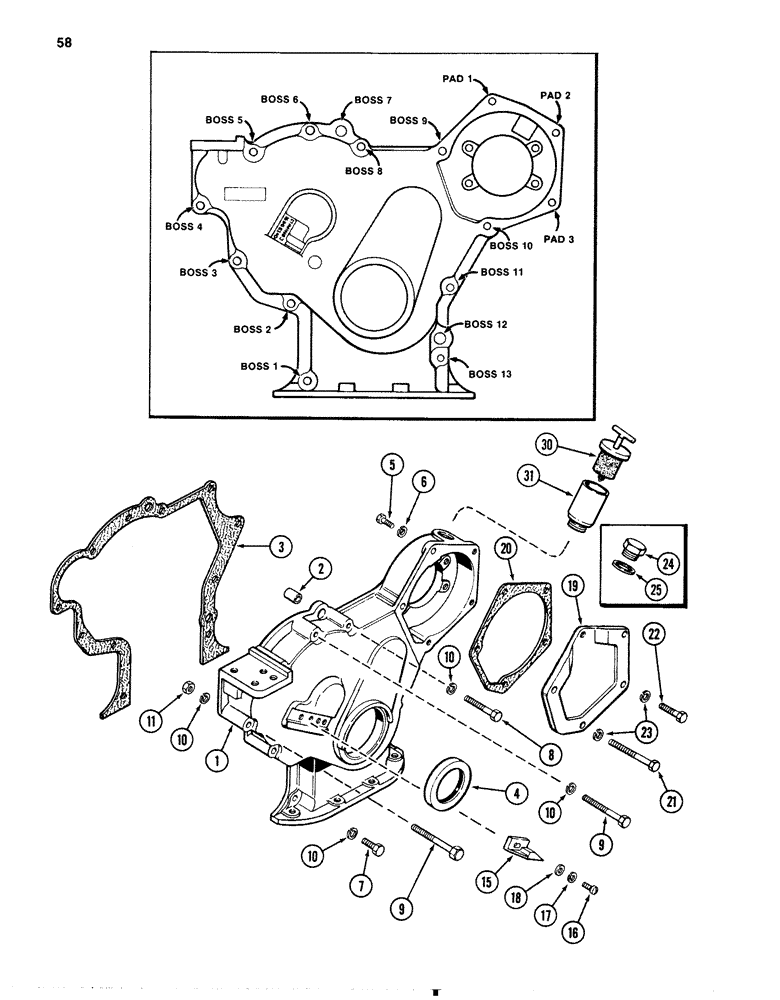

Запчасти Case 1080 (058) - TIMING GEAR COVER, 504BDT DIESEL ENGINE (10) - ENGINE

1

A166142

COVER

ASSEMBLY - timing gear, Includes: Ref.#2

1шт.

2

A58611

PIN

- dowel, 3/8 x 39/64 x 1" (Boss 7 & 12)

2шт.

3

A58612

GASKET

-, Serial Range: cover-block

1шт.

4

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft front

1шт.

5

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Pad 1) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

6

92-5

LOCK WASHER,5/16"

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Boss 1,2,11 & 13) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2" (Boss 3, 6 & 8)

3шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2" (Boss 4 & 5)

2шт.

10

92-6

LOCK WASHER,3/8"

9шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" NC

2шт.

15

A63911

INDICATOR

POINTER - timing

1шт.

16

169-119

SCREW,Sl Fil Hd, #12 - 24 x 3/4"

- slotted fillister head, No. 12-24 x 3/4"

1шт.

17

192-108

LOCK WASHER,#12

WASHER - lock, No. 12

1шт.

18

195-16

WASHER,#12

- 1/4 x 9/16 x 1/16" (6 x 14 x 2 mm)

1шт.

19

A61053

COVER

- drive gear, injection pump

1шт.

20

A58615

GASKET

- cover

1шт.

21

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2" (Boss 9 & 10)

2шт.

22

A151921

BOLT

- hex, drilled, 3/8 NC x 1-3/4" (Pad 2 & 3)

2шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

A21140

PLUG

- timing window

1шт.

25

A58613

SEALING WASHER

GASKET - window plug

1шт.

30

S236763

PLUG

- filler

1шт.

31

S236764

PIPE

- filler

1шт.
