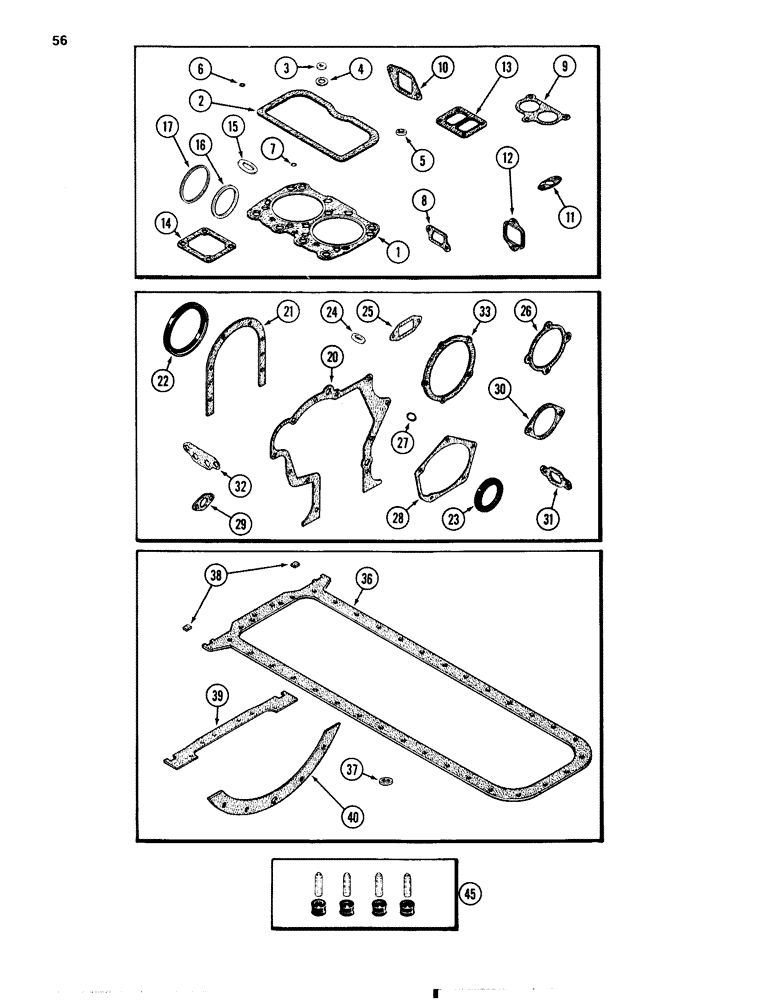

Запчасти Case 1080 (056) - ENGINE GASKET KITS, 504BDT DIESEL ENGINE (10) - ENGINE

A157300

GASKET

KIT - valve grind, Includes: Ref.#s1 - 17

1шт.

1

A138397

CYLINDER HEAD GASKET

- cylinder head

3шт.

2

A156960

CYLINDER HEAD GASKET,3.05mm Thk

- cylinder head cover

3шт.

3

A34133

GASKET

- breather tube bolt

3шт.

4

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather, Serial Range: tube-cover

3шт.

5

A142098

GROMMET

GASKET - rubber, valve cover nut

6шт.

6

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem ( Ref.# 45)

12шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft oil tube, 3/16 x 5/16 x 11/16" (5 x 8 x 2 mm)

3шт.

8

A58637

MANIFOLD GASKET

- water manifold

3шт.

9

A58639

GASKET

- thermostat housing

1шт.

10

A58662

MANIFOLD GASKET

- intake manifold

6шт.

11

A140252

MANIFOLD GASKET

- exhaust manifold

6шт.

12

A58892

GASKET,1.59mm Thk

- turbocharger drain tube

6шт.

13

A58899

GASKET,0.45mm Thk

- turbocharger base

2шт.

14

A58910

GASKET

- air intake elbow

1шт.

15

1342829C1

GASKET

WASHER - injection nozzle (Not used this application); Replaces A76640

6шт.

16

A138817

RING,2.64mm Thk

SEAL - exhaust (Not used this application)

1шт.

17

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger (Not used this application)

1шт.

A44075

GASKET KIT

- cylinder block, Includes: Ref.#s20 - 33

1шт.

20

A58612

GASKET

- timing gear cover

1шт.

21

A32830

GASKET

- rear oil seal retainer

1шт.

22

A62050

OIL SEAL

- oil, crankshaft rear

1шт.

23

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft front

1шт.

24

A58613

SEALING WASHER

GASKET - timing cover plug

1шт.

25

A58649

GASKET

- water pump body

1шт.

26

A58646

GASKET

- water pump

1шт.

27

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil pump, 15/16 x 1-1/8 x 3/32" (24 x 29 x 2 mm)

3шт.

28

A58615

GASKET

- injection pump drive cover

1шт.

29

A58617

GASKET

- auxiliary drive opening

1шт.

30

A58680

OIL PAN GASKET SET

- heat exchanger tube (Not used this application)

1шт.

31

A58670

GASKET

- heat exchanger, Serial Range: tube-block

1шт.

32

A58756

OIL PAN GASKET SET

- filter base (Not used this application)

1шт.

33

A76656

GASKET

- water pump body (Not used this application)

1шт.

A152479

GASKET KIT

- oil pan, Includes: Ref.#s36 - 40

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil, Serial Range: pan-block

1шт.

37

A27968

RING

- drain plug

1шт.

A152424

GASKET

KIT - rear seal

1шт.

38

NSS

NOT SOLD SEPARAT

GASKET - corner

2шт.

39

NSS

NOT SOLD SEPARAT

GASKET - flywheel housing

1шт.

40

A57966

GASKET

- lower

1шт.

45

M20614

SEAL KIT

SEAL KIT - valve stem (includes 4 seals and sleeve)

3шт.
