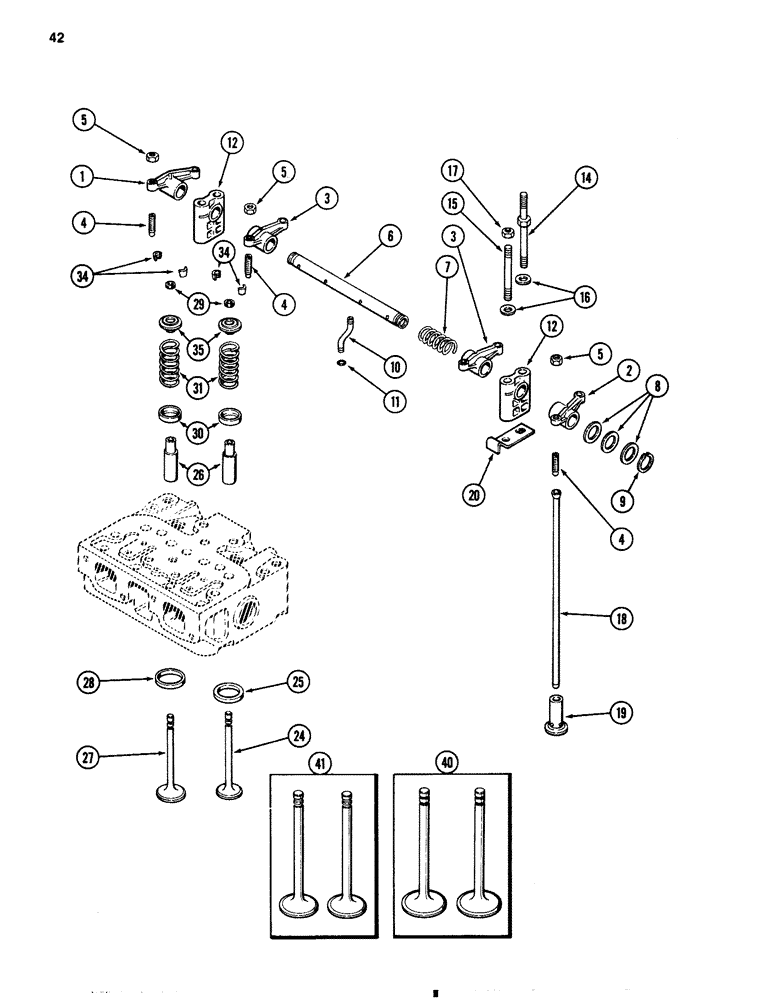

Запчасти Case 1080 (042) - VALVE MECHANISM, 504BDT DIESEL ENGINE (10) - ENGINE

1

A148137

ROCKER ARM

ARM ASSEMBLY - rocker, exhaust valve (first, third and fifth cylinder) Includes: Ref.#s 4 & 5)

3шт.

2

A148138

ARM

ASSEMBLY - rocker, exhaust valve (second, fourth and sixth cylinders) Includes: Ref.#s 4 & 5)

3шт.

3

A148136

ARM

ASSEMBLY - rocker intake valve

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting, rocker are

1шт.

5

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8 " NF

1шт.

6

A150545

SHAFT

- rocker arm

3шт.

7

A27877

SPRING

- rocker shaft

3шт.

8

A27878

WASHER

- thrust, 7/8 x 1-5/16 x 1/32" (22 x 33 x 1 mm)

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

6шт.

10

A58657

TUBE

- oil, rocker shaft lube

3шт.

11

A278800

O-RING - oil tube, 5/16" (8 mm)

3шт.

12

A61128

BRACKET

- rocker shaft

6шт.

14

A67121

STUD

- bracket and head cover

6шт.

15

A58659

STUD

- bracket, 7/16 NC x 4-5/16 "

6шт.

16

195-29

WASHER,7/16"

- 1/2 x 15/16 x 1/16" (13 x 24 x 2 mm)

12шт.

17

25-107

NUT,7/16"-14, G5

- hex, 7/16" NC

6шт.

18

A157328

ROD

- push

12шт.

19

A20865

TAPPET

LIFTER - push rod, standard

12шт.

19

A21857

TAPPET

LIFTER - push rod, oversize 0.010" (0.254 mm)

12шт.

20

A157197

STRAP

- rocker shaft bracket

6шт.

24

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order Ref 40) (Reference No. A58620)

6шт.

25

A66192

INSERT

- exhaust valve seat

6шт.

26

A41783

GUIDE

- valve stem (set of 2)

6шт.

27

NSS

NOT SOLD SEPARAT

VALVE - intake (Order Ref 41) (Reference No. A66193)

6шт.

28

A66191

INSERT

- intake valve seat

6шт.

29

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

30

A66328

SEAT

- valve spring

12шт.

31

A66444

SPRING

- valve

12шт.

34

A27872

LOCK

- valve spring

24шт.

35

A66336

ROTATOR

- valve, intake and exhaust

12шт.

40

A41753

VALVE

KIT - exhaust (Set of 2)

3шт.

41

A41754

VALVE

KIT - intake (Set of 2)

3шт.
