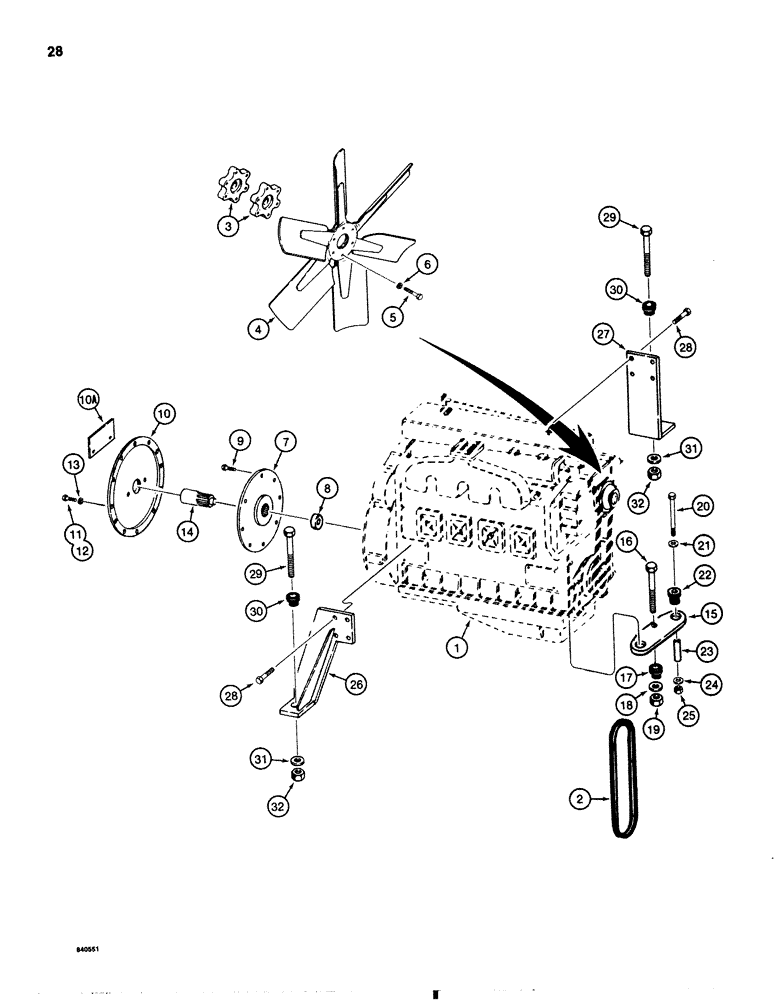

Запчасти Case 1080 (028) - DETROIT DIESEL ENGINE MOUNTING AND ADAPTING PARTS (10) - ENGINE

1

REF

INSTRUCTION

ENGINE - Detroit Diesel 4-71, for service see an authorized Detroit Diesel Allison service outlet

1шт.

L31230

ELEMENT

- oil filter, not shown

1шт.

S239799

SCREEN

ELEMENT - fuel strainer, not shown

1шт.

S515128

SCREEN

ELEMENT - fuel filter, not shown

1шт.

REF

INSTRUCTION

BELT SET - fan, not shown, for service see an authorized Detroit Diesel Allison service outlet

1шт.

2

S82985

V-BELT,36.70" L

BELT , Alternator 36.70" L

1шт.

3

S119284

SPACER

- fan 2

1шт.

4

S228380

FAN

PULLER FAN - engine cooling

1шт.

5

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

6шт.

6

192-30

WASHER - lock, 5/16"

6шт.

7

S618519

DAMPER

PLATE - drive

1шт.

8

S114980

ADAPTER

-, Serial Range: plate-flywheel

1шт.

9

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

- special, self-locking, 3/8" - 16 NC x 5/8"

8шт.

10

S52615

MOUNTING PARTS

MOUNTING PLATE - hydraulic pump

1шт.

10a

S238088

BRACKET

PLATE - relay mounting, if used

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

14

S242024

COUPLING

- pump drive shaft

1шт.

15

S235139

SUPPORT

- front engine mounting

1шт.

16

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Center Hex, 3/4"-10 x 4 1/2", G5

1шт.

17

S118529

SPACER

INSULATOR - rubber

1шт.

18

195-2270

WASHER,13/16" x 3" x .238", HDN

- flat, 3/4", special, lower

1шт.

19

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

1шт.

20

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Ends Hex, 5/8"-11 x 4 1/2", G5

2шт.

21

195-2270

WASHER,13/16" x 3" x .238", HDN

- flat, special, upper

2шт.

22

S93392

MOUNTING PARTS

INSULATOR - rubber, ends

2шт.

23

S113788

SPACER

SLEEVE - bolt

2шт.

24

S113789

WASHER

- flat

2шт.

25

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

26

S506059

BRACKET

- right-hand rear, engine mounting

1шт.

27

S506055

BRACKET

- left hand rear, engine mounting

1шт.

28

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

29

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex head, 3/4" - 10 NC x 4-1/4"

2шт.

30

S93392

MOUNTING PARTS

INSULATOR - rubber

2шт.

31

195-2270

WASHER,13/16" x 3" x .238", HDN

- flat, 3/4", special, lower

1шт.

32

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

2шт.
