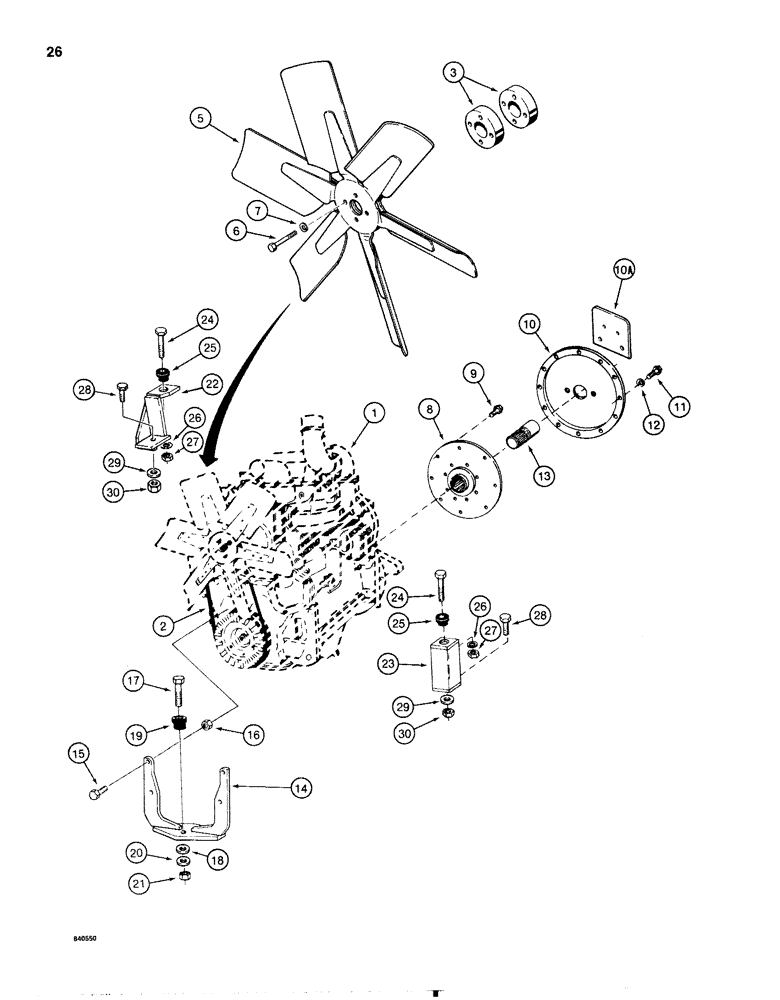

Запчасти Case 1080 (026) - CASE ENGINE MOUNTING AND ADAPTING PARTS (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
ENGINE - Case 504BDT Diesel, parts list Figs. 30-58 & 68-78
1шт.
2
A59296
SET OF BELTS,0.69" W x 60.00" L
SET OF 2 BELTS , Matched, Fan and alternator 0.69" W x 60.00" L
1шт.
3
A166111
SPACER
- fan, thick
2шт.
5
A173100
FAN
PULLER FAN - engine cooling
1шт.
A172891 Pusher Fan.
1шт.
6
113-257
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
4шт.
7
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
8
S515001
DRIVE PLATE
PLATE - drive
1шт.
9
121-204
BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8
- special, self-locking, 3/8" - 16 N.C. x 5/8"
8шт.
10
S52615
MOUNTING PARTS
MOUNTING PLATE - hydraulic pump
1шт.
10a
S238088
BRACKET
PLATE - relay mounting, if used
1шт.
11
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
10шт.
11
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
2шт.
12
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
12шт.
13
S229599
DRIVE SHAFT
COUPLING - pump drive shaft
1шт.
14
S240298
BRACKET
- front engine mounting
1шт.
16
131-450
NUT,3/4"-10
NUT - hex, self-locking, 3/4" - 10 NC
4шт.
17
113-718
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5
1шт.
18
195-45
WASHER,3/4"
Upper 3/4"
1шт.
19
S112578
MOUNTING PARTS
INSULATOR - rubber
1шт.
20
195-2270
WASHER,13/16" x 3" x .238", HDN
- flat, 3/4" special, lower
1шт.
21
131-450
NUT,3/4"-10
NUT - hex, self-locking, 3/4" - 10 NC
1шт.
22
S240370
BRACKET - right-hand rear, engine mounting
1шт.
23
S232820
BRACKET
- left-hand rear, engine mounting
1шт.
25
S112578
MOUNTING PARTS
INSULATOR - rubber
2шт.
26
195-2270
WASHER,13/16" x 3" x .238", HDN
- flat, 3/4" - 10 NC x 2-1/2"
2шт.
27
131-450
NUT,3/4"-10
NUT - hex, self-locking, 3/4" - 10 NC
2шт.
28
26-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8
- hex head, 3/4" - 10 NC x 2-1/2"
2шт.
29
S94643
WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk
- flat, 3/4", special
2шт.
30
131-450
NUT,3/4"-10
NUT - hex, self-locking, 3/4" - 10 NC
2шт.
Выбрано товаров: 32
