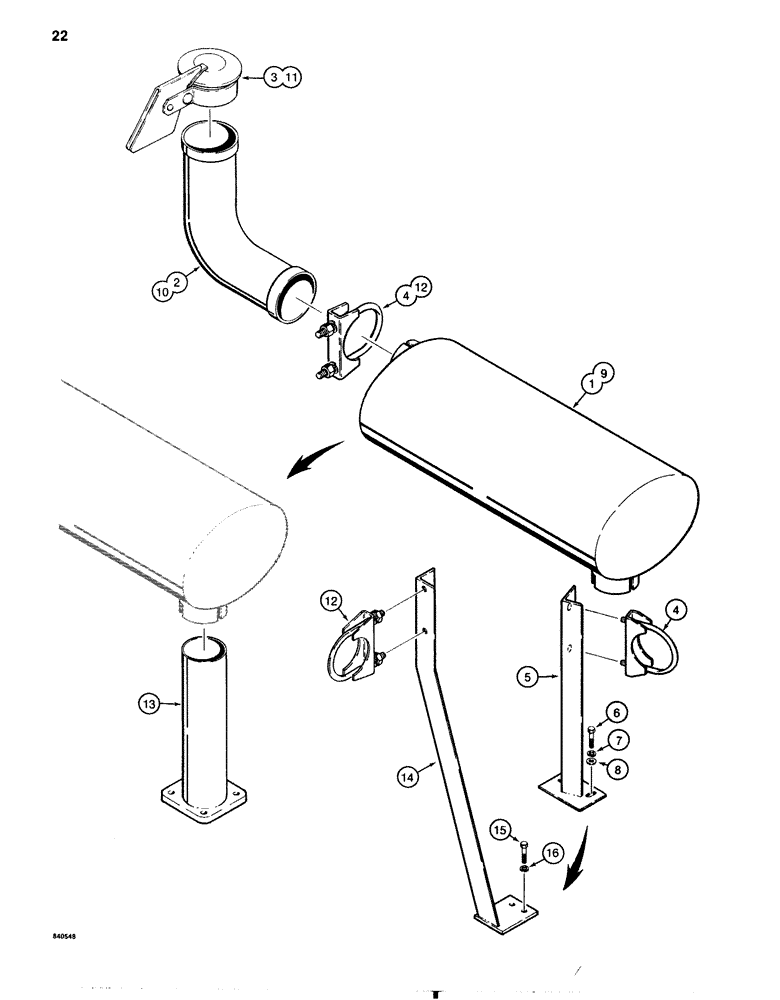

Запчасти Case 1080 (022) - MUFFLER AND EXHAUST SYSTEM, FOR CASE ENGINE (10) - ENGINE

1

S231674

MUFFLER

- engine exhaust

1шт.

2

S99158

ELBOW

EXTENSION PIPE - muffler exhaust

1шт.

3

A19795

CAP

- pipe

1шт.

4

L12413

CLAMP

- pipe

2шт.

5

S234041

BRACKET

- muffler

1шт.

6

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

- hex head, 3/8" - 16 NC x 1-1/4"

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened

2шт.

9

S231674

MUFFLER

- engine exhaust, for detroit diesel engine

1шт.

10

S99158

ELBOW

EXTENSION PIPE - muffler exhaust, for detroit diesel engine

1шт.

11

A19795

CAP

- pipe, for detroit diesel engine

1шт.

12

L12413

CLAMP

- pipe, for detroit diesel engine

2шт.

13

S233625

FLANGE ASSY

FLANGE - engine to muffler, uses engine hardware, for detroit diesel

1шт.

14

S236379

BRACKET

- muffler, for detroit diesel engine

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", for detroit diesel engine

2шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , for Detroit diesel engine 3/8"

2шт.
