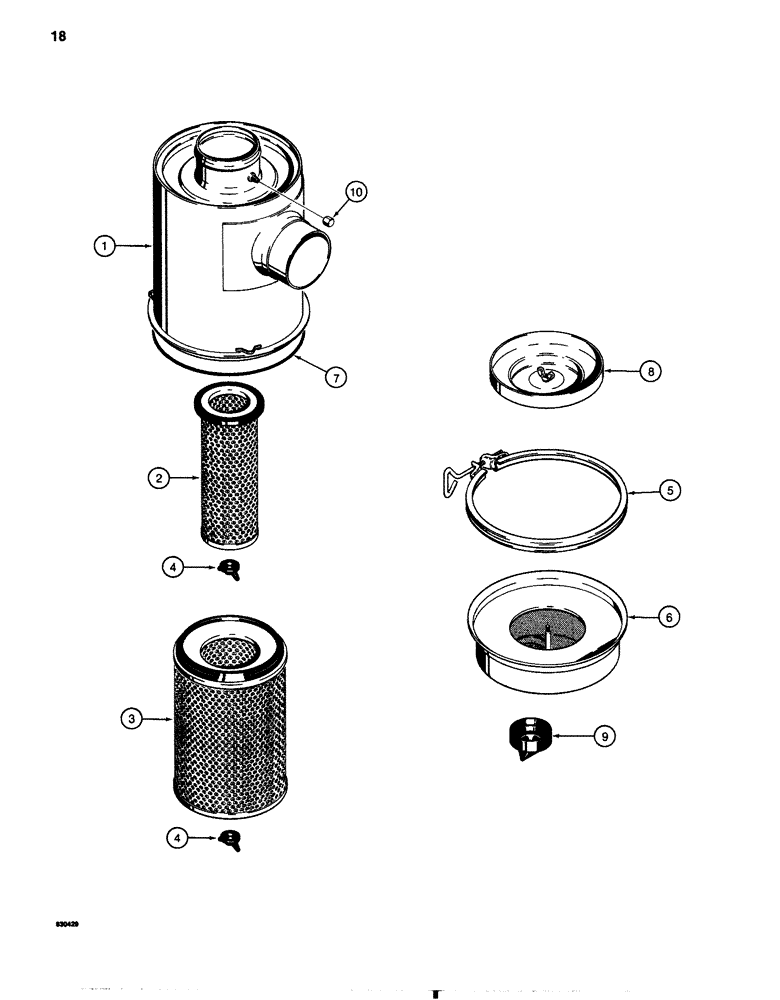

Запчасти Case 1080 (018) - AIR CLEANER (10) - ENGINE

S617625

AIR CLEANER

ASSEMBLY - complete, Includes: Ref.#s1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

N6660

AIR FILTER

ELEMENT - secondary, inner

1шт.

3

S231996

AIR FILTER

ELEMENT - primary, outer

1шт.

4

L35499

NUT

WING NUT -, Serial Range: element-body

2шт.

5

L30936

CLAMP

- body to dust cup

1шт.

6

N8431

CUP

- dust

1шт.

7

N6661

O-RING,10.62" ID x 0.27" Width

- cup to body

1шт.

8

S221314

BAFFLE

- dust cup

1шт.

9

L30414

VALVE

DUST VALVE - rubber

1шт.

10

R21180

CAP

- restrictor fitting, used when restriction indicator is removed

1шт.
