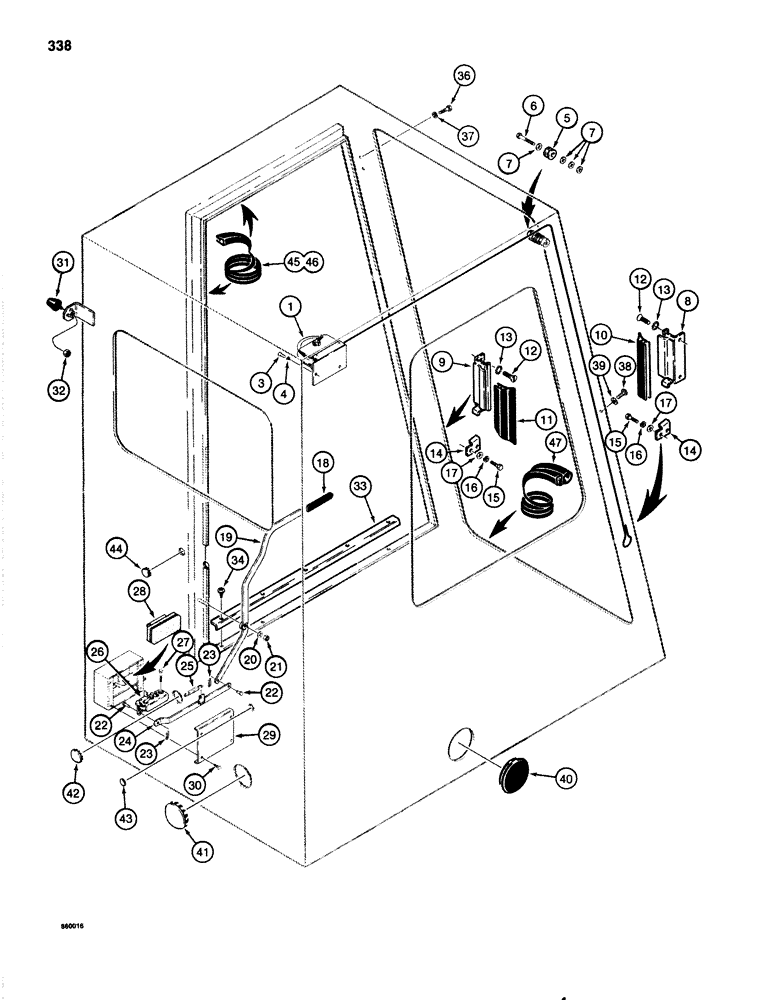

Запчасти Case 1080 (338) - CAB WINDSHIELD CABLES, DOOR RETAINER, AND MISCELLANEOUS, CAB. S/N 334940 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

N13087

REEL

- windshield cable, right-hand

1шт.

2

N13088

REEL

- windshield cable, left-hand, not shown

1шт.

3

182-279

SCREW

MACHINE SCREW - pan head slotted, 3/8" - 16 NC x 5/8"

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

S117521

PULLEY

- cable

2шт.

6

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

7

195-525

WASHER,3/8", SAE

- flat, 3/8", pulley alignment

1шт.

8

N13076

ASSEMBLY

TRACK - right-hand

1шт.

9

N13079

CHANNEL

TRACK - left-hand

1шт.

10

N60286

SEAL

- right-hand track

1шт.

11

N60285

SEAL

- left-hand track

1шт.

12

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

- flat head, slotted, 1/4" - 20 NC x 1/2"

4шт.

13

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

4шт.

14

S119610

WEDGE

- windshield adjusting

2шт.

15

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex head, 1/4" - 20 NC x 3/4", grade 8

4шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

17

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

4шт.

18

N13085

LEVER

GRIP - door release lever

1шт.

19

N13084

LEVER ASSY.

LEVER - door release

1шт.

20

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

21

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

22

K912968

PIN

CLEVIS PIN - connecting bar

2шт.

23

136-158

COTTER PIN,Int, 9/64" x .054"

HAIR PIN - 1-1/8" long

2шт.

24

N13083

BAR ASSY.

BAR - connecting, lever to door release latch

1шт.

25

N60098

SPRING

- door release latch

1шт.

26

N60267

LATCH

- door release

1шт.

27

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.

28

N13082

STOP

BRACKET - door retaining

1шт.

29

N13086

COVER ASSY

COVER - door retainer

1шт.

30

163-32

SCREW,Hex, #10 - 24 x 1/2"

MACHINE SCREW - hex head, No. 10 - 24 NC x 1/2", plated

4шт.

31

N13081

BUMPER

- for open door

1шт.

32

129-122

NUT,5/16"-24, G5

1шт.

33

S239626

ANGLE

COVER - door sill

1шт.

34

187-1109

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - pan Phillips head, self-tapping, No. 8 - 32 NC x 1/2", plated

5шт.

36

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

MACHINE SCREW - pan head slotted, 1/4" - 20 NC x 5/8", plated

2шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

38

182-300

SCREW,Slotted Pan Hd, 3/8"-24 X 3/4"

MACHINE SCREW - pan head slotted, 3/8" - 24 NF x 3/4"

1шт.

39

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

40

S117638

PLUG

- cab, side and rear, 4-1/2" hole

2шт.

41

205-72

HOLE PLUG BUTTON,3"

PLUG - cab, rear, hole 3"

1шт.

42

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - cab, rear, 1-1/2" hole

1шт.

43

205-15

HOLE PLUG BUTTON,3/8"

PLUG - cab, rear, hole 3/8"

2шт.

44

205-36

HOLE PLUG BUTTON,7/8"

PLUG - cab, rear, upper hole 7/8"

2шт.

45

REF

INSTRUCTION

TRIM - edge, cab frame at door opening, 59-1/2" (1511 mm) long

1шт.

Cut from bulk P/N S118479

1шт.

46

REF

INSTRUCTION

TRIM - edge, cab frame at door opening, 30-1/2" (775 mm) long

1шт.

Cut from bulk P/N S118479

1шт.

47

REF

INSTRUCTION

SEAL - windshield frame to cab, Ref.#36 on Fig. 332.

1шт.

Cut from bulk P/N S118479

1шт.

S118479

SEAL

TRIM - edge, cab frame, 90" (2286 mm) long, equals total length needed at door opening

1шт.
