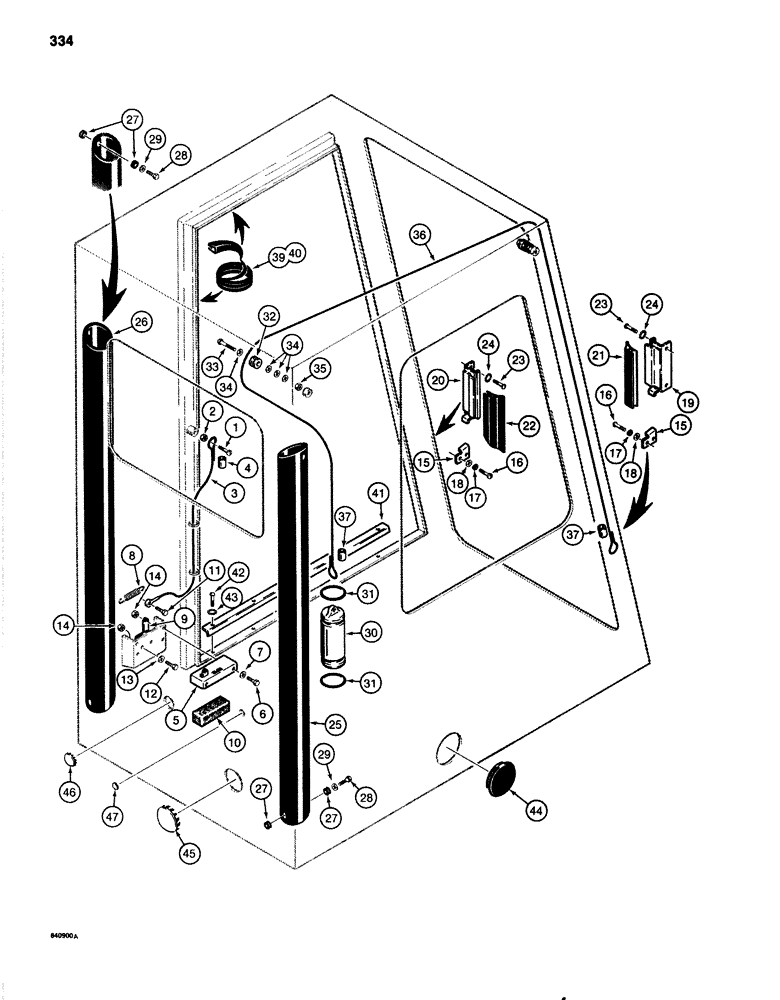

Запчасти Case 1080 (334) - CAB WINDSHIELD CABLES, DOOR RETAINER, AND MISCELLANEOUS, BEFORE CAB. S/N 334940 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

182-204

SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"

- pan head, 1/4" - 20 NC x 3/4"

1шт.

2

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

3

N60262

CABLE

- latch release

1шт.

4

N60268

SLEEVE

- cable splice

1шт.

5

S241527

COVER

- door latch

1шт.

6

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

7

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

8

N60291

SPRING

- latch return

1шт.

9

S241526

LATCH

- door stop

1шт.

10

N60265

STOP

INSULATOR - latch housing

1шт.

11

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

13

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

4шт.

14

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

5шт.

15

S119610

WEDGE

- windshield adjusting

2шт.

16

182-204

SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"

- pan head, 1/4" - 20 NC x 3/4"

4шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

18

195-518

WASHER,1/4", SAE

- flat, 1/4"

4шт.

19

S241529

ASSEMBLY

TRACK - right-hand

1шт.

20

S241528

ASSEMBLY

TRACK - left-hand

1шт.

21

N60286

SEAL

- right-hand track

1шт.

22

N60285

SEAL

- left-hand track

1шт.

23

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

- flat head, slotted, 1/4" - 20 NC x 1/2"

4шт.

24

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

4шт.

25

S239687

TUBE,3" ID x 54.4" L

- guide, right-hand counterweight

1шт.

26

S239688

TUBE,3" ID x 54.4" L

- guide, left-hand counterweight

1шт.

27

S75334

GROMMET,5/16" ID x 3/4" Groove Dia

- counterweight tube

8шт.

28

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

4шт.

29

195-103

WASHER,5/16"

- flat, 1/4"

4шт.

30

S239689

WEIGHT

COUNTERWEIGHT - windshield position

2шт.

31

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

- counterweight to tube

4шт.

32

S117521

PULLEY

- cable

4шт.

33

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

34

195-525

WASHER,3/8", SAE

- flat, 3/8", pulley alignment

1шт.

35

87016560

JAM NUT,Jam, 3/8"-16, G5

4шт.

36

S117548

METAL ROPE

CABLE - counterweight, 108" (3743 mm) long

2шт.

37

S117815

SLEEVE

- cable splice

4шт.

39

REF

INSTRUCTION

TRIM - edge, cab, 59-1/2" (1511 mm) long

1шт.

Cut from bulk P/N S118479

1шт.

40

REF

INSTRUCTION

TRIM - edge, cab, 30-1/2" (775 mm) long

1шт.

Cut from bulk P/N S118479

1шт.

S118479

SEAL

TRIM - edge, bulk, 90" (2286 mm) long

1шт.

41

S239626

ANGLE

COVER - door sill

1шт.

42

187-1109

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - pan Phillips head, self-tapping, No. 8 - 32 NC x 1/2", plated

5шт.

43

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

5шт.

44

S117638

PLUG

- cab, side, 4-1/2" hole

2шт.

45

205-72

HOLE PLUG BUTTON,3"

PLUG - cab, rear, hole 3"

1шт.

46

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - cab, rear, 1-1/2" hole

1шт.

47

205-15

HOLE PLUG BUTTON,3/8"

PLUG - cab, rear, hole 3/8"

6шт.
