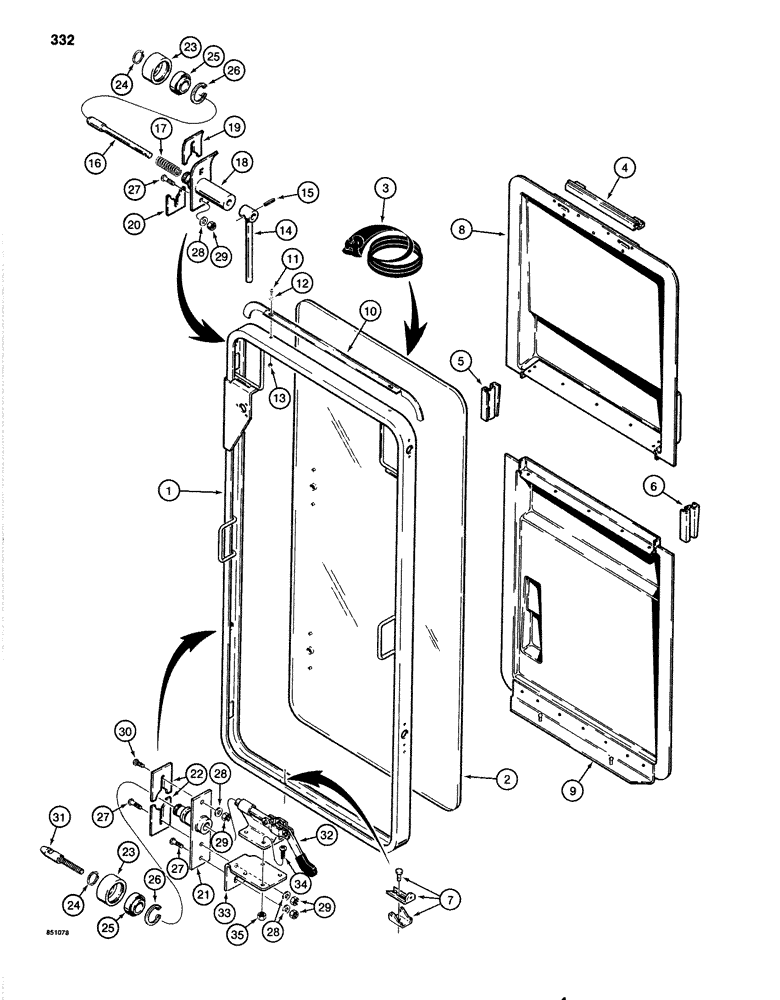

Запчасти Case 1080 (332) - CAB WINDSHIELD, CAB SERIAL NUMBER 334940 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

N13089

FRAME

- windshield

1шт.

2

S617808

GLASS,CAB

GLASS - windshield

3шт.

3

S118478

SEAL

- glass, windshield, 180" (4572 mm) long

1шт.

4

N60101

RETAINER

- vandal guard, upper

1шт.

5

N60287

RETAINER

- vandal guard, left-hand

1шт.

6

N60288

RETAINER

- vandal guard, right-hand

1шт.

7

N60093

RETAINER

- vandal guard, lower

2шт.

8

S616525

GUARD

- vandal, upper

1шт.

9

S616524

GUARD

- vandal, lower

1шт.

10

N13111

RETAINER

SUPPORT - windshield glass seal, upper

1шт.

11

182-526

SCREW,Cross Pan Hd, #10 - 24 x 3/8"

MACHINE SCREW - pan Phillips head, No. 10 -24 NC x 3/8", plated

2шт.

12

195-513

WASHER,#10

- flat, No. 10, plated

2шт.

13

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

14

S239621

HANDLE

- windshield lock, upper

2шт.

15

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

2шт.

16

S239677

PIN

- roller, upper, windshield lock

2шт.

17

A58271

SPRING

- lock pin, upper

2шт.

18

N13093

SHAFT

BRACKET - support, upper roller

2шт.

19

S118726

SHIM

- upper roller bracket, curved

1шт.

20

S118727

SHIM

- upper roller bracket, straight

1шт.

21

N13092

SHAFT

BRACKET - support, lower roller

2шт.

22

S118725

SHIM

- lower roller bracket

1шт.

23

N13090

ROLLER

- windshield track

4шт.

24

T25683

SNAP RING,#75, Ext

RING - Snap, , roller #75, Ext

4шт.

25

N13107

BEARING, BALL,0.754" ID x 1.38" OD x 0.375"

BALL BEARING - roller

4шт.

26

R22120

SNAP RING,1.312", Int, #131

Ring, Snap, , ball brg 1.312", Int, #131

4шт.

27

182-204

SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"

MACHINE SCREW - pan head slotted, 1/4" - 20 NC x 3/4", plated

8шт.

28

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

10шт.

29

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

10шт.

30

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

MACHINE SCREW - pan head slotted, 1/4" - 20 NC x 5/8", plated, lower roller, upper shim mounting

1шт.

31

N13108

PIN

- lower roller

2шт.

32

N13109

LEVER

- bracket, lower roller, pin release

2шт.

33

N13110

BRACKET

- lower lever to windshield frame

2шт.

34

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 5/8", plated

8шт.

35

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

8шт.

36

REF

INSTRUCTION

SEAL - windshield frame to cab, 63" (1600 mm) long

1шт.

Cut from bulk P/N S118480

1шт.

S118480

SEAL

SEAL - windshield, bulk, 50 ft (15.24 m) long

1шт.

Cut from bulk P/N S118480

1шт.
