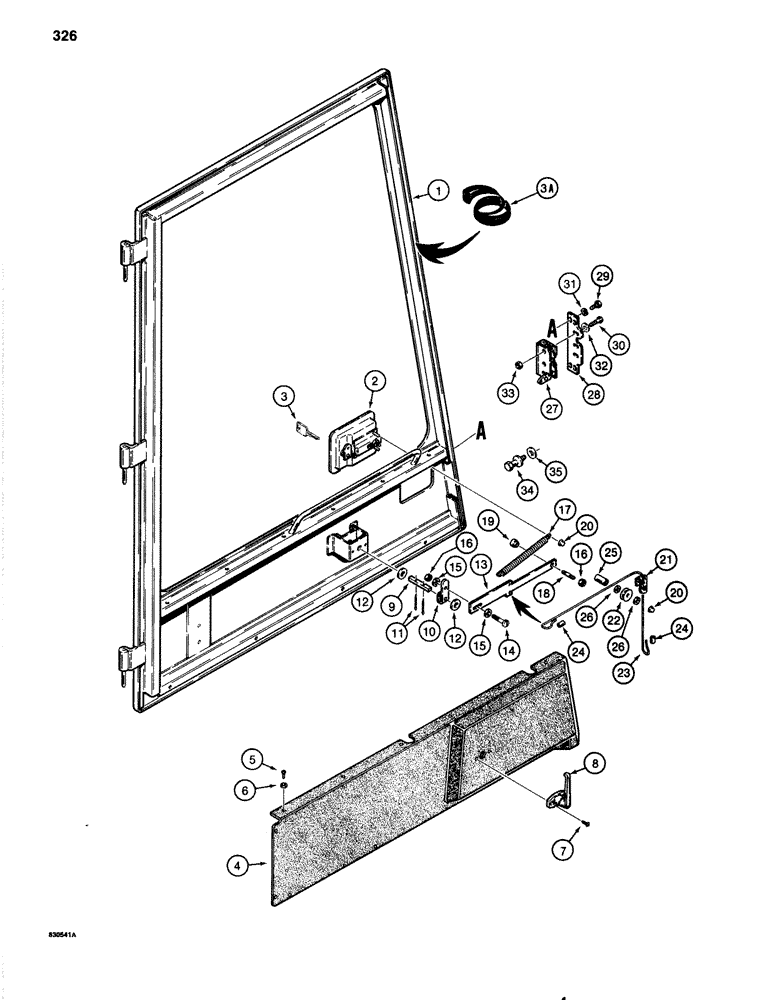

Запчасти Case 1080 (326) - CAB DOOR ASSEMBLY, BEFORE CAB SERIAL NUMBER 334940 (90) - PLATFORM, CAB, BODYWORK AND DECALS

S956671

DOOR ASSY.

DOOR ASSEMBLY - cab, Includes: Ref.#s1 & 4 on Fig. 324, Also Includes: Ref.#1 -33

1шт.

1

S119249

DOOR

- cab

1шт.

2

S239629

LATCH

- door, outside, Includes: Ref.#3

1шт.

3

N60100

KEY

- door latch

1шт.

3a

S119612

DOOR SEAL

- door edge, 202" (5131 mm) long

1шт.

4

S617800

PANEL

- access, lower door

1шт.

5

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

MACHINE SCREW - No. 10 - 24 NC x 3/4", Phillips oval head, black

12шт.

6

F64315

WASHER

- special trim

12шт.

7

179-165

SCREW,Cross Oval Hd, 1/4" - 20 x 5/8"

MACHINE SCREW - 1/4" - 20 NC x 5/8", Phillips oval head, plated

2шт.

8

S118652

HANDLE

- inside, cab door

1шт.

9

S118653

SHAFT

-, Serial Range: handle-link

1шт.

10

S117526

LATCH

LINK - shaft, includes screw

1шт.

11

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

12

195-104

WASHER,3/8"

- flat, 3/8', plated

2шт.

13

N60278

LINK

- cable connecting

1шт.

14

182-204

SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"

MACHINE SCREW - pan head, 1/4" - 20 NC x 3/4", plated

1шт.

15

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

16

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

17

S119613

SPRING

- return, handle

1шт.

18

S118648

STUD

- link

1шт.

19

N60261

SPACER

- link

1шт.

20

S118721

NUT

- push-on type

2шт.

21

S118720

GUIDE

- cable

1шт.

22

S118723

SHEAVE

- cable

1шт.

23

S119184

CABLE

-, Serial Range: link-latch

1шт.

24

S118651

SLEEVE

- cable splice

2шт.

25

S118722

SPACER

- cable sheave

1шт.

26

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

27

N60267

LATCH

- door, rotary

1шт.

28

N60274

PLATE

- latch support

1шт.

29

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

30

182-209

SCREW,Sl Pan Hd, 1/4" - 20 x 1 1/2"

- machine, Philiips head, 1/4" - 20 NC x 1-1/2"

3шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

32

195-518

WASHER,1/4", SAE

- flat, 1/4"

3шт.

33

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

3шт.

34

S119611

PLATE

STRIKER - door latch

1шт.

35

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.
