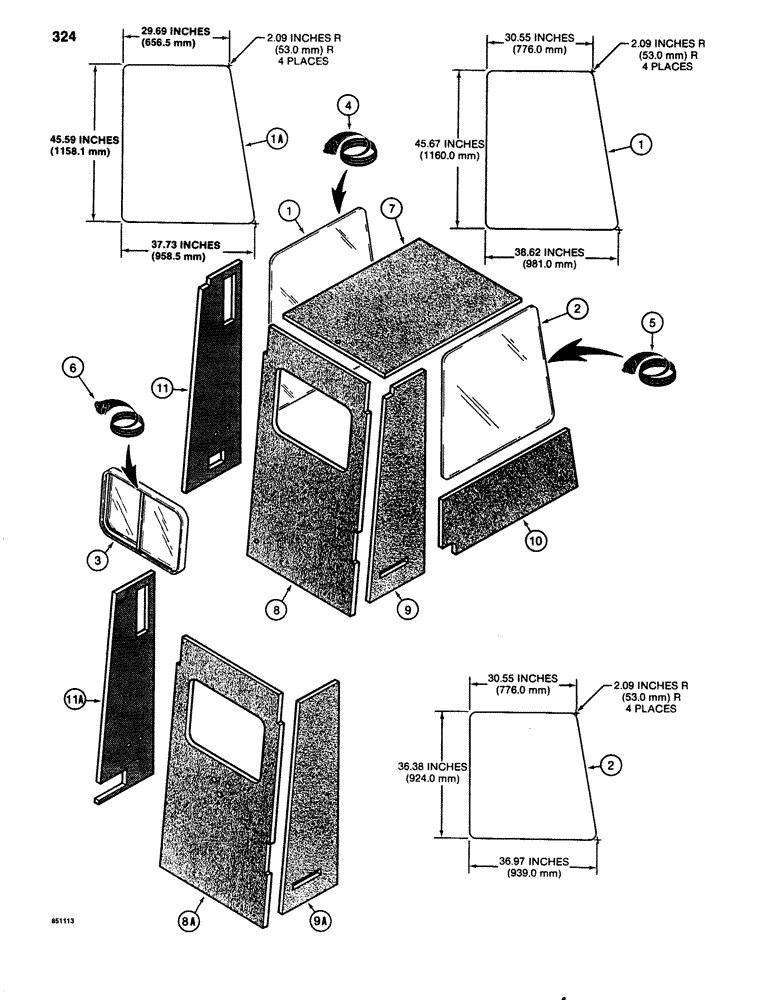

Запчасти Case 1080 (324) - CAB WINDOWS, SEALS, AND INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
LEXAN - window, in door, part of S956671 door assembly, see Fig. 326, Serial Range: -334940
1шт.
Replacement of reference numbers 1, 1A and 2 to be ob- tained from local source. Material to be 1/4" (6.35 mm) thick Lexan bronze tint with crowned edges.
1шт.
1a
REF
INSTRUCTION
LEXAN - window, in door, part of N13-73 door assembly, see Fig. 329, Start Serial: 334940
1шт.
Replacement of reference numbers 1, 1A and 2 to be ob- tained from local source. Material to be 1/4" (6.35 mm) thick Lexan bronze tint with crowned edges.
1шт.
2
REF
INSTRUCTION
LEXAN - window, right-hand
1шт.
Replacement of reference numbers 1, 1A and 2 to be ob- tained from local source. Material to be 1/4" (6.35 mm) thick Lexan bronze tint with crowned edges.
1шт.
3
S516738
WINDOW
ASSEMBLY - sliding, rear
1шт.
4
REF
INSTRUCTION
SEAL - Lexan, used with cab door window, 157-5/8" (4003 mm) long
1шт.
Cut from bulk P/N S118468
1шт.
5
REF
INSTRUCTION
SEAL - Lexan, used with right-hand cab window, 137-3/16" (3485 mm) long
1шт.
Cut from S 119223
1шт.
6
REF
INSTRUCTION
SEAL - Lexan, used with rear sliding window, 84-11/16" (2151 mm) long
1шт.
Cut from P/N N6492
1шт.
7
S241506
INSULATOR
INSULATION - cab, top
1шт.
8
S516036
INSULATOR
INSULATION - cab, rear, Serial Range: -334940
1шт.
8a
N13078
INSULATOR
INSULATION - cab, rear, Start Serial: 334940
1шт.
9
S241504
INSULATOR
INSULATION - cab, right-hand, rear, Serial Range: -334940
1шт.
9a
N13077
INSULATOR
INSULATION - cab, right-hand, rear, Start Serial: 334940
1шт.
10
S241505
INSULATOR
INSULATION - cab, right-hand, front
1шт.
11
S241530
INSULATOR
INSULATION - cab, left-hand, rear, Serial Range: -334940
1шт.
11a
N13080
INSULATOR
INSULATION - cab, left-hand, rear, Start Serial: 334940
1шт.
S118468
SEAL
- window glass, bulk, 50 ft (15.24 m) long
1шт.
N6492
GASKET
- window glass, bulk, 50 ft (15.24 m) long
1шт.
Выбрано товаров: 23
