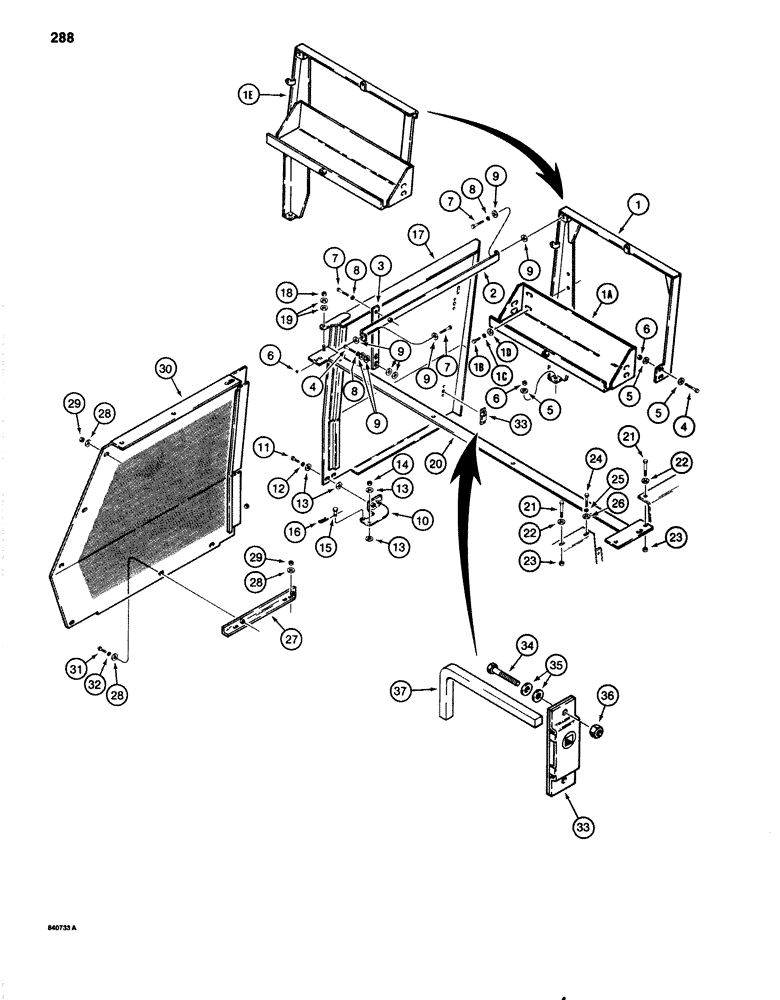

Запчасти Case 1080 (288) - LEFT-HAND SIDE PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

S618527

SUPPORT ASSY.

BRACE - left-hand door, front, accepts bolt-on battery box, if used

1шт.

1a

S516619

BATTERY BOX

BOX - battery, bolt-on type, if used

1шт.

1b

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

1c

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

1d

S95569

WASHER

- flat, 1/2"

2шт.

1e

S618804

BRACE

- left-hand door, front, includes weld-on battery box, if used

1шт.

2

S241833

BRACE

- horizontal, left-hand door

1шт.

3

S241534

BRACE

- vertical, rear left-hand door

1шт.

4

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

5

S95569

WASHER

- flat, hardened, 1/2"

5шт.

6

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

4шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

9

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", plated

9шт.

10

S241540

HINGE

- left-hand door, lower

1шт.

11

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

S95569

WASHER

- flat, hardened, 1/2"

6шт.

14

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

15

S10775

PIN

CLEVIS PIN - door hinge

1шт.

16

S120261

PIN

COTTER PIN - door hinge

1шт.

17

S618041

DOOR ASSY.

DOOR - access, left-hand

1шт.

18

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

1шт.

19

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", plated

2шт.

20

S618242

BRACKET

- cross, left-hand and right-hand side panels

1шт.

21

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8" - 11 NC x 2-1/4", grade 8

2шт.

22

196-25

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, hardened, 5/8", plated

2шт.

23

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

24

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

26

S95569

WASHER

- flat, hardened, 1/2"

1шт.

27

S241521

ANGLE

BRACKET - left-hand rear side, Serial Range: panel-turntable

1шт.

28

S95569

WASHER

- flat, hardened, 1/2"

9шт.

29

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

7шт.

30

S618918

SHROUD

PANEL - side, left-hand rear

1шт.

31

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

33

S110414

LOCK

- left-hand access door

2шт.

34

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

35

195-103

WASHER,5/16"

- flat, , plated 5/16"

1шт.

36

131-461

LOCK NUT,1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC, plated

4шт.

37

S115083

KEY

- lock, access door

1шт.
