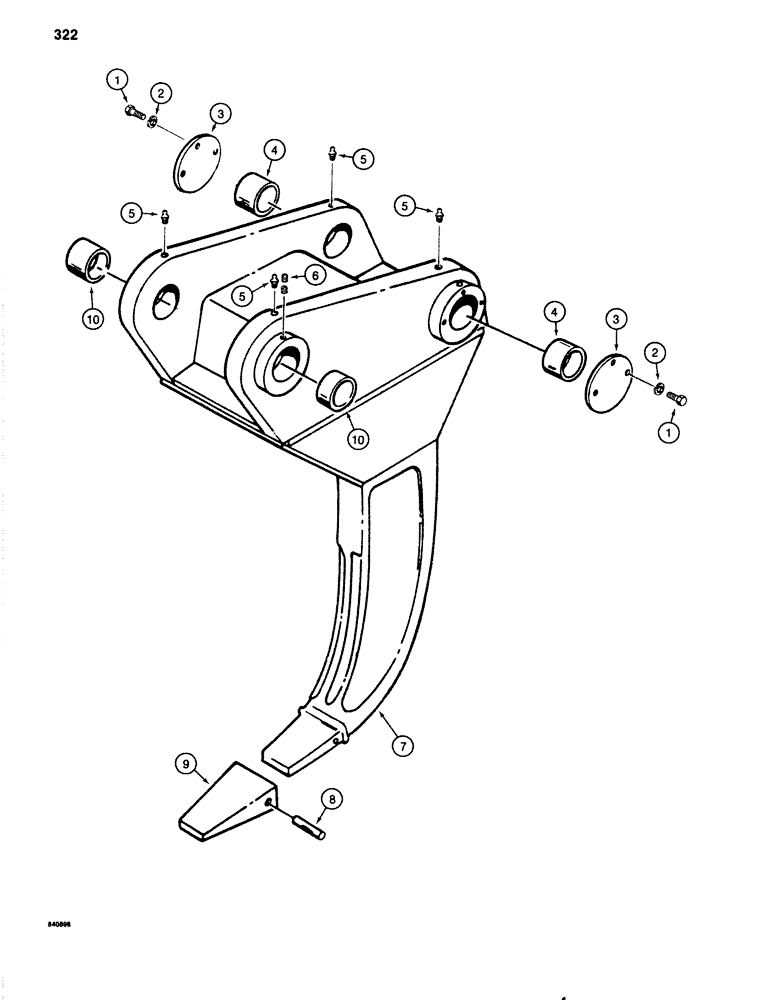

Запчасти Case 1080 (322) - RIPPER TOOTH (84) - BOOMS, DIPPERS & BUCKETS

S618397

RIPPER TOOTH ASSEMBLY - excavator, machinery item, see Fig. 3 for ordering, Includes: Ref.#s1 - 10

1шт.

1

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- hex head, 3/8" - 16 NC x 7/8"

6шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

3

S106642

COVER

- side

2шт.

4

S234928

BUSHING

- at attachment link

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

6

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- 3/8" - 16 NC x 3/8", cone point

8шт.

7

S609798

RIPPER TOOTH - weldment

1шт.

8

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, 1/2" x 3", Slotted

1шт.

9

S25334

POINT

- ripper tooth

1шт.

10

S234482

BUSHING

- at arm

2шт.
